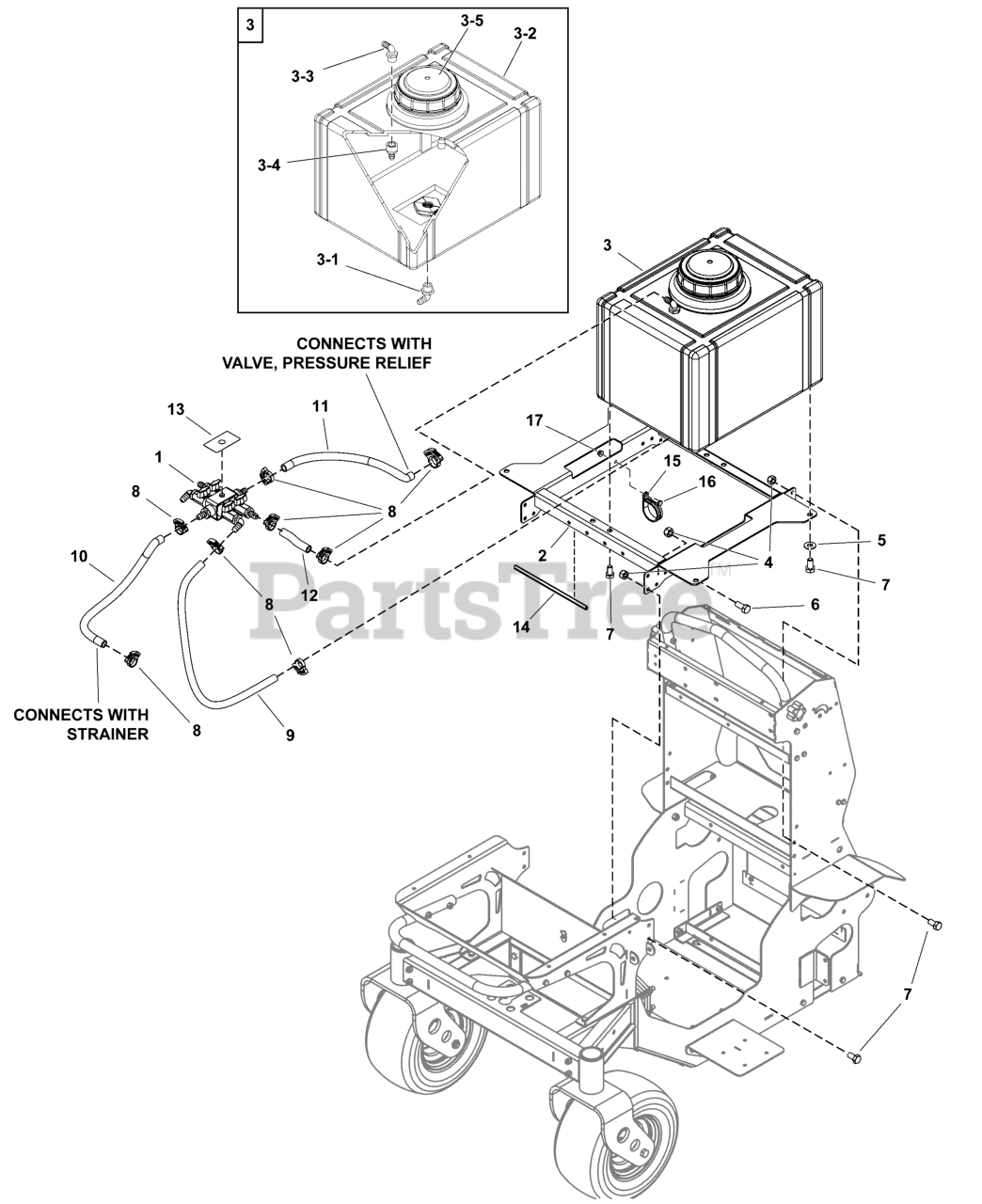

FS 3200 (5901755) - Ferris Venture XC Series Stand-On Spreader Sprayer Tank Group S/N: 30000003685 and Below Parts Diagram

Venture XC Series Stand-On Spreader

Sprayer Tank Group S/N: 30000003685 and Below Parts Diagram

  • Title

1

Refer to: Spray Tank Valve Group

$

$

Not available

2

Ferris 5418359

WELD, SPRAY TANK MOUNT

$437.99

$

Usually ships in 2-12 days

0

3

Ferris 5418422

ASM, SPRAY TANK

$307.99

$

Usually ships in 2-12 days

0

3-1

Ferris 5106667

FITTING, 3/4 MPT - 1/2 BARB, 90 ELBOW

$2.99

$

Usually ships in 2-12 days

0

3-2

TANK, 12 GAL RT W/SUMP HDPE NAT

$

$

Not available

3-3

Ferris 5106665

FITTING, 1/2 MPT - 1/2 BARB, 90 ELBOW

$3.49

$

Usually ships in 2-12 days

0

3-4

Ferris 5106672

FITTING, 1/2 FPT - 1/2 BARB

$2.99

$

Usually ships in 2-12 days

0

3-5

Ferris 5105985

LID, TANK, SPRAY (G0134)

$27.99

$

In Stock, only 2 left!

0

4

Ferris 5105992

NUT-HEX-NYLK, 0.3125"-18 SS188
(Superseded to 5105992FS)

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5106009

WSHR-STL, FLT .343" X .750" X .050" SPC SS188

$3.49

$

Usually ships in 2-12 days

0

6

Ferris 5106024

SCR-CAP, HEX .3125"-18 X .750" SS188

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5106649

SCR-CAP, HEX .3125"-18 X .625" SS188

$2.99

$

Usually ships in 2-12 days

0

8

Ferris 5106655

SNAP GRIP CLAMP .656 - .750 ID

$4.49

$

Usually ships in 2-12 days

0

9

Ferris 5418411

HOSE, TANK SUPPLY, 0.5" ID, 28" LONG

$9.99

$

Usually ships in 2-12 days

0

10

Ferris 5418413

HOSE, FILTER SUPPLY, 0.5" ID, 25" LONG

$9.49

$

Usually ships in 2-12 days

0

11

Ferris 5418414

HOSE, MANIFOLD SUPPLY, 0.5" ID, 14" LONG

$6.49

$

Usually ships in 2-12 days

0

12

Ferris 5418423

HOSE, TANK RETURN, 0.5" ID, 2" LONG

$2.99

$

Usually ships in 2-12 days

0

13

Ferris 5106710

DECAL, SPRAY TANK SUCTION / RETURN LABEL

$12.99

$

Usually ships in 2-12 days

0

14

Ferris 5418427

TRIM FOR CONSOLE, 7 INCH

$4.49

$

Usually ships in 2-12 days

0

15

Ferris 5108486

CLAMP, HARNESS ROUTING, SS

$6.99

$

Usually ships in 2-12 days

0

16

Ferris 5106214

SCR-CAP, HEX .250"-20 X .750" SS188

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5107655

NUT-HEX-NYLK, FLG .250"-20 SS188

$2.49

$

Usually ships in 2-12 days

0
