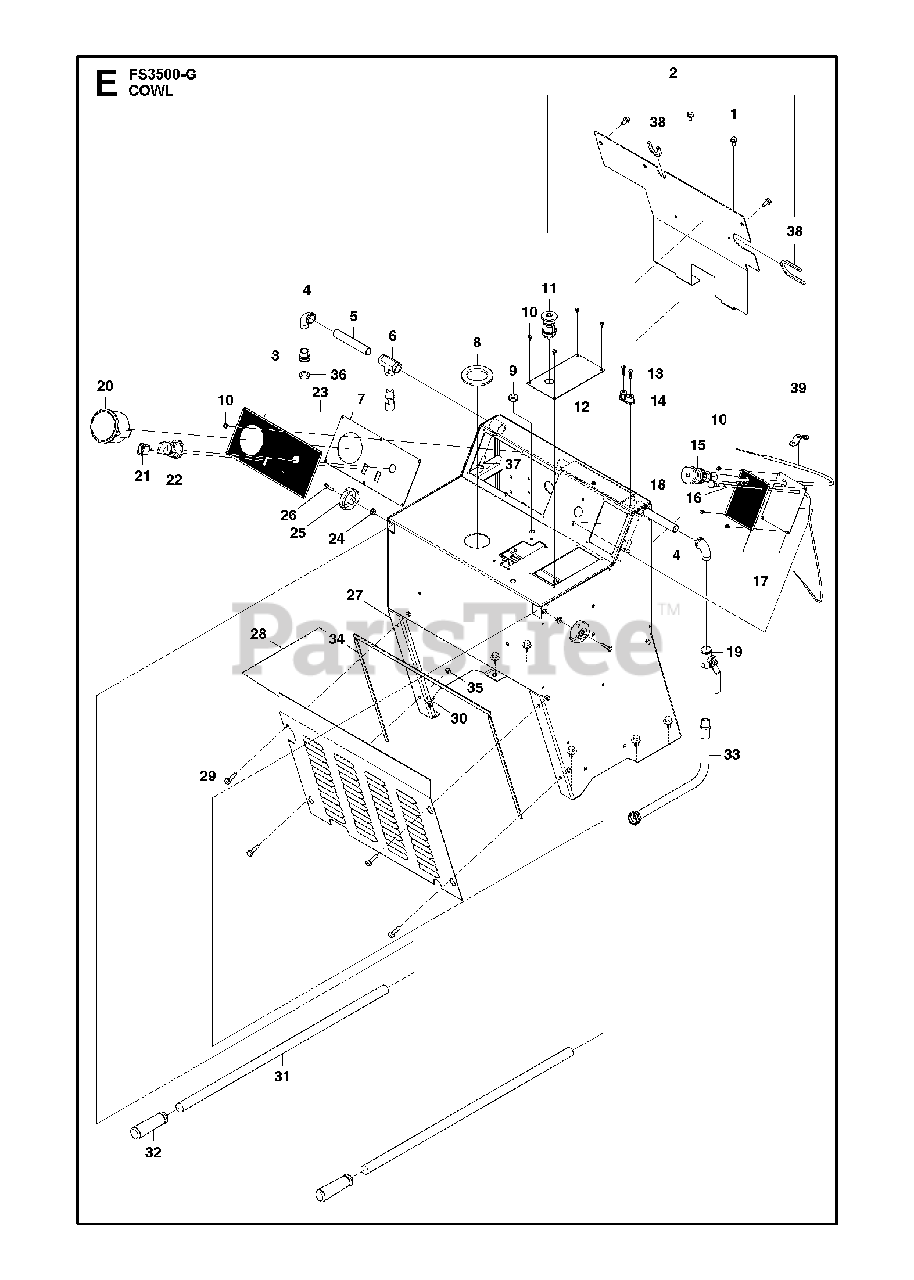

FS 3500 G - Husqvarna Floor Saw (2016-01) COWL Parts Diagram

Floor Saw

COWL Parts Diagram

  • Title

1

Husqvarna Construction 585 97 56-01

SCREW EHHFM

$8.99

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 582231101

TBD

$

$

Not available

3

Husqvarna Construction 539 30 02-69

FITTING

$16.99

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 539 30 02-42

FITTING

$16.99

$

Usually ships in 3-10 days

0

5

Husqvarna Construction 541 20 51-85

PIPE

$8.99

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 542 02 07-30

TEE PIPE

$7.49

$

Usually ships in 3-10 days

0

7

Husqvarna Construction 542 17 87-24

SWITCH

$85.99

$

In Stock, only 1 left!

0

8

Husqvarna Construction 539 30 00-80

GROMMET

$42.99

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 542 18 13-61

GROMMET

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna Construction 542 02 05-87

BOLT

$1.99

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 586 63 78-01

STOP SWITCH

$133.99

$

In Stock, only 1 left!

0

12

Husqvarna Construction 588 63 41-01

PLATE

$

$

Currently unavailable

13

Husqvarna Construction 502 02 35-01

SCREW IHCSFM

$1.99

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 501 85 79-01

CLAMP

$164.99

$

Usually ships in 3-10 days

0

15

Husqvarna Construction 582 06 88-01

CABLE

$197.99

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 542 16 04-09

WIRE

$106.99

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 582230901

TBD

$

$

Not available

18

Husqvarna Construction 542 17 61-85

NIPPLE

$113.99

$

Usually ships in 3-10 days

0

19

Husqvarna Construction 542 04 02-61

BALL

$22.75

$

Usually ships in 3-10 days

0

20

Husqvarna Construction 588 97 68-01

GAUGE

$

$

Currently unavailable

21

Husqvarna Construction 542 16 67-11

SWITCH

$62.99

$

Usually ships in 3-10 days

0

22

Husqvarna Construction 587 68 10-01

IGNITION SWITCH

$101.99

$

In Stock, only 2 left!

0

23

Husqvarna Construction 582231301

TBD

$

$

Not available

24

Husqvarna 504 56 93-01

TURNING KNOB

$17.99

$

Usually ships in 3-10 days

0

25

Husqvarna 731 71 18-51

HEXAGON NUT FLANGE
(Superseded to 532155901)

$

$

Not available

26

Husqvarna Construction 725 24 57-71

SCREW EHHM

$8.99

$

In Stock, only 1 left!

0

27

Husqvarna Construction 501 58 64-01

PANEL

$

$

Currently unavailable

28

Husqvarna Construction 582 23 14-01

SHIELD

$264.99

$

Usually ships in 3-10 days

0

29

Husqvarna Construction 585 97 28-01

SCREW EHHFM

$8.99

$

In Stock, only 3 left!

0

30

Husqvarna Construction 576 65 48-02

SCREW EHHFM

$10.99

$

Usually ships in 3-10 days

0

31

Husqvarna Construction 539 30 03-40

HANDLEBAR

$154.99

$

Usually ships in 3-10 days

0

32

Husqvarna Construction 542 13 95-68

GRIP

$7.49

$

In Stock, only 2 left!

0

33

Husqvarna Construction 542 16 36-56

HOSE

$35.99

$

Usually ships in 3-10 days

0

34

Husqvarna Construction 542 16 32-48

STRIP

$

$

Not available

35

Husqvarna 732 25 18-01

HEXAGON LOCKING NUT
(Superseded to 732211801)

$3.49

$

In Stock, Qty 5

0

36

Husqvarna Construction 542 04 56-40

WASHER

$8.99

$

In Stock, only 2 left!

0

37

Husqvarna Construction 725 24 93-71

SCREW EHHM

$1.99

$

In Stock, only 1 left!

0

39

Husqvarna Construction 521 97 35-78

CLAMP

$3.99

$

Usually ships in 3-10 days

0
