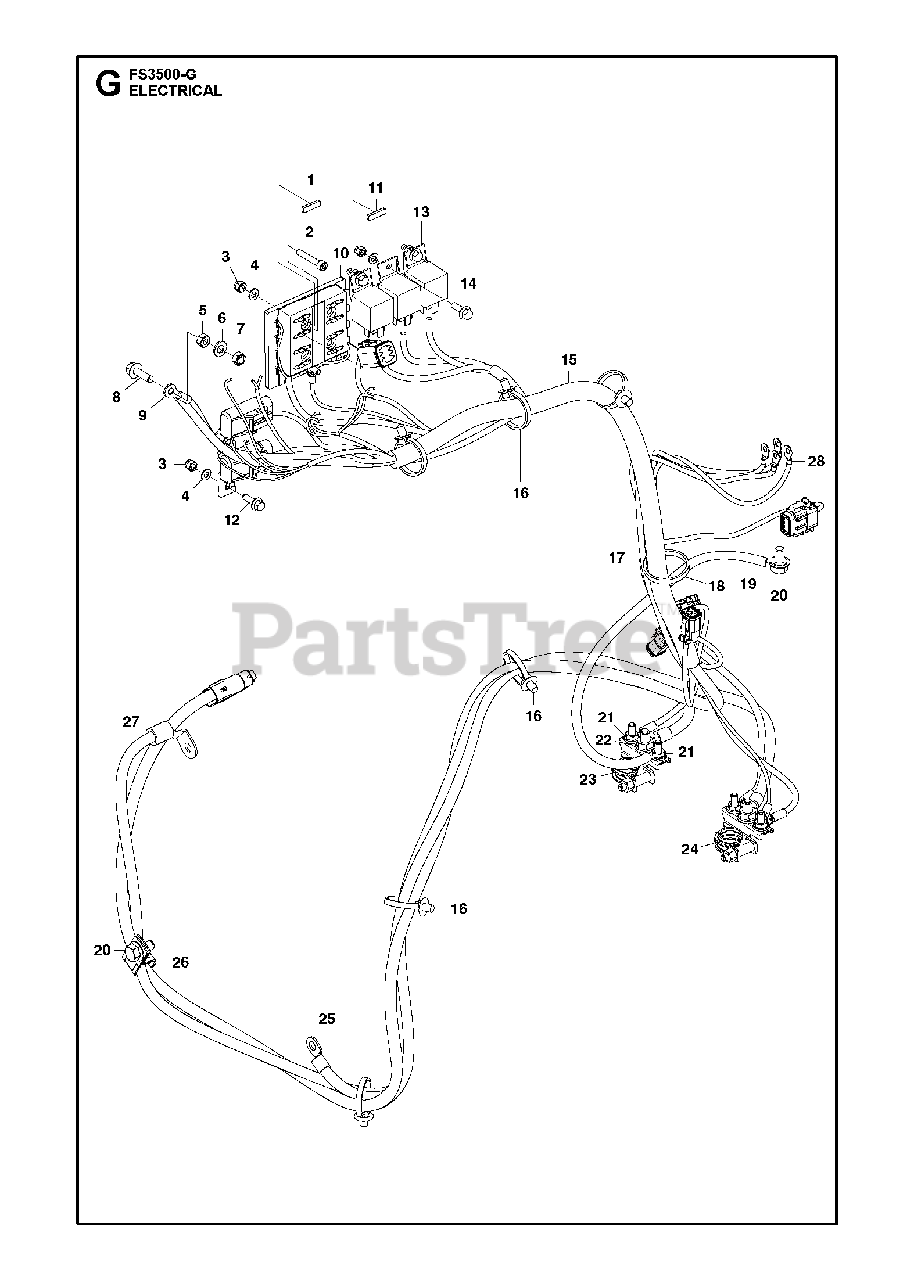

FS 3500 G - Husqvarna Floor Saw (2016-01) ELECTRICAL Parts Diagram

Floor Saw

ELECTRICAL Parts Diagram

  • Title

1

Husqvarna Construction 542 16 68-57

FUSE5A

$3.49

$

Usually ships in 3-10 days

0

2

Husqvarna 725 53 35-01

SCREW IHSCM
(Superseded to 725533555)

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 732 25 14-01

HEXAGON LOCKING NUT

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 734 11 46-01

WASHER
(Superseded to 819070816)

$6.99

$

Usually ships in 3-10 days

0

5

Husqvarna 731 23 16-01

HEXAGON NUT

$6.49

$

In Stock, Qty 18

0

6

Husqvarna 734 11 52-01

WASHER

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 732 25 16-01

HEXAGON LOCKING NUT

$3.49

$

In Stock, only 4 left!

0

8

Husqvarna Construction 586 12 02-01

SCREW EHHFM

$8.99

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 589 28 17-01

CABLEBattery Ground 900 mm

$

$

Currently unavailable

10

Husqvarna Construction 542 16 66-22

BLOCK

$89.99

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 589 28 15-01

FUSE

$

$

Currently unavailable

12

Husqvarna Construction 585 98 05-01

SCREW EHHFM

$6.99

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 542 16 67-08

RELAY

$22.99

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 542 02 05-87

BOLT

$1.99

$

Usually ships in 3-10 days

0

15

Husqvarna Construction 589 28 16-01

HARNESS

$

$

Currently unavailable

16

Husqvarna Construction 583 95 95-01

CLAMP

$1.99

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 542 17 68-38

BATTERY

$

$

Not available

18

Husqvarna Construction 542 16 69-06

TIE WRAP

$3.49

$

Usually ships in 3-10 days

0

19

Husqvarna Construction 589 28 19-01

CABLEBattery Negative 600 mm

$

$

Currently unavailable

20

Husqvarna Construction 585 97 56-01

SCREW EHHFM

$8.99

$

Usually ships in 3-10 days

0

21

Husqvarna 731 71 16-51

HEXAGON NUT FLANGE

$7.49

$

In Stock, only 2 left!

0

22

Husqvarna 731 71 18-51

HEXAGON NUT FLANGE
(Superseded to 532155901)

$

$

Not available

23

Husqvarna Construction 581 33 64-01

ELECTRICAL SYSTEM

$53.99

$

Usually ships in 3-10 days

0

24

Husqvarna Construction 581 33 63-01

ELECTRICAL SYSTEM

$70.99

$

Usually ships in 3-10 days

0

25

Husqvarna Construction 589 28 21-01

CABLEBattery Negative 850 mm

$

$

Currently unavailable

26

Husqvarna Construction 542 19 05-60

CLAMP

$8.99

$

In Stock, only 1 left!

0

27

Husqvarna Construction 539 30 10-13

BATTERY

$

$

Currently unavailable

28

Husqvarna Construction 501 85 91-01

PRIMARY CABLE

$

$

Currently unavailable
