FS 3500 G - Husqvarna Floor Saw (2016-01) HYDRAULIC SYSTEM Parts Diagram

Floor Saw

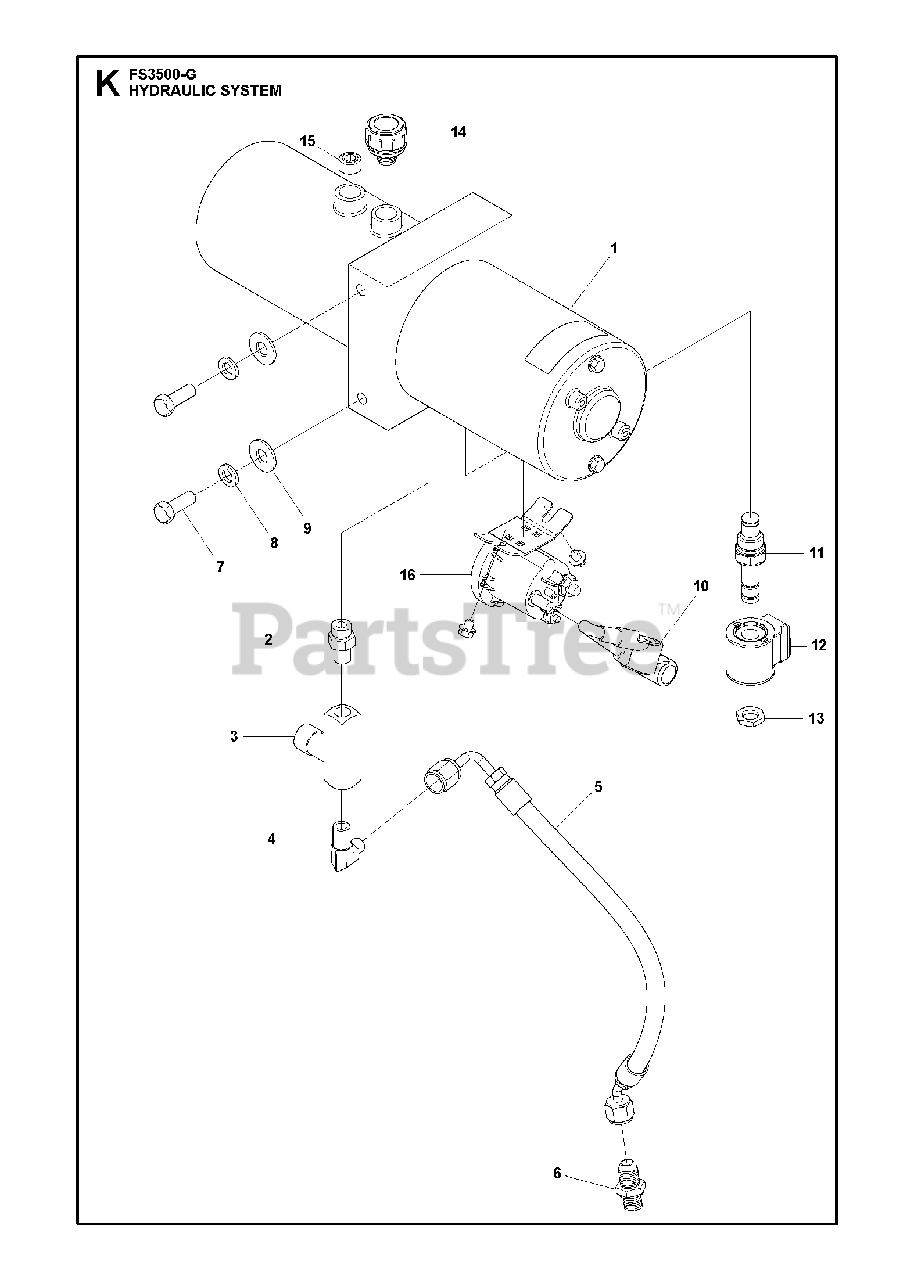

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Husqvarna Construction 501 62 61-01

HYDRAULIC PUMP

$1512.99

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 541 20 49-80

FITTING

$4.67

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 542 20 53-01

VALVE

$188.99

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 541 20 45-85

FITTING

$10.99

$

Usually ships in 3-10 days

0

5

Husqvarna Construction 542 19 17-46

HOSE ASSY

$60.99

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 501 88 21-01

FITTING

$4.67

$

Usually ships in 3-10 days

0

7

Husqvarna 539 99 05-63

SCREW
(Superseded to 596564401)

$4.99

$

In Stock, Qty 6

0

8

Husqvarna 539 99 01-18

WASHER
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 539 99 05-17

WASHER
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

10

Husqvarna Construction 582 22 62-01

HARNESS

$35.99

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 582 22 65-01

VALVE

$177.99

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 522 84 91-10

COIL

$123.99

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 541 20 47-34

FITTING

$7.49

$

In Stock, only 2 left!

0

14

Husqvarna Construction 522 84 91-19

CAP

$39.99

$

Usually ships in 3-10 days

0

15

Husqvarna Construction 575 54 54-02

FITTING

$1.99

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 522 84 91-15

SOLENOID

$265.99

$

Usually ships in 3-10 days

0
