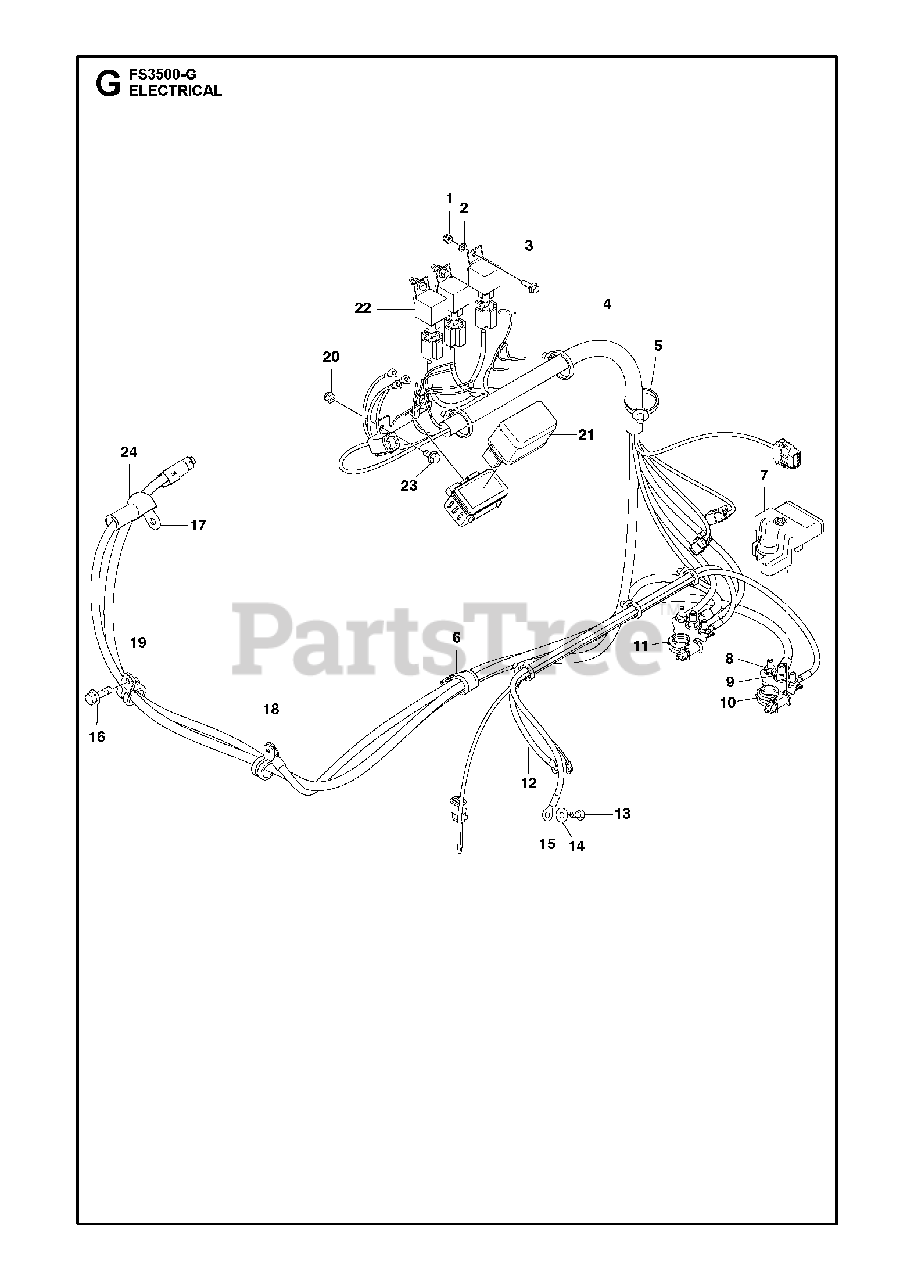

FS 3500 G - Husqvarna Floor Saw (2018-01) ELECTRICAL Parts Diagram

Floor Saw

ELECTRICAL Parts Diagram

  • Title

1

Husqvarna 732 25 14-01

HEXAGON LOCKING NUT

$3.49

$

Usually ships in 3-10 days

0

2

Husqvarna 734 11 46-01

WASHER
(Superseded to 819070816)

$6.99

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 585 98 05-01

SCREW EHHFM

$6.99

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 589 63 90-01

WIRING ASSY

$359.33

$

Usually ships in 3-10 days

0

5

Husqvarna Construction 583 95 95-01

CLAMP

$1.99

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 542 19 05-60

CLAMP

$8.99

$

In Stock, only 1 left!

0

7

Husqvarna Construction 581 33 65-01

ELECTRICAL SYSTEM

$24.99

$

Usually ships in 3-10 days

0

8

Husqvarna 731 71 16-51

HEXAGON NUT FLANGE

$7.49

$

In Stock, only 2 left!

0

9

Husqvarna 731 71 18-51

HEXAGON NUT FLANGE
(Superseded to 532155901)

$

$

Not available

10

Husqvarna Construction 581 33 63-01

ELECTRICAL SYSTEM

$70.99

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 581 33 64-01

ELECTRICAL SYSTEM

$53.99

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 590 78 04-01

CABLE ASSY

$113.99

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 505 62 73-01

BOLT

$8.49

$

Usually ships in 3-10 days

0

14

Husqvarna 539 99 00-55

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0

15

Husqvarna Construction 590 78 05-01

CABLE ASSY

$88.99

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 585 97 56-01

SCREW EHHFM

$8.99

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 539 30 10-13

BATTERY

$

$

Currently unavailable

18

Husqvarna Construction 589 28 21-01

CABLE

$

$

Currently unavailable

19

Husqvarna Construction 588 77 32-01

CLAMP

$

$

Currently unavailable

20

Husqvarna 732 25 16-01

HEXAGON LOCKING NUT

$3.49

$

In Stock, only 4 left!

0

21

Husqvarna Construction 593814901

TBD

$

$

Not available

22

Husqvarna Construction 542 16 67-08

RELAY

$22.99

$

Usually ships in 3-10 days

0

23

Husqvarna Construction 585 97 33-01

SCREW EHHFM

$8.99

$

Usually ships in 3-10 days

0

24

Husqvarna Construction 542 17 70-02

COVER

$6.99

$

Usually ships in 3-10 days

0
