FS 3500 - Husqvarna Floor Saw (2007-10) 30HP Electric Motor, Alternator, Belts Parts Diagram

Floor Saw

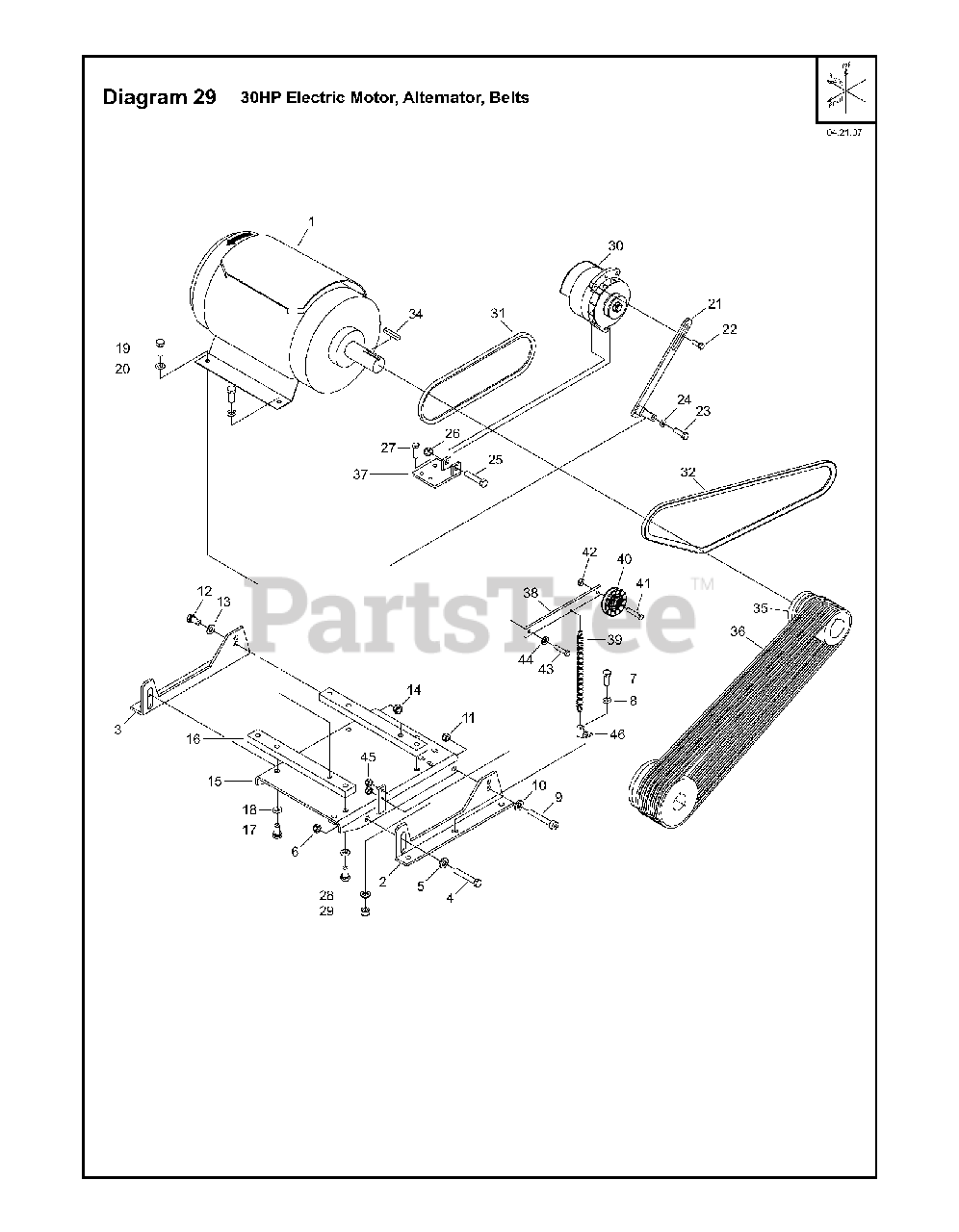

30HP Electric Motor, Alternator, Belts Parts Diagram

  • Title

1

Husqvarna Construction 183335

MOTOR

$6260.92

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 164258

BRACKET. ENGINE BASE LH PTD
(Superseded to 542164258)

$

$

Not available

3

Husqvarna Construction 164256

BRACKET. ENGINE BASE RH. BLACK
(Superseded to 542164256)

$

$

Not available

4

Husqvarna Construction 172306

KIT.HOUSING

$

$

Not available

5

Husqvarna Construction 173042

WASHER
(Superseded to 734117801)

$

$

Not available

6

Husqvarna Construction 139742

LOCKNUT. FIBER M12 DIN 985 Z/P
(Superseded to 732252201)

$1.99

$

In Stock, Qty 5

0

7

Husqvarna Construction 139741

HHCS. M12 x 1.75 x 30 DIN933ZP
(Superseded to 725253671)

$1.99

$

In Stock, only 2 left!

0

8

Husqvarna Construction 20788

LOCKWASHER. SPLIT .5 Z/P

$

$

Not available

9

Husqvarna Construction 167669

SHCS. M12 x 1.75 x 40mm

$1.63

$

Usually ships in 3-10 days

0

10

Husqvarna Construction 173042

WASHER
(Superseded to 734117801)

$

$

Not available

11

Husqvarna Construction 139742

LOCKNUT. FIBER M12 DIN 985 Z/P
(Superseded to 732252201)

$1.99

$

In Stock, Qty 5

0

12

Husqvarna Construction 139741

HHCS. M12 x 1.75 x 30 DIN933ZP
(Superseded to 725253671)

$1.99

$

In Stock, only 2 left!

0

13

Husqvarna Construction 173042

WASHER
(Superseded to 734117801)

$

$

Not available

14

Husqvarna Construction 139742

LOCKNUT. FIBER M12 DIN 985 Z/P
(Superseded to 732252201)

$1.99

$

In Stock, Qty 5

0

15

Husqvarna Construction 167659

BASE. MOTOR-20HP EL METRIC BLK
(Superseded to 917167659)

$

$

Not available

16

Husqvarna Construction 183365

SCREW
(Superseded to 532183365)

$

$

Not available

17

Husqvarna Construction 139751

HHCS. M12 x 1.75 x 25 DIN933ZP
(Superseded to 725253471)

$10.99

$

In Stock, only 2 left!

0

18

Husqvarna Construction 20788

LOCKWASHER. SPLIT .5 Z/P

$

$

Not available

19

Husqvarna Construction 172306

KIT.HOUSING

$

$

Not available

20

Husqvarna Construction 20788

LOCKWASHER. SPLIT .5 Z/P

$

$

Not available

21

Husqvarna Construction 191096

ALTERNATOR BRKT WLDMNT. BLACK

$

$

Not available

22

Husqvarna Construction 178825

FLNGBLT. 5/16-18 X 1 GR5 Z/P

$1.99

$

In Stock, only 4 left!

0

23

Husqvarna Construction 139749

HHCS. M10 x 1.5 x 25 DIN933 ZP
(Superseded to 725249371)

$1.99

$

In Stock, only 1 left!

0

24

Husqvarna Construction 162004

LOCKWASHER. SPLIT M10
(Superseded to 735117301)

$3.49

$

In Stock, Qty 10

0

25

Husqvarna Construction 167431

HHCS. M12 x 1.75 x 65 DIN931ZP

$5.49

$

Usually ships in 3-10 days

0

26

Husqvarna Construction 139742

LOCKNUT. FIBER M12 DIN 985 Z/P
(Superseded to 732252201)

$1.99

$

In Stock, Qty 5

0

27

Husqvarna Construction 167034

HHCS. M10 x 1.5 x 40 DIN933 ZP
(Superseded to 725249971)

$10.99

$

In Stock, only 2 left!

0

28

Husqvarna Construction 173014

WASHER

$

$

Not available

29

Husqvarna Construction 139748

LOCKNUT. FIBER M10 DIN 985
(Superseded to 732252001)

$4.99

$

In Stock, Qty 6

0

30

Husqvarna Construction 117154

ALTERNATOR. 12V 37AMP #YB69

$697.03

$

Usually ships in 3-10 days

0

31

Husqvarna Construction 541 20 10-12

V-BELT

$35.99

$

Usually ships in 3-10 days

0

32

Husqvarna Construction 163681

V-BELT
(Superseded to 523219101)

$48.99

$

Usually ships in 3-10 days

0

34

Husqvarna Construction 20055

KEY. SQ .5 X 2.5" LG.

$

$

Not available

35

Husqvarna Construction 183548

INSERT.LENS.RFLCT.HUSQ
(Superseded to 532183548)

$

$

Not available

--

Husqvarna Construction 20550

SHSS. .3125-18 X .375

$

$

Not available

35

Husqvarna Construction 183463

SKIRT.REAR.21".HI-VAC.BLACK

$8.49

$

Usually ships in 3-10 days

0

--

Husqvarna Construction 20550

SHSS. .3125-18 X .375

$

$

Not available

36

Husqvarna Construction 45399

V-BELT

$

$

Not available

36

Husqvarna Construction 191352

V-BELT
(Superseded to 576449180)

$172.99

$

Usually ships in 3-10 days

0

37

Husqvarna Construction 166186

BRACKET. MTG - ALT BLK
(Superseded to 583020001)

$

$

Not available

38

Husqvarna Construction 164352

IDLER LEVER - PC BLACK
(Superseded to 542164352)

$87.99

$

Usually ships in 3-10 days

0

39

Husqvarna Construction 163260P

IDLER SPRING

$

$

Not available

40

Husqvarna Construction 167763

PULLEY

$25.99

$

Usually ships in 3-10 days

0

--

Husqvarna Construction 167762

BUSHING. PULLEY

$7.49

$

Usually ships in 3-10 days

0

41

Husqvarna Construction 139766

TBD

$

$

Not available

42

Husqvarna Construction 139748

LOCKNUT. FIBER M10 DIN 985
(Superseded to 732252001)

$4.99

$

In Stock, Qty 6

0

43

Husqvarna Construction 139765

TBD

$

$

Not available

44

Husqvarna Construction 173014

WASHER

$

$

Not available

45

Husqvarna Construction 139748

LOCKNUT. FIBER M10 DIN 985
(Superseded to 732252001)

$4.99

$

In Stock, Qty 6

0

46

Husqvarna Construction 163259

DECAL
(Superseded to 583008301)

$

$

Not available
