FS 3500 - Husqvarna Floor Saw (2007-10) Lift Cylinder & Drive Sprocket Parts Diagram

Floor Saw

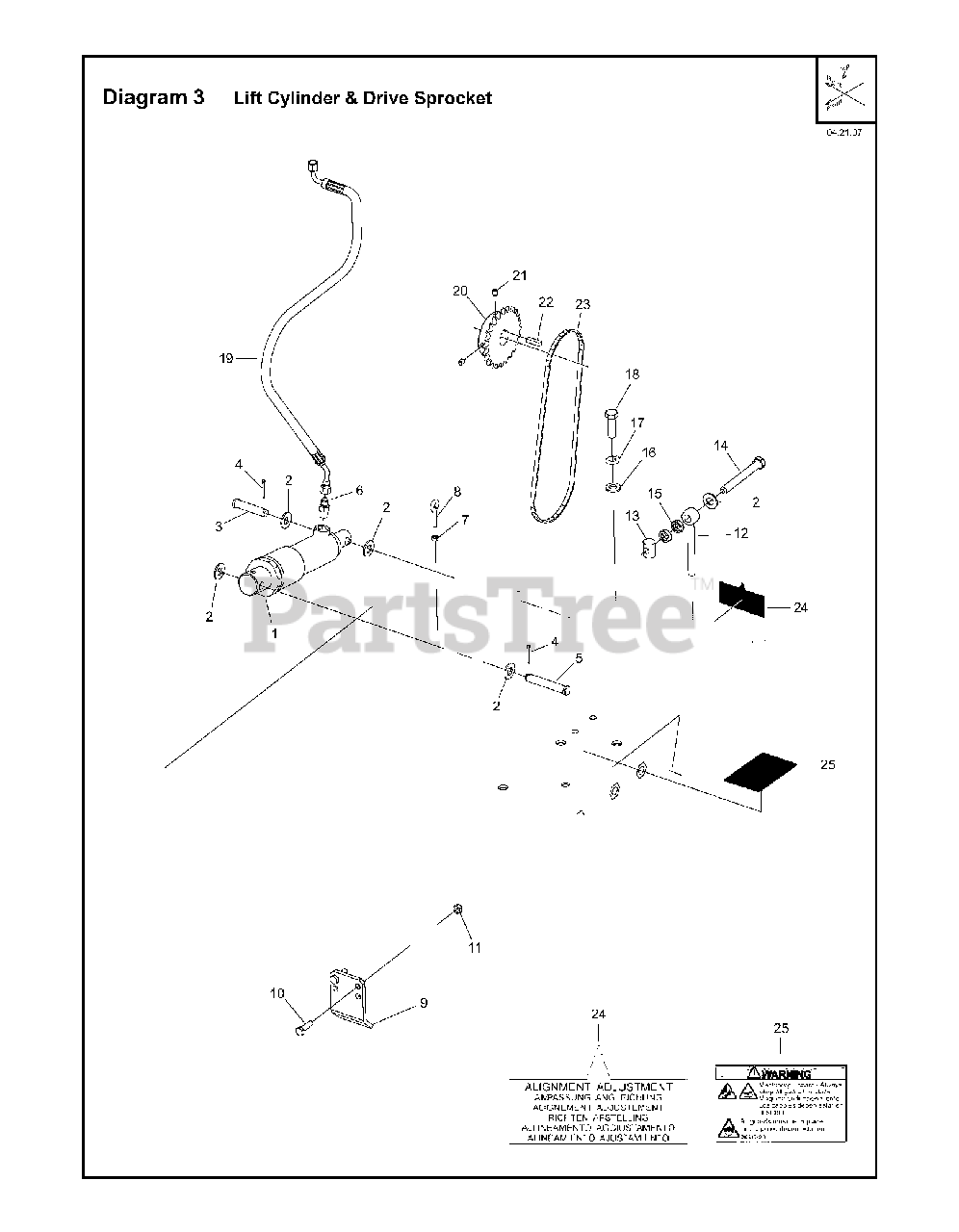

Lift Cylinder & Drive Sprocket Parts Diagram

  • Title

1

Husqvarna Construction 176604

CYLINDER
(Superseded to 542176604)

$

$

Not available

--

Husqvarna Construction 160565

TBD

$

$

Not available

2

Husqvarna Construction 20766

WASHER

$

$

Not available

3

Husqvarna Construction 176699

PIN

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 20614

PIN. COTTER .125 x 1

$

$

Not available

5

Husqvarna Construction 176700

PIN

$8.99

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 541 20 47-91

HYDRAULIC KIT

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna Construction 172017

NUT
(Superseded to 731231601)

$6.49

$

In Stock, Qty 18

0

8

Husqvarna Construction 167449

EYEBOLT. M6x1.0x50mm OAL

$10.99

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 504 09 67-01

BELT GUARD

$95.99

$

Usually ships in 3-10 days

0

10

Husqvarna Construction 139753

WASHER

$0.58

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 139738

LOCKNUT. FIBER M8 DIN 985 Z/P
(Superseded to 732251801)

$4.99

$

In Stock, Qty 6

0

12

Husqvarna Construction 163132

PIN. GUIDE
(Superseded to 583007001)

$14.99

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 167720

SWIVEL. M12 x 1.75.BLACK OR ZP

$74.67

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 167439

HHCS M12x1.75x100 DIN 933ZP

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna Construction 173010

NUT

$6.99

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 173042

WASHER
(Superseded to 734117801)

$

$

Not available

17

Husqvarna Construction 172495

LOCKWASHER. SPLIT M12 DIN 127

$1.99

$

Usually ships in 3-10 days

0

18

Husqvarna Construction 172306

KIT.HOUSING

$

$

Not available

19

Husqvarna Construction 191746

HOSE ASSY

$58.99

$

Usually ships in 3-10 days

0

20

Husqvarna Construction 176605

KIT.HOUSING

$220.99

$

Usually ships in 3-10 days

0

21

Husqvarna Construction 20550

SHSS. .3125-18 X .375

$

$

Not available

22

Husqvarna Construction 20082

KEY. 1/4 Sq. x 1

$

$

Not available

23

Husqvarna Construction 176703

CHAIN. #40 ROLLER 62 PITCHES

$27.99

$

Usually ships in 3-10 days

0

24

Husqvarna Construction 164887

ALIGNMENT ADJ DECAL (DB)

$

$

Not available

25

Husqvarna Construction 176223

DECAL

$10.99

$

In Stock, only 2 left!

0
