FS 3500 - Husqvarna Floor Saw (2007-10) Pointer & Sheave Guard Parts Diagram

Floor Saw

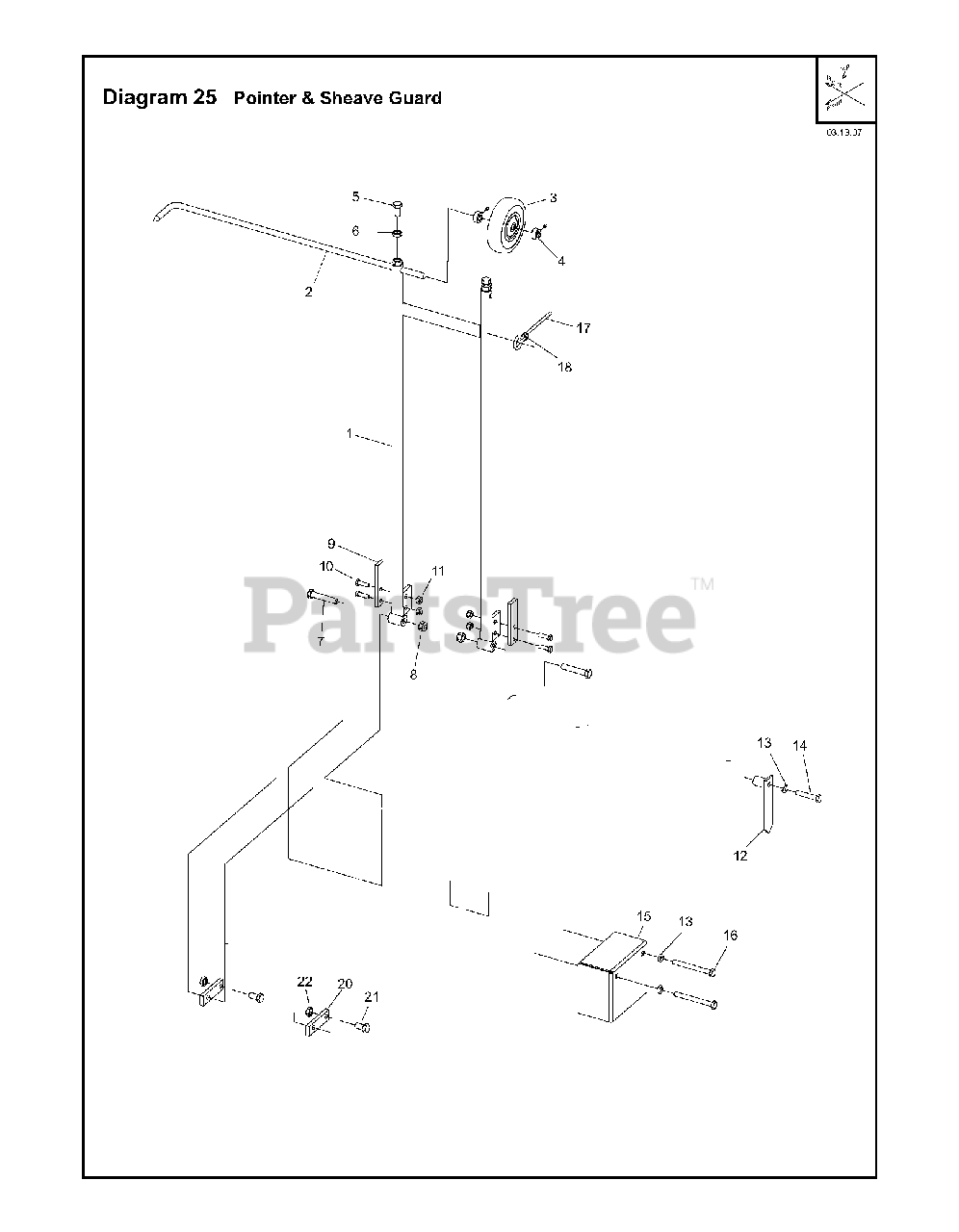

Pointer & Sheave Guard Parts Diagram

  • Title

--

Husqvarna Construction 167453

POINTER ASSY. FRONT. PRO 35
(Superseded to 542167453)

$

$

Not available

1

Husqvarna Construction 541 20 84-99

POINTER

$389.99

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 160196

GUIDE BAR

$70.99

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 163582

WHEEL

$32.99

$

In Stock, only 3 left!

0

4

Husqvarna Construction 539374

TBD

$

$

Not available

5

Husqvarna Construction 139751

HHCS. M12 x 1.75 x 25 DIN933ZP
(Superseded to 725253471)

$10.99

$

In Stock, only 2 left!

0

6

Husqvarna Construction 173010

NUT

$6.99

$

Usually ships in 3-10 days

0

7

Husqvarna Construction 167431

HHCS. M12 x 1.75 x 65 DIN931ZP

$5.49

$

Usually ships in 3-10 days

0

8

Husqvarna Construction 139742

LOCKNUT. FIBER M12 DIN 985 Z/P
(Superseded to 732252201)

$1.99

$

In Stock, only 3 left!

0

9

Husqvarna Construction 501 04 35-01

POINTER

$21.00

$

Usually ships in 3-10 days

0

10

Husqvarna Construction 725 24 51-71

SCREW EHHM

$1.99

$

In Stock, only 4 left!

0

11

Husqvarna 732 25 18-01

HEXAGON LOCKING NUT
(Superseded to 732211801)

$3.49

$

In Stock, Qty 6

0

13

Husqvarna Construction 162004

LOCKWASHER. SPLIT M10
(Superseded to 735117301)

$3.49

$

In Stock, Qty 10

0

14

Husqvarna Construction 164968

HHCS. M10 x 1.5 x 50 DIN933 ZP
(Superseded to 725250171)

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna Construction 541 20 84-53

COVER

$117.99

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 172501

HHCS. M10 x 1.5 x 110 DIN931ZP

$5.49

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 20890

SASH CORD. 1/4 DIA #85 X 1200

$

$

Not available

18

Husqvarna Construction 43203

CLAMP

$

$

Not available

20

Husqvarna Construction 183538

GRILL/LENS.ASM.DL.HUSQ

$

$

Not available

21

Husqvarna Construction 139741

HHCS. M12 x 1.75 x 30 DIN933ZP
(Superseded to 725253671)

$1.99

$

In Stock, only 2 left!

0

22

Husqvarna Construction 173010

NUT

$6.99

$

Usually ships in 3-10 days

0
