FS 3500 - Husqvarna Floor Saw (2007-10) Transmission - Gearbox & Shifter Parts Diagram

Floor Saw

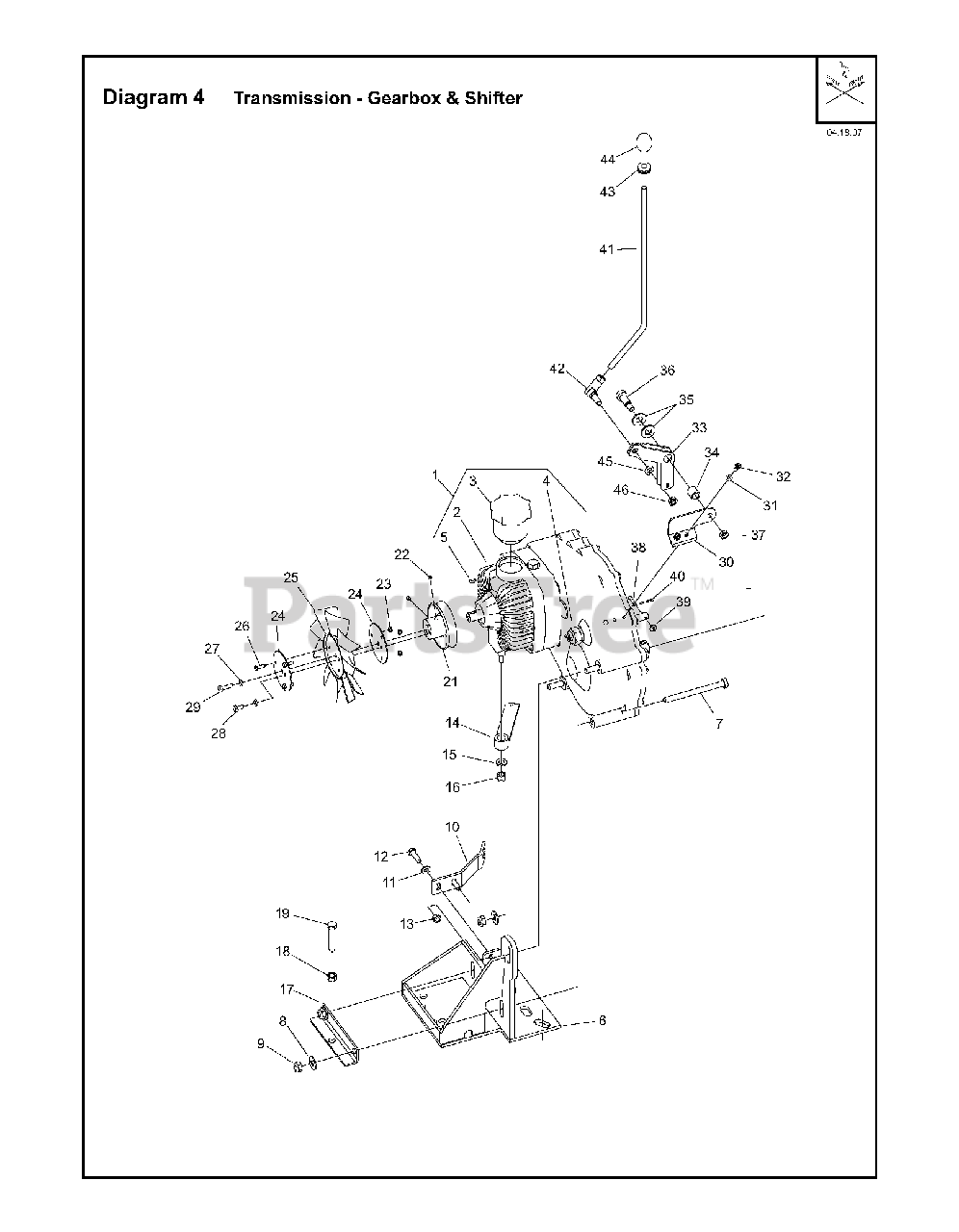

Transmission - Gearbox & Shifter Parts Diagram

  • Title

1

Husqvarna Construction 166553

GEAR BOX ASSY 1-SPEED

$6221.83

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 539 30 06-78

VARIATOR EATON TRANSMIS/

$1635.99

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 542 04 83-26

PLASTIC OIL RESERVOIR/

$171.50

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 542 16 64-47

SWITCH

$

$

Not available

5

Husqvarna Construction 20085

KEY. WOODRUFF (ANSI #404)

$1.67

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 176516

GEARBOX MTG BRACKET - BLACK

$367.50

$

Usually ships in 3-10 days

0

7

Husqvarna Construction 176668

HHCS. M10 x 1.5 x 120 DIN931ZP
(Superseded to 725251551)

$2.28

$

In Stock, only 2 left!

0

8

Husqvarna Construction 20743

WASHER

$

$

Not available

9

Husqvarna Construction 139748

LOCKNUT. FIBER M10 DIN 985
(Superseded to 732252001)

$6.99

$

In Stock, only 3 left!

0

10

Husqvarna Construction 176531

CABLE BRACKET - BLACK

$31.50

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 173059

WASHER
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna Construction 139753

WASHER

$0.58

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 139738

LOCKNUT. FIBER M8 DIN 985 Z/P
(Superseded to 732251801)

$5.99

$

In Stock, Qty 13

0

14

Husqvarna Construction 176533

SPEED CONTROL ARM - BLACK

$144.67

$

Usually ships in 3-10 days

0

15

Husqvarna Construction 173014

WASHER

$

$

Not available

16

Husqvarna Construction 20199

LOCKNUT. FIBER .375-16 Z/P

$

$

Not available

17

Husqvarna Construction 176523

TENSIONING BRACKET - BLACK

$

$

Not available

18

Husqvarna Construction 139750

NUT
(Superseded to 731232001)

$6.49

$

In Stock, Qty 13

0

19

Husqvarna Construction 164968

HHCS. M10 x 1.5 x 50 DIN933 ZP
(Superseded to 725250171)

$

$

Not available

21

Husqvarna Construction 176535

TRANSMISSION PULLEY

$103.83

$

Usually ships in 3-10 days

0

22

Husqvarna Construction 20541

SHSS. .25-20 x .375 CUP HK

$

$

Not available

23

Husqvarna Construction 542 17 23-16

LOCK NUT

$

$

Not available

24

Husqvarna Construction 163040

FAN ATTACHMENT PLATE

$10.50

$

Usually ships in 3-10 days

0

25

Husqvarna Construction 163105

BLADE. PLASTIC FAN

$42.00

$

Usually ships in 3-10 days

0

26

Husqvarna Construction 172315

HHCS. M5 x 0.8 x 16 DIN933 Z/P
(Superseded to 725232971)

$4.99

$

In Stock, Qty 6

0

27

Husqvarna Construction 20776

LOCKWASHER. HI-COLLAR .25

$

$

Not available

28

Husqvarna Construction 21423

HHCS. .25-20 x .5 GR 5 Z/P

$

$

Not available

29

Husqvarna Construction 20381

HHCS. .25-20 x .875 GR 5 Z/P

$

$

Not available

30

Husqvarna Construction 176525

SHIFT PIVOT BRACKET - BLACK

$115.50

$

Usually ships in 3-10 days

0

31

Husqvarna Construction 163689

LOCKWASHER. SPLIT M6
(Superseded to 735115301)

$4.99

$

In Stock, only 1 left!

0

32

Husqvarna Construction 167502

SHCS. LOW M6 X 1.0 X 20MM

$1.28

$

Usually ships in 3-10 days

0

33

Husqvarna Construction 181362

LINK ASSY. SHIFTER
(Superseded to 583110501)

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna Construction 166607

BEARING. BRONZE

$2.33

$

Usually ships in 3-10 days

0

35

Husqvarna Construction 20766

WASHER

$

$

Not available

36

Husqvarna Construction 139022

SHSHS. .375-16 UNC x 1 Z/P

$8.17

$

Usually ships in 3-10 days

0

37

Husqvarna Construction 20168

NUT

$

$

Not available

38

Husqvarna Construction 166601

PIN. CLEVIS .18DIA Z/P

$1.17

$

Usually ships in 3-10 days

0

39

Husqvarna Construction 20739

KNOB

$

$

Not available

40

Husqvarna Construction 20612

PIN. COTTER .0937 x .75 Z/P

$

$

Not available

41

Husqvarna Construction 181359

ROD. SHIFTER - PRO 35III

$180.83

$

Usually ships in 3-10 days

0

42

Husqvarna Construction 166690

BALL JOINT

$

$

Not available

43

Husqvarna Construction 181361

GROMMET

$4.67

$

Usually ships in 3-10 days

0

44

Husqvarna Construction 41427

KNOB

$

$

Not available

45

Husqvarna Construction 20786

LOCKWASHER. SPLIT .375

$

$

Not available

46

Husqvarna Construction 20171

RENNEKROK

$

$

Not available
