FS 5000 - Husqvarna Floor Saw (2015-05) HYDRAULIC SYSTEM Parts Diagram

Floor Saw

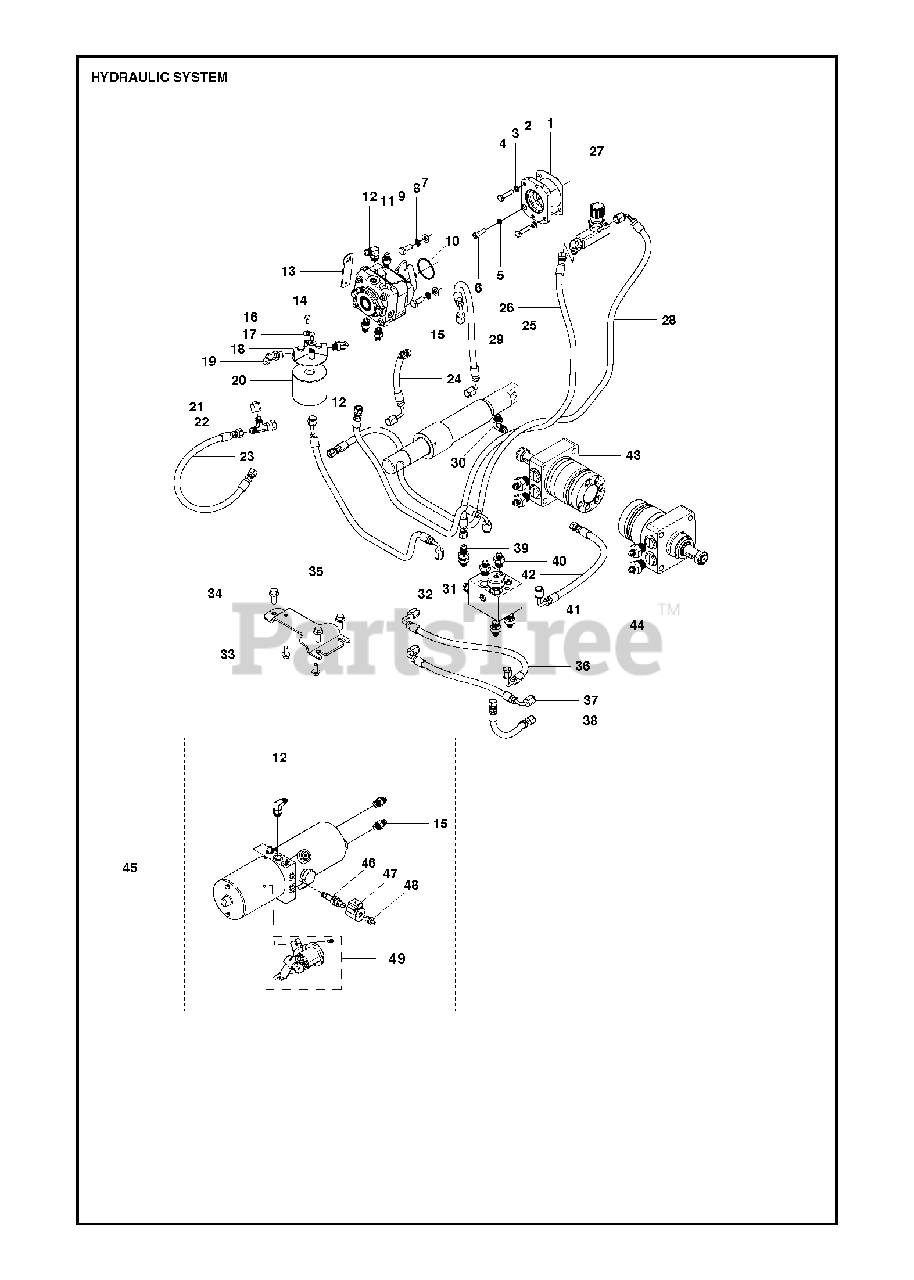

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Husqvarna Construction 542 20 62-11

GASKET

$15.99

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 581 78 77-01

SPACER

$273.99

$

Usually ships in 3-10 days

0

3

Husqvarna 735 11 64-01

SPRING WASHER

$1.99

$

In Stock, Qty 6

0

4

Husqvarna 725 24 57-76

SCREW EHHM

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna Construction 542 02 07-77

WASHER

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 542 18 83-38

SHCS. M8-1.25 X 25

$7.49

$

Usually ships in 3-10 days

0

7

Husqvarna 734 11 72-01

WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

8

Husqvarna Construction 735 11 73-01

SPRING WASHER

$3.49

$

In Stock, Qty 10

0

9

Husqvarna Construction 725 24 93-71

SCREW EHHM

$1.99

$

In Stock, only 1 left!

0

10

Husqvarna Construction 542 20 60-67

O-RING

$10.99

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 581 20 53-02

ADAPTER

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 583 94 72-01

ADAPTER

$8.99

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 580 96 06-01

PLATE

$6.99

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 505 49 32-01

PUMP

$1005.99

$

Usually ships in 3-10 days

0

15

Husqvarna Construction 581 20 53-01

ADAPTER

$8.99

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 542 02 03-01

SCREW

$0.99

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 734 11 54-41

WASHER

$

$

Not available

18

Husqvarna Construction 542 16 64-48

FILTER

$34.99

$

In Stock, only 2 left!

0

19

Husqvarna Construction 583 95 85-01

ADAPTER

$8.49

$

Usually ships in 3-10 days

0

20

Husqvarna Construction 542 16 64-49

FILTER

$55.99

$

In Stock, only 2 left!

0

21

Husqvarna Construction 581 20 60-01

PLUG

$7.00

$

Usually ships in 3-10 days

0

22

Husqvarna Construction 581 20 59-01

ADAPTER

$8.17

$

Usually ships in 3-10 days

0

23

Husqvarna Construction 583 93 95-01

HYDRAULIC HOSE

$36.17

$

Usually ships in 3-10 days

0

24

Husqvarna Construction 583 93 88-01

HYDRAULIC HOSE

$60.99

$

Usually ships in 3-10 days

0

25

Husqvarna Construction 583 93 89-01

HYDRAULIC HOSE

$80.99

$

Usually ships in 3-10 days

0

26

Husqvarna Construction 584 21 69-01

HYDRAULIC HOSE

$67.99

$

Usually ships in 3-10 days

0

27

Husqvarna Construction 586 02 25-01

CONTROL VALVE

$275.99

$

Usually ships in 3-10 days

0

28

Husqvarna Construction 584 21 67-01

HYDRAULIC HOSE

$100.99

$

Usually ships in 3-10 days

0

29

Husqvarna Construction 579 24 63-01

HYDRAULIC CYLINDER

$701.99

$

Usually ships in 3-10 days

0

30

Husqvarna Construction 581 20 54-01

ADAPTER

$17.99

$

Usually ships in 3-10 days

0

31

Husqvarna Construction 583 93 75-01

HYDRAULIC HOSE

$84.99

$

Usually ships in 3-10 days

0

32

Husqvarna Construction 583 93 58-01

HYDRAULIC HOSE

$91.99

$

Usually ships in 3-10 days

0

33

Husqvarna Construction 585 97 54-01

SCREW EHHFM

$8.99

$

In Stock, only 1 left!

0

34

Husqvarna Construction 585 97 31-01

SCREW EHHFM

$1.99

$

Usually ships in 3-10 days

0

35

Husqvarna Construction 580 95 84-01

BRACKET

$51.99

$

Usually ships in 3-10 days

0

36

Husqvarna Construction 584 14 25-01

HYDRAULIC HOSE

$83.99

$

Usually ships in 3-10 days

0

37

Husqvarna Construction 583 97 85-01

HYDRAULIC HOSE

$69.99

$

Usually ships in 3-10 days

0

38

Husqvarna Construction 583 97 61-01

HYDRAULIC HOSE

$69.99

$

Usually ships in 3-10 days

0

39

Husqvarna Construction 581 20 55-01

ADAPTER

$8.99

$

Usually ships in 3-10 days

0

40

Husqvarna Construction 581 20 57-01

ADAPTER

$10.99

$

Usually ships in 3-10 days

0

41

Husqvarna Construction 581 26 77-01

VALVE

$856.99

$

Usually ships in 3-10 days

0

42

Husqvarna Construction 584 14 38-01

HYDRAULIC HOSE

$64.99

$

Usually ships in 3-10 days

0

43

Husqvarna Construction 542 19 88-78

HYDRAULIC MOTOR

$1270.99

$

Usually ships in 3-10 days

0

44

Husqvarna Construction 541 20 49-91

ADAPTER

$17.99

$

Usually ships in 3-10 days

0

45

Husqvarna Construction 581 25 59-01

HYDRAULIC PUMP

$1543.99

$

Usually ships in 3-10 days

0

46

Husqvarna Construction 582 22 65-01

VALVE

$171.99

$

Usually ships in 3-10 days

0

47

Husqvarna Construction 522 84 91-10

COIL

$119.99

$

Usually ships in 3-10 days

0

48

Husqvarna Construction 541 20 47-34

FITTING

$6.99

$

Usually ships in 3-10 days

0

49

Husqvarna Construction 522 84 91-15

SOLENOID

$257.99

$

Usually ships in 3-10 days
