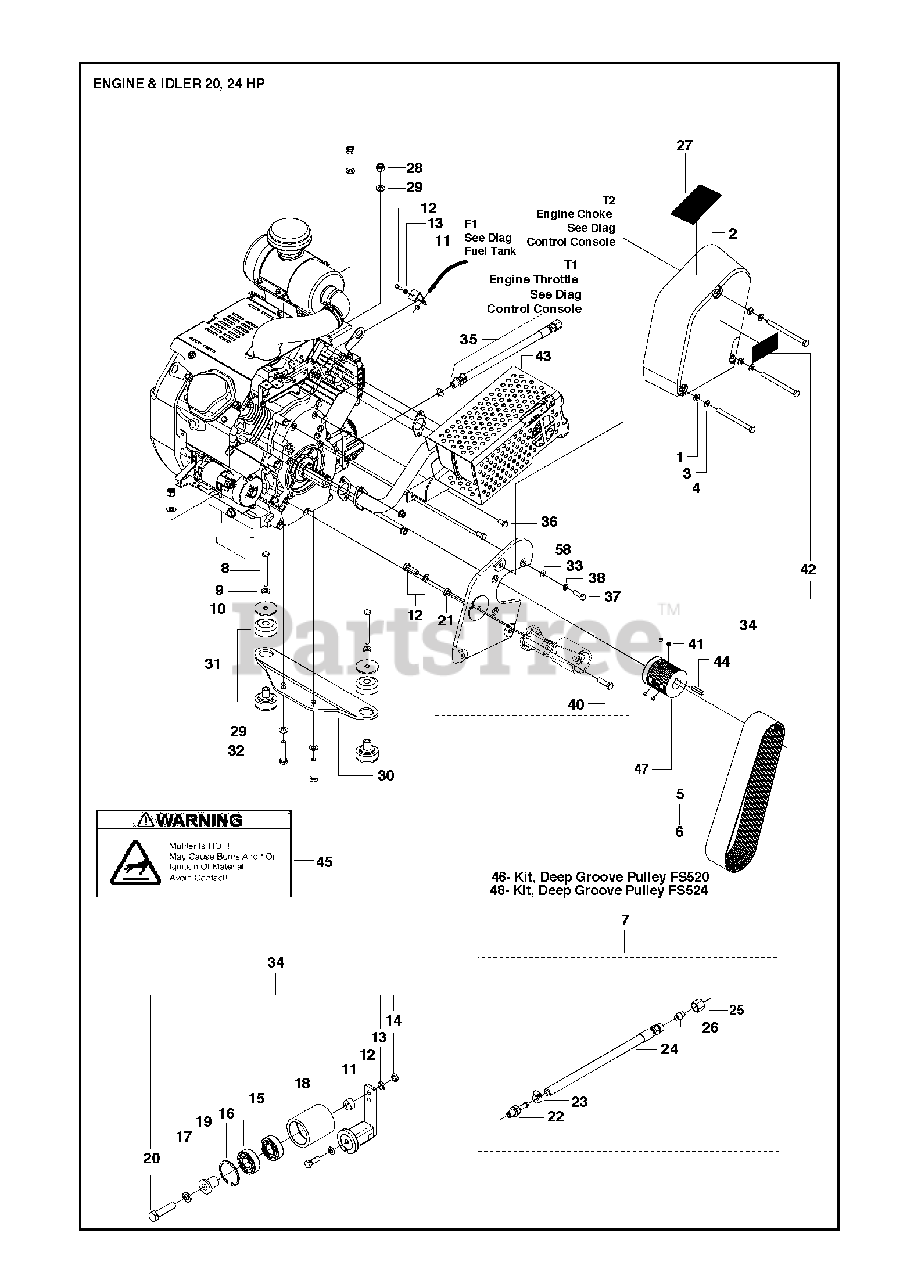

FS 520 (FS 524) - Husqvarna Floor Saw (2007-08) ENGINE & IDLER Parts Diagram

Floor Saw

ENGINE & IDLER Parts Diagram

  • Title

1

Husqvarna 734 11 63-01

WASHER
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

2

Husqvarna Construction 542 20 21-22

BELT GUARD

$57.99

$

In Stock, only 2 left!

0

3

Husqvarna 735 11 64-01

SPRING WASHER

$1.99

$

In Stock, Qty 6

0

4

Husqvarna Construction 725 24 73-51

SCREW EHHM

$1.99

$

Usually ships in 3-10 days

0

5

Husqvarna Construction 542 20 21-49

BELT

$121.99

$

In Stock, only 1 left!

0

6

Husqvarna Construction 504 06 83-01

BELT

$124.99

$

Usually ships in 3-10 days

0

7

Husqvarna Construction 542 20 41-81

OIL DRAIN ASSY

$197.99

$

Usually ships in 3-10 days

0

8

Husqvarna 725 25 05-51

SCREW EHHM

$12.99

$

In Stock, only 2 left!

0

9

Husqvarna Construction 735 11 73-01

SPRING WASHER

$3.49

$

In Stock, Qty 10

0

10

Husqvarna Construction 542 20 21-06

WASHER

$25.99

$

In Stock, only 2 left!

0

11

Husqvarna Construction 586 09 11-01

SPACER

$49.99

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 586 19 59-01

BELT TENSIONER

$213.99

$

In Stock, only 1 left!

0

13

Husqvarna Construction 735 11 78-01

WASHER

$1.99

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 731 43 22-01

HEXAGON THIN NUT

$6.49

$

In Stock, Qty 8

0

15

Husqvarna Construction 542 13 92-73

BALL BEARING

$16.99

$

Usually ships in 3-10 days

0

16

Husqvarna 735 31 40-10

CIRCLIP

$8.99

$

Usually ships in 3-10 days

0

17

Husqvarna 734 11 78-01

WASHER
(Superseded to 596040101)

$3.49

$

In Stock, Qty 16

0

18

Husqvarna Construction 541 20 81-95

SHEAVE

$57.99

$

Usually ships in 3-10 days

0

19

Husqvarna Construction 541 20 81-94

SPACER

$10.99

$

Usually ships in 3-10 days

0

20

Husqvarna 725 25 46-51

SCREW EHHM

$6.99

$

Usually ships in 3-10 days

0

21

Husqvarna 732 21 18-01

LOCK NUT

$3.49

$

In Stock, only 4 left!

0

22

Husqvarna 501 97 13-01

ADAPTER

$9.49

$

Usually ships in 3-10 days

0

23

Husqvarna Construction 539 30 00-72

CLAMP, HOSE, MAH-4 FUEL LINE

$8.99

$

Usually ships in 3-10 days

0

24

Husqvarna Construction 542 20 21-52

HOSE ASSY

$23.99

$

Usually ships in 3-10 days

0

25

Husqvarna Construction 542 16 76-22

NUT

$8.99

$

Usually ships in 3-10 days

0

26

Husqvarna Construction 542 16 73-06

CAP

$22.99

$

Usually ships in 3-10 days

0

27

Husqvarna Construction 542 16 90-65

DECAL

$7.49

$

Usually ships in 3-10 days

0

28

Husqvarna 732 25 20-01

HEXAGON LOCKING NUT

$4.99

$

In Stock, Qty 6

0

29

Husqvarna 734 11 72-01

WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

30

Husqvarna Construction 542 20 41-79

PLATE

$35.99

$

Usually ships in 3-10 days

0

31

Husqvarna Construction 542 16 11-96

ISOLATOR

$41.99

$

In Stock, only 4 left!

0

32

Husqvarna 725 25 01-51

SCREW EHHM

$4.99

$

In Stock, only 4 left!

0

33

Husqvarna 734 11 63-01

WASHER
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

34

Husqvarna Construction 586 30 82-01

BELT

$580.99

$

In Stock, only 1 left!

0

35

Husqvarna Construction 542 20 41-81

OIL DRAIN ASSY

$197.99

$

Usually ships in 3-10 days

0

36

Husqvarna 725 24 49-71

SCREW EHHM
(Superseded to 725244951)

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna Construction 541 20 51-97

BOLT

$1.99

$

Usually ships in 3-10 days

0

38

Husqvarna 735 11 64-01

SPRING WASHER

$1.99

$

In Stock, Qty 6

0

40

Husqvarna Construction 725 54 57-01

SCREW IHSCM

$3.49

$

Usually ships in 3-10 days

0

41

Husqvarna Construction 542 13 97-68

SCREW

$1.99

$

In Stock, Qty 5

0

42

Husqvarna Construction 586 23 93-01

DECAL

$10.99

$

In Stock, only 1 left!

0

43

Husqvarna Construction 521 93 52-01

MUFFLER

$772.99

$

Usually ships in 3-10 days

0

45

Husqvarna Construction 542 16 90-65

DECAL

$7.49

$

Usually ships in 3-10 days

0

44

Husqvarna 539 91 27-57

KEY

$5.49

$

Usually ships in 3-10 days

0

46

Husqvarna Construction 504 80 55-02

REPAIR KIT

$374.50

$

Usually ships in 3-10 days

0

47

Husqvarna Construction 504 73 65-04

PULLEY

$

$

Not available
