FS 520 (FS 524) - Husqvarna Floor Saw (2011-02) ENGINE & IDLER Parts Diagram

Floor Saw

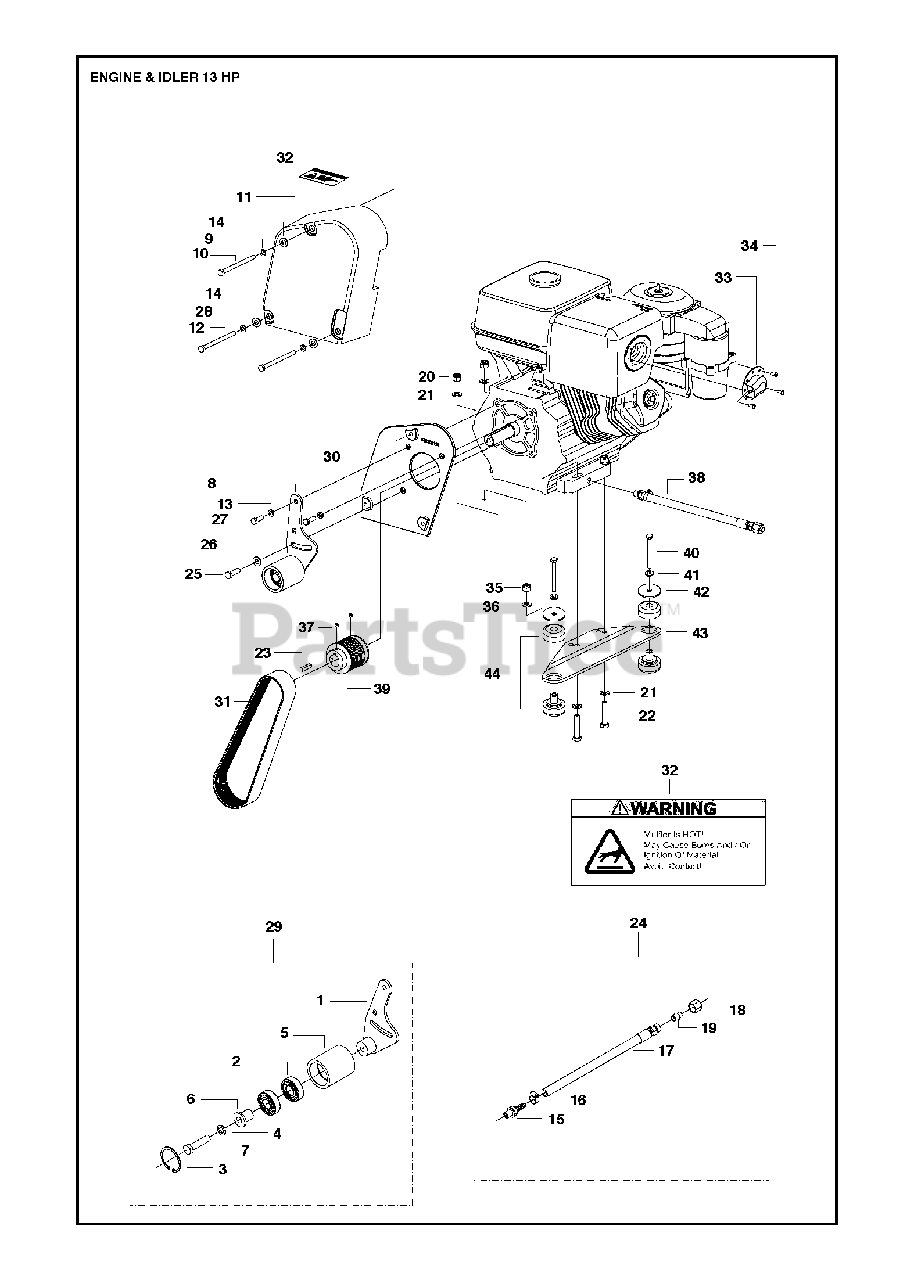

ENGINE & IDLER Parts Diagram

  • Title

1

Husqvarna Construction 541 20 81-90

BRACKET

$34.99

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 542 13 92-73

BALL BEARING

$15.99

$

In Stock, only 4 left!

0

3

Husqvarna 735 31 40-10

CIRCLIP

$8.49

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 735 11 78-01

WASHER

$1.99

$

Usually ships in 3-10 days

0

5

Husqvarna Construction 541 20 81-95

SHEAVE

$55.99

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 541 20 81-94

SPACER

$10.99

$

Usually ships in 3-10 days

0

7

Husqvarna Construction 725 25 42-51

SCREW EHHM

$8.49

$

Usually ships in 3-10 days

0

8

Husqvarna Construction 541 20 81-96

IDLER SHEAVE ASSEMBLY

$817.99

$

Usually ships in 3-10 days

0

9

Husqvarna 735 11 64-01

SPRING WASHER

$1.99

$

In Stock, Qty 6

0

10

Husqvarna Construction 725 24 71-71

BOLT

$11.99

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 542 20 21-22

BELT GUARD

$55.99

$

In Stock, only 2 left!

0

12

Husqvarna Construction 725 24 73-51

SCREW EHHM

$1.99

$

Usually ships in 3-10 days

0

13

Husqvarna 735 11 64-01

SPRING WASHER

$1.99

$

In Stock, Qty 6

0

14

Husqvarna 734 11 63-01

WASHER
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna Construction 542 16 71-33

ADAPTER

$41.99

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 539 30 00-72

CLAMP, HOSE, MAH-4 FUEL LINE

$8.99

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 542 20 21-52

HOSE ASSY

$22.99

$

Usually ships in 3-10 days

0

18

Husqvarna Construction 542 16 76-22

NUT

$8.99

$

Usually ships in 3-10 days

0

19

Husqvarna Construction 542 16 73-06

CAP

$21.99

$

Usually ships in 3-10 days

0

20

Husqvarna 732 25 20-01

HEXAGON LOCKING NUT

$4.99

$

In Stock, Qty 8

0

21

Husqvarna 734 11 72-01

WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

22

Husqvarna 725 25 01-51

SCREW EHHM

$4.99

$

In Stock, Qty 6

0

23

Husqvarna 539 91 27-57

KEY

$5.49

$

Usually ships in 3-10 days

0

24

Husqvarna Construction 542 20 21-51

OIL DRAIN ASSY

$32.99

$

In Stock, only 2 left!

0

25

Husqvarna 539 97 69-41

SCREW

$4.99

$

In Stock, only 1 left!

0

26

Husqvarna Construction 543 04 47-32

WASHER

$6.99

$

In Stock, Qty 10

0

27

Husqvarna Construction 541 20 51-97

BOLT

$1.99

$

Usually ships in 3-10 days

0

28

Husqvarna 735 11 64-01

SPRING WASHER

$1.99

$

In Stock, Qty 6

0

29

Husqvarna Construction 541 20 81-96

IDLER SHEAVE ASSEMBLY

$817.99

$

Usually ships in 3-10 days

0

30

Husqvarna Construction 542 20 41-80

BELT GRD PLATE TRIM-PC H.GREY

$78.99

$

Usually ships in 3-10 days

0

31

Husqvarna Construction 542 20 21-50

BELT

$98.99

$

Usually ships in 3-10 days

0

32

Husqvarna Construction 542 16 90-65

DECAL

$6.99

$

Usually ships in 3-10 days

0

33

Husqvarna Construction 543 04 78-41

EXHAUST

$12.99

$

In Stock, only 2 left!

0

34

Husqvarna Construction 541 20 09-86

DEFLECTOR

$27.13

$

Usually ships in 3-10 days

0

35

Husqvarna 732 25 20-01

HEXAGON LOCKING NUT

$4.99

$

In Stock, Qty 8

0

36

Husqvarna 734 11 72-01

WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

37

Husqvarna Construction 542 13 97-68

SCREW

$1.99

$

In Stock, only 2 left!

0

38

Husqvarna Construction 542 20 21-51

OIL DRAIN ASSY

$32.99

$

In Stock, only 2 left!

0

39

Husqvarna Construction 542 20 22-38

SHEAVE PK.67MM.25.4MM.12G.B/O

$117.99

$

Usually ships in 3-10 days

0

40

Husqvarna 725 25 05-51

SCREW EHHM

$11.99

$

In Stock, only 2 left!

0

41

Husqvarna Construction 735 11 73-01

SPRING WASHER

$3.49

$

In Stock, Qty 10

0

42

Husqvarna Construction 542 20 21-06

WASHER

$24.99

$

In Stock, only 2 left!

0

43

Husqvarna Construction 542 20 41-79

PLATE

$34.99

$

Usually ships in 3-10 days

0

44

Husqvarna Construction 542 16 11-96

ISOLATOR

$39.99

$

In Stock, only 4 left!
