FS 5250 (5901756) - Ferris Voyager Series Stand-On Spreader Transmission Group Parts Diagram

Voyager Series Stand-On Spreader

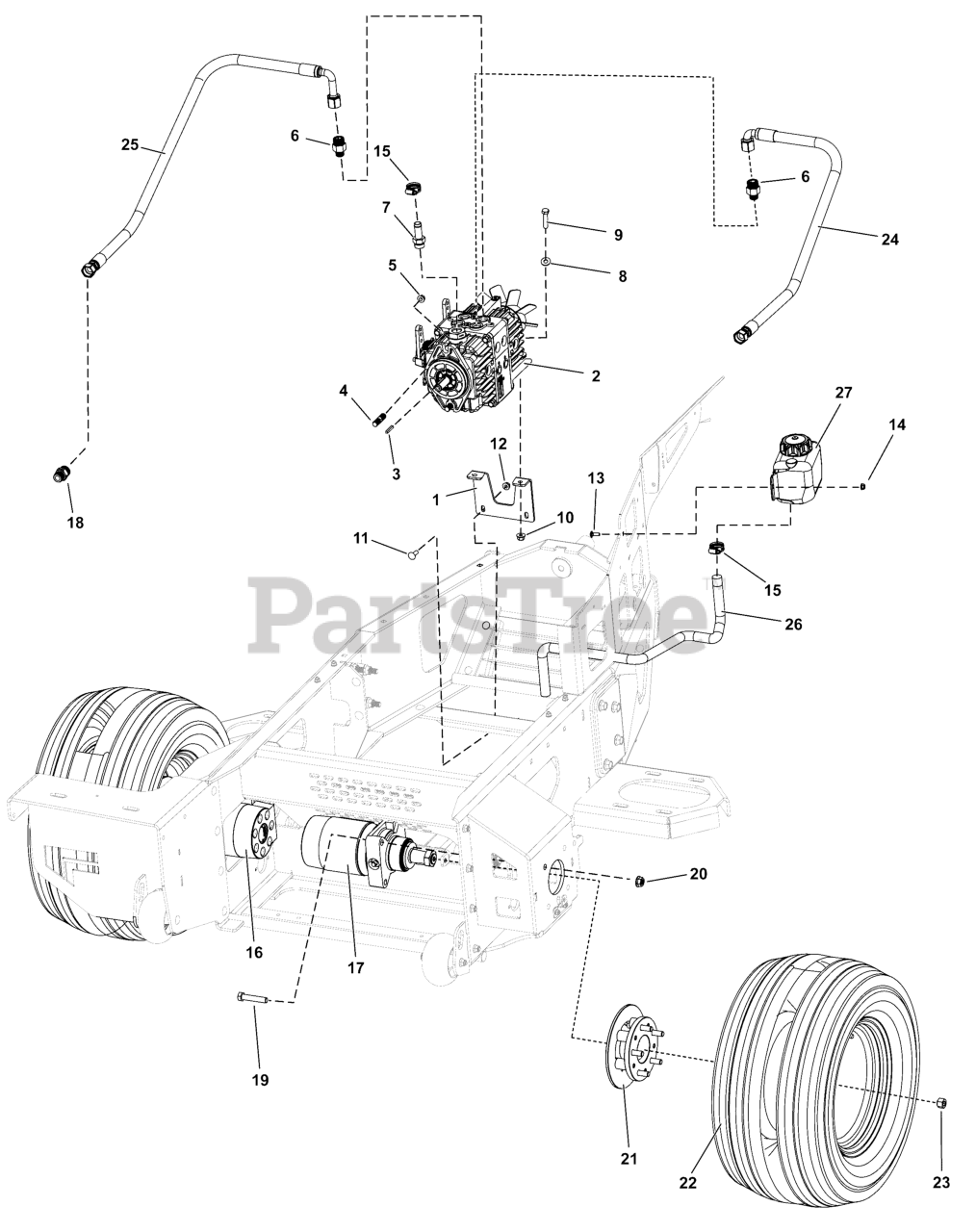

Transmission Group Parts Diagram

  • Title

1

Ferris 5420324

BRACKET, PARKER HP2 PUMP

$49.99

$

Usually ships in 2-12 days

0

2

Ferris 5107628

PUMP, TANDEM PARKER HP2

$2163.99

$

Usually ships in 2-12 days

0

3

Ferris 5108837

KEY 3/16" SQ X 1 1/4"

$3.99

$

Usually ships in 2-12 days

0

4

Ferris 5107695

STUD, SETUP .500"-13 X .750", 1.875" OAL

$23.99

$

Usually ships in 2-12 days

0

5

Ferris 5107637

NUT-HEX-NYLK, FLG .500"-13 SS188

$10.99

$

Usually ships in 2-12 days

0

6

Ferris 5108202

ADP-HYD, STR 8 MORB - 10 MORFS

$24.99

$

Usually ships in 2-12 days

0

7

Ferris 5108323

FTG-HYD, STR 10 HB X 10 MORB

$13.99

$

Usually ships in 2-12 days

0

8

Ferris 5107661

WSHR-SS, FLT .438"X 1.000"X.083" USS

$2.49

$

Usually ships in 2-12 days

0

9

Ferris 5106518

SCR-CAP, HEX .375"-16 X 1.7500" SS188

$2.99

$

Usually ships in 2-12 days

0

10

Ferris 5107638

NUT-HEX-NYLK, FLG .375"-16 SS188

$3.99

$

Usually ships in 2-12 days

0

11

Ferris 5107645

BLT-RDHDSQNK, .3125"-18 X 1.000" SS188

$2.49

$

Usually ships in 2-12 days

0

12

Ferris 5107653

NUT-HEX-NYLK, FLG .3125"-18 SS188

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5108774

BLT-RDHDSQNK .250"-20 X .750" SS188

$2.49

$

Usually ships in 2-12 days

0

14

Ferris 5107655

NUT-HEX-NYLK, FLG .250"-20 SS188

$2.49

$

Usually ships in 2-12 days

0

15

Ferris 5108877

CLAMP, HOSE, WORM GEAR, 11/16" TO 1-1/4"

$4.99

$

Usually ships in 2-12 days

0

16

Ferris 5107623

TG0475UB081AAAC LH WHEEL MOTOR

$1215.99

$

Usually ships in 2-12 days

0

17

Ferris 5107622

TG0475UB080AAVH RH WHEEL MOTOR

$1185.99

$

Usually ships in 2-12 days

0

18

Ferris 5108267

ADP-HYD, STR 10 MORB - 10 MORFS

$21.99

$

Usually ships in 2-12 days

0

19

Ferris 5108353

SCR-CAP, HEX .500'-13 X 2.500" G8 YZ

$2.49

$

Usually ships in 2-12 days

0

20

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 14

0

21

Ferris 5418910

ASM, WHEEL HUB

$486.99

$

Usually ships in 2-12 days

0

22

Ferris 5108505

WHEEL/TIRE 24X12-12 GRASSMASTER

$326.99

$

Usually ships in 2-12 days

0

23

Ferris 5105964

NUT-LUG, .500"-20 ZP

$3.49

$

Usually ships in 2-12 days

0

24

Ferris 5108316

HOSE, HYDRAULIC ASSY 33.5 SHORT 90

$150.99

$

Usually ships in 2-12 days

0

25

Ferris 5108317

HOSE, HYDRAULIC ASSY 35.0 LONG 90

$150.99

$

Usually ships in 2-12 days

0

26

Ferris 5420070

HOSE, HYD EXPANSION .625" X 26.5"

$45.99

$

Usually ships in 2-12 days

0

27

Ferris 5108463

TANK, EXP. 1 QUART W/ 5/8" STR FITTING

$103.99

$

Usually ships in 2-12 days

0
