FS 6600 D - Husqvarna Floor Saw (2008-37) Upper Frame Parts Diagram

Floor Saw

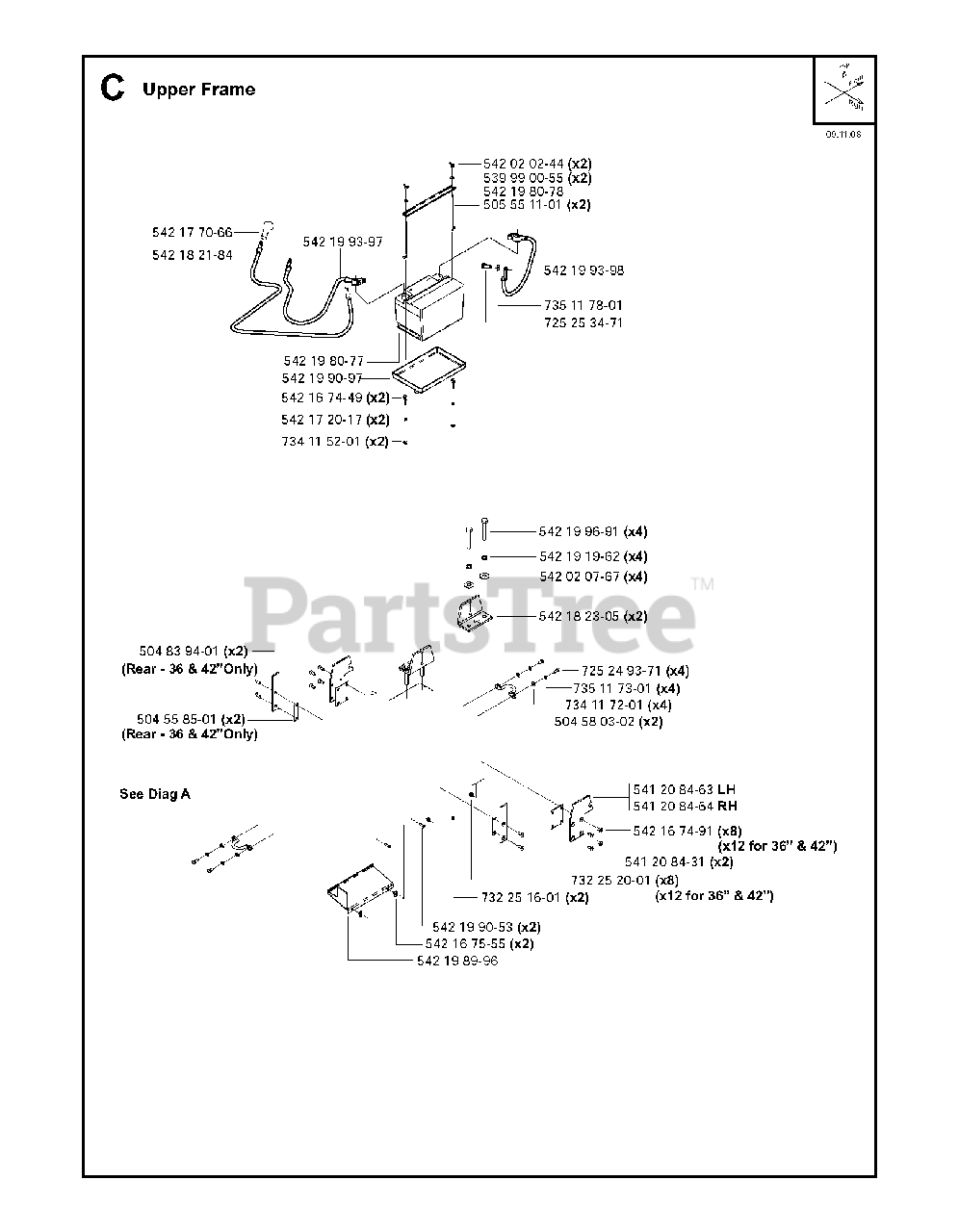

Upper Frame Parts Diagram

  • Title

542 18 23-05

Husqvarna Construction 542 18 23-05

BRACKET

$38.50

$

Usually ships in 3-10 days

0

542 02 07-67

Husqvarna Construction 542 02 07-67

SCHEIBE FLAT 5/8 SAE

$

$

Not available

542 19 19-62

Husqvarna Construction 542 19 19-62

WASHER

$6.99

$

In Stock, Qty 8

0

542 19 96-91

Husqvarna Construction 542 19 96-91

SCREW

$31.99

$

In Stock, only 2 left!

0

542 02 02-44

Husqvarna Construction 542 02 02-44

NUT

$3.49

$

In Stock, only 2 left!

0

539 99 00-55

Husqvarna 539 99 00-55

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0

505 55 11-01

Husqvarna Construction 505 55 11-01

BOLT

$11.67

$

Usually ships in 3-10 days

0

542 19 80-77

Husqvarna Construction 542 19 80-77

BATTERIE 48

$

$

Not available

542 19 90-97

Husqvarna Construction 542 19 90-97

BATTERY SYSTEM

$45.38

$

Usually ships in 3-10 days

0

542 19 80-78

Husqvarna Construction 542 19 80-78

BATTERY SYSTEM

$83.99

$

Usually ships in 3-10 days

0

542 16 74-49

Husqvarna Construction 542 16 74-49

EYE BOLT

$10.99

$

Usually ships in 3-10 days

0

542 17 20-17

Husqvarna Construction 542 17 20-17

NUT

$6.49

$

In Stock, Qty 17

0

734 11 52-01

Husqvarna 734 11 52-01

WASHER

$4.99

$

In Stock, only 2 left!

0

541 20 84-31

Husqvarna Construction 541 20 84-31

SPACER

$22.99

$

Usually ships in 3-10 days

0

541 20 84-63

Husqvarna Construction 541 20 84-63

PLATE

$74.99

$

Usually ships in 3-10 days

0

541 20 84-64

Husqvarna Construction 541 20 84-64

BRACKET

$74.99

$

Usually ships in 3-10 days

0

542 16 74-91

Husqvarna Construction 542 16 74-91

SCREW

$

$

Not available

732 25 20-01

Husqvarna 732 25 20-01

HEXAGON LOCKING NUT

$4.99

$

In Stock, Qty 6

0

732 25 16-01

Husqvarna 732 25 16-01

HEXAGON LOCKING NUT

$3.49

$

In Stock, only 4 left!

0

542 19 90-53

Husqvarna Construction 542 19 90-53

SCREW

$6.99

$

In Stock, only 3 left!

0

542 19 89-96

Husqvarna Construction 542 19 89-96

SHIELD

$143.99

$

Usually ships in 3-10 days

0

542 16 75-55

Husqvarna Construction 542 16 75-55

NUT

$3.49

$

Usually ships in 3-10 days

0

504 58 03-02

Husqvarna Construction 504 58 03-02

LOOP

$10.99

$

Usually ships in 3-10 days

0

734 11 72-01

Husqvarna 734 11 72-01

WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

735 11 73-01

Husqvarna Construction 735 11 73-01

SPRING WASHER

$3.49

$

In Stock, Qty 10

0

725 24 93-71

Husqvarna Construction 725 24 93-71

SCREW EHHM

$1.99

$

In Stock, only 1 left!

0

542 19 93-98

Husqvarna Construction 542 19 93-98

CABLE ASSY

$51.99

$

Usually ships in 3-10 days

0

735 11 78-01

Husqvarna Construction 735 11 78-01

WASHER

$1.99

$

Usually ships in 3-10 days

0

725 25 34-71

Husqvarna Construction 725 25 34-71

SCREW EHHM

$10.99

$

In Stock, only 2 left!

0

542 19 93-97

Husqvarna Construction 542 19 93-97

CABLE ASSY

$50.99

$

Usually ships in 3-10 days

0

542 18 21-84

Husqvarna Construction 542 18 21-84

CABLE

$41.99

$

Usually ships in 3-10 days

0

542 17 70-66

Husqvarna Construction 542 17 70-66

COVER

$6.99

$

Usually ships in 3-10 days

0

504 55 85-01

Husqvarna Construction 504 55 85-01

SPACER

$

$

Not available

504 83 94-01

Husqvarna Construction 504 83 94-01

SPADE

$100.99

$

Usually ships in 3-10 days

0
