FS 6600 JD T3 - Husqvarna Floor Saw (2009-20) Front Pointer & Rope Guide Parts Diagram

Floor Saw

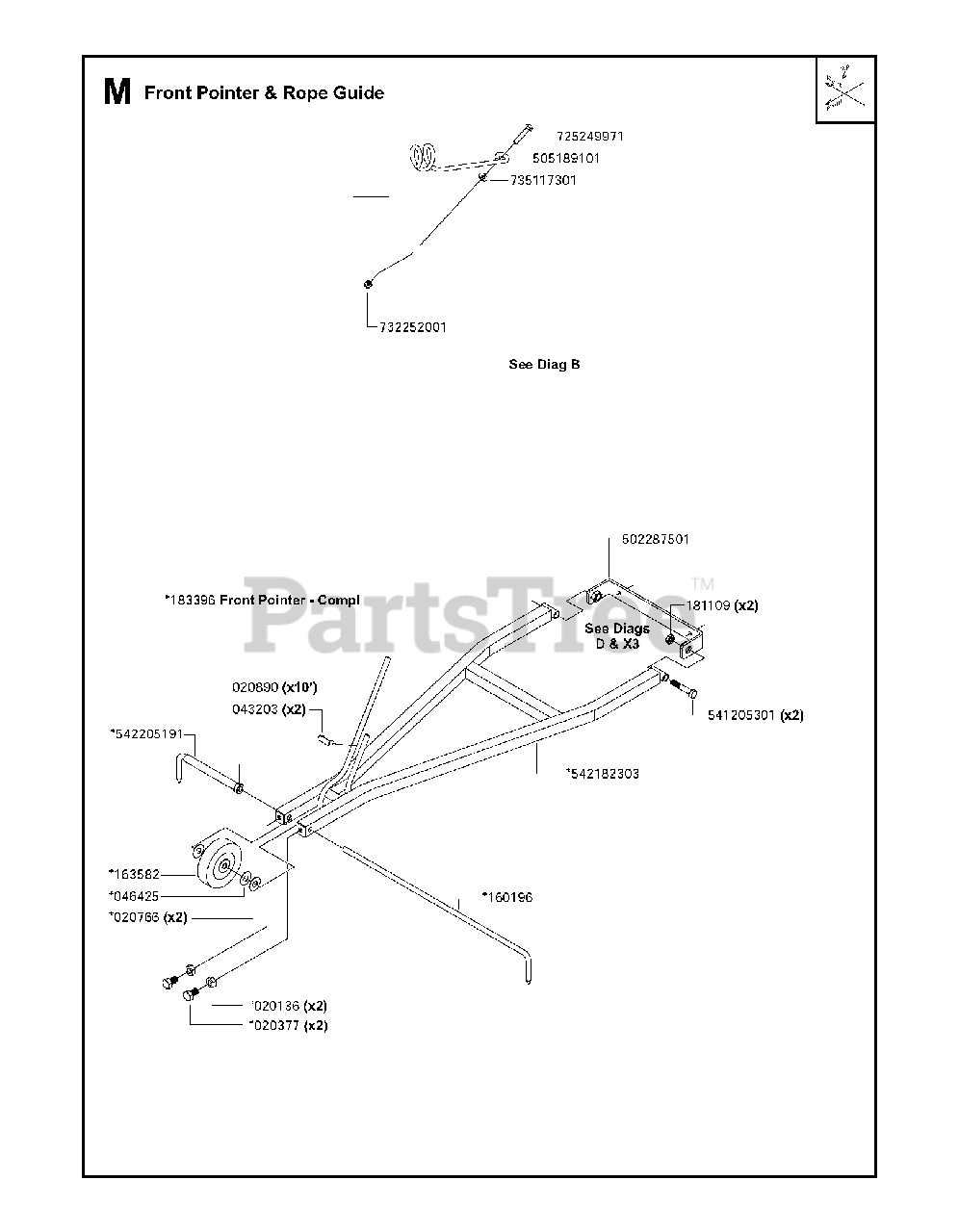

Front Pointer & Rope Guide Parts Diagram

  • Title

046425

Husqvarna Construction 46425

LOCKWASHER. SPRING

$

$

Not available

163582

Husqvarna Construction 163582

WHEEL

$32.99

$

In Stock, only 3 left!

0

020136

Husqvarna Construction 20136

MESSER KOPF

$10.00

$

Usually ships in 3-10 days

0

020377

Husqvarna Construction 20377

HHCS. .375-16 x 1.5 GR 5 Z/P

$

$

Not available

043203

Husqvarna Construction 43203

CLAMP

$

$

Not available

020890

Husqvarna Construction 20890

SASH CORD. 1/4 DIA #85 X 1200

$

$

Not available

542182303

Husqvarna Construction 542 18 23-03

POINTER

$435.99

$

Usually ships in 3-10 days

0

541205301

Husqvarna Construction 541 20 53-01

SCREW

$6.99

$

Usually ships in 3-10 days

0

502287501

Husqvarna Construction 502 28 75-01

BRACKET

$166.99

$

Usually ships in 3-10 days

0

160196

Husqvarna Construction 160196

GUIDE BAR

$70.99

$

Usually ships in 3-10 days

0

542205191

Husqvarna Construction 542 20 51-91

CABLE

$31.99

$

Usually ships in 3-10 days

0

181109

Husqvarna Construction 181109

NUT

$8.99

$

Usually ships in 3-10 days

0

020766

Husqvarna Construction 20766

WASHER

$

$

Not available

183396

Husqvarna Construction 183396

FRONT POINTER ASSY. PRO 65

$

$

Currently unavailable

725249971

Husqvarna Construction 725 24 99-71

SCREW EHHM

$10.99

$

Usually ships in 3-10 days

0

505189101

Husqvarna Construction 505 18 91-01

BRACKET

$17.99

$

Usually ships in 3-10 days

0

735117301

Husqvarna Construction 735 11 73-01

SPRING WASHER

$3.49

$

In Stock, Qty 10

0

732252001

Husqvarna 732 25 20-01

HEXAGON LOCKING NUT

$4.99

$

In Stock, only 2 left!

0
