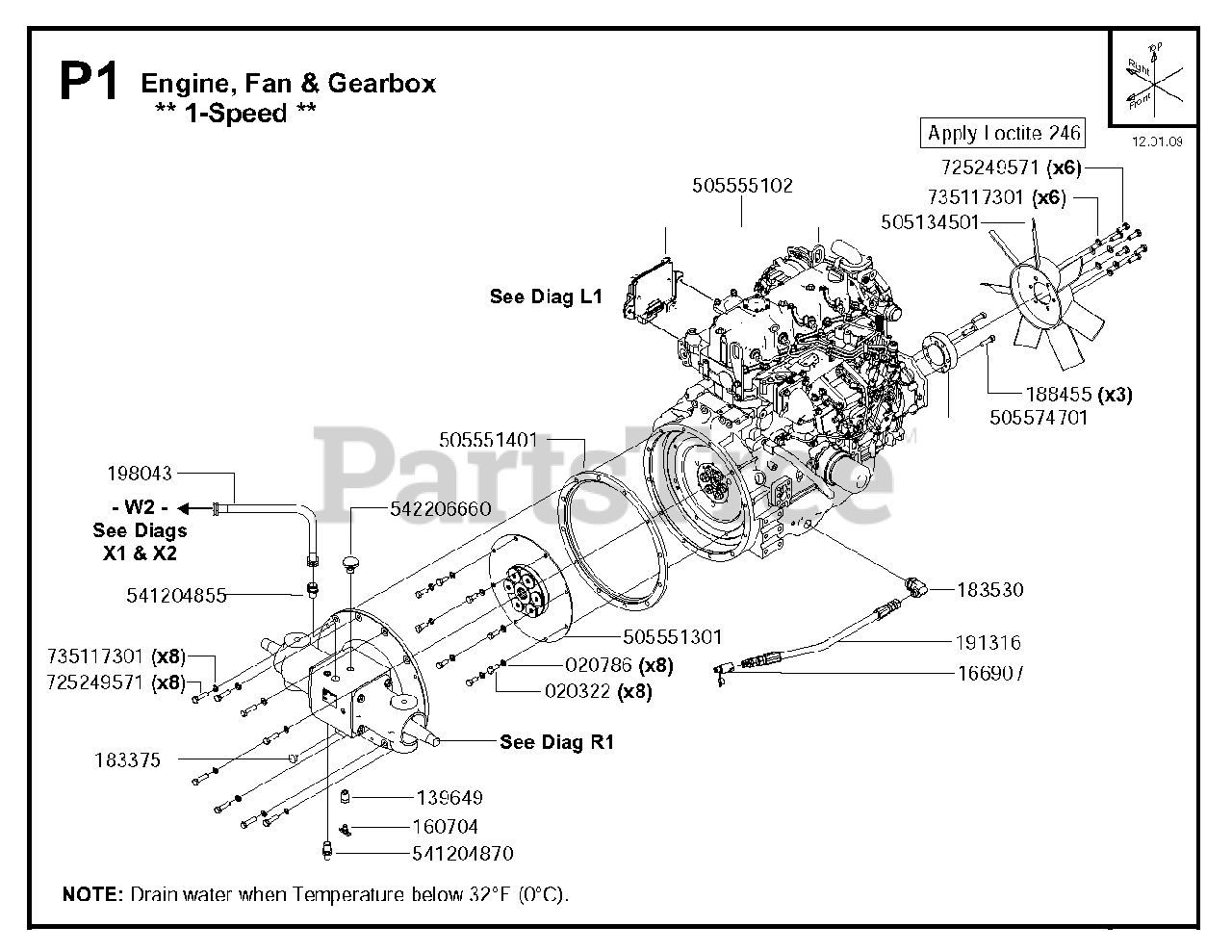

FS 6800 YAN T3 - Husqvarna Floor Saw (2009-10) Engine, Fan & Gearbox, 1-Speed Parts Diagram

Floor Saw

Engine, Fan & Gearbox, 1-Speed Parts Diagram

  • Title

198043

Husqvarna Construction 198043

COVER.CHASSIS.FRONT.WELD.TEX
(Superseded to 532198043)

$

$

Not available

505551401

Husqvarna Construction 505 55 14-01

SPACER RING

$783.99

$

Usually ships in 3-10 days

0

160704

Husqvarna Construction 160704

PETCOCK

$12.99

$

Usually ships in 3-10 days

0

139649

Husqvarna Construction 139649

BUSHING. BRASS 1/2NPTx1/4NPT

$6.99

$

Usually ships in 3-10 days

0

541204870

Husqvarna Construction 541 20 48-70

FITTING

$8.99

$

Usually ships in 3-10 days

0

183375

Husqvarna Construction 183375

FRAME.BAG.21.PUSH
(Superseded to 583125801)

$35.99

$

Usually ships in 3-10 days

0

725249571

Husqvarna 725 24 95-71

SCREW EHHM

$1.99

$

In Stock, Qty 8

0

541204855

Husqvarna Construction 541 20 48-55

FITTING

$10.99

$

Usually ships in 3-10 days

0

542206660

Husqvarna Construction 542 20 66-60

BREATHER

$53.99

$

Usually ships in 3-10 days

0

735117301

Husqvarna Construction 735 11 73-01

SPRING WASHER

$3.49

$

In Stock, Qty 10

0

020322

Husqvarna Construction 20322

HHCS. .375-16 x .75 GR 5 Z/P

$

$

Not available

166907

Husqvarna Construction 166907

KIT.HSG.21.RGWD.MC

$

$

Not available

191316

Husqvarna Construction 191316

HOSE. OIL DRAIN. 20"

$47.99

$

Usually ships in 3-10 days

0

183530

Husqvarna Construction 183530

FITTING. METRIC ELBO M22-8JIC

$91.99

$

Usually ships in 3-10 days

0

505574701

Husqvarna Construction 505574701

SPACER

$375.67

$

Usually ships in 3-10 days

0

020786

Husqvarna Construction 20786

LOCKWASHER. SPLIT .375

$

$

Not available

505134501

Husqvarna Construction 505 13 45-01

FAN

$165.99

$

Usually ships in 3-10 days

0

188455

Husqvarna Construction 188455

TBD

$

$

Not available

735117301

Husqvarna Construction 735 11 73-01

SPRING WASHER

$3.49

$

In Stock, Qty 10

0

725249571

Husqvarna 725 24 95-71

SCREW EHHM

$1.99

$

In Stock, Qty 8

0

505551301

Husqvarna Construction 505551301

COUPLER

$672.99

$

Usually ships in 3-10 days

0

505555102

Husqvarna Construction 505 55 51-02

ENGINE

$19766.83

$

Usually ships in 3-10 days

0
