FS 6800 YAN T3 - Husqvarna Floor Saw (2009-10) Gearbox & Belt Guard, 3-Speed Parts Diagram

Floor Saw

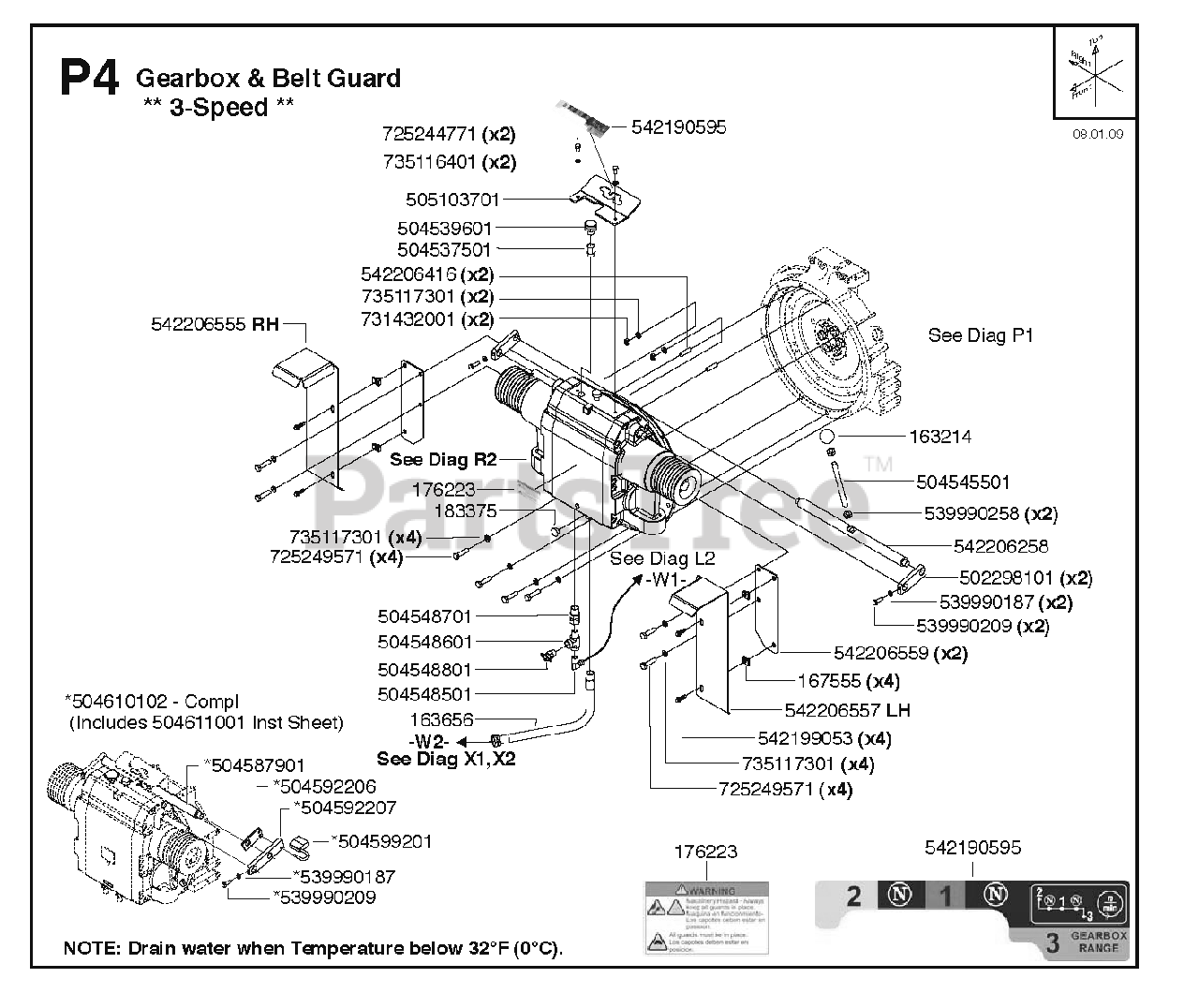

Gearbox & Belt Guard, 3-Speed Parts Diagram

  • Title

725 24 47-71

Husqvarna Construction 725 24 47-71

SCREW EHHM

$5.49

$

In Stock, only 2 left!

0

735 11 64-01

Husqvarna 735 11 64-01

SPRING WASHER

$1.99

$

In Stock, Qty 6

0

505 10 37-01

Husqvarna Construction 505 10 37-01

BRACKET

$155.99

$

Usually ships in 3-10 days

0

504 53 96-01

Husqvarna Construction 504 53 96-01

FITTING

$90.99

$

Usually ships in 3-10 days

0

542 20 64-16

Husqvarna Construction 542 20 64-16

PIN

$8.99

$

Usually ships in 3-10 days

0

735 11 73-01

Husqvarna Construction 735 11 73-01

SPRING WASHER

$3.49

$

In Stock, Qty 10

0

504 53 75-01

Husqvarna Construction 504 53 75-01

FITTING

$10.99

$

Usually ships in 3-10 days

0

731 43 20-01

Husqvarna Construction 731 43 20-01

HEXAGON THIN NUT

$3.49

$

Usually ships in 3-10 days

0

163214

Husqvarna Construction 163214

FRAME.CATCHER
(Superseded to 532163214)

$

$

Not available

504 54 55-01

Husqvarna Construction 504 54 55-01

HANDLE

$99.99

$

Usually ships in 3-10 days

0

539 99 02-58

Husqvarna 539 99 02-58

NUT

$4.99

$

In Stock, Qty 10

0

542 20 62-58

Husqvarna Construction 542 20 62-58

ROD

$311.99

$

Usually ships in 3-10 days

0

539 99 01-87

Husqvarna 539 99 01-87

WASHER
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

539 99 02-09

Husqvarna 539 99 02-09

SCREW

$1.99

$

Usually ships in 3-10 days

0

542 20 65-59

Husqvarna Construction 542 20 65-59

BELT GUARD

$55.99

$

Usually ships in 3-10 days

0

167555

Husqvarna Construction 167555

U-NUT.M8 x 1.25 (.8-4 mm MATL)

$3.99

$

Usually ships in 3-10 days

0

542 20 65-57

Husqvarna Construction 542 20 65-57

GUARD

$226.99

$

Usually ships in 3-10 days

0

542 19 90-53

Husqvarna Construction 542 19 90-53

SCREW

$7.49

$

In Stock, only 3 left!

0

735 11 73-01

Husqvarna Construction 735 11 73-01

SPRING WASHER

$3.49

$

In Stock, Qty 10

0

725 24 95-71

Husqvarna 725 24 95-71

SCREW EHHM

$1.99

$

Usually ships in 3-10 days

0

504 54 87-01

Husqvarna Construction 504 54 87-01

FITTING

$12.99

$

Usually ships in 3-10 days

0

504 54 86-01

Husqvarna Construction 504 54 86-01

FITTING

$17.99

$

Usually ships in 3-10 days

0

504 54 88-01

Husqvarna Construction 504 54 88-01

VALVE

$48.99

$

Usually ships in 3-10 days

0

504 54 85-01

Husqvarna Construction 504 54 85-01

FITTING

$25.99

$

Usually ships in 3-10 days

0

183375

Husqvarna Construction 183375

FRAME.BAG.21.PUSH
(Superseded to 583125801)

$

$

Not available

542 20 65-55

Husqvarna Construction 542 20 65-55

GUARD

$252.99

$

Usually ships in 3-10 days

0

502 29 81-01

Husqvarna Construction 502 29 81-01

ARM

$318.99

$

Usually ships in 3-10 days

0

163656

Husqvarna Construction 163656

HOSE ASSY

$35.99

$

Usually ships in 3-10 days

0

735 11 73-01

Husqvarna Construction 735 11 73-01

SPRING WASHER

$3.49

$

In Stock, Qty 10

0

725 24 95-71

Husqvarna 725 24 95-71

SCREW EHHM

$1.99

$

Usually ships in 3-10 days

0

542 19 05-95

Husqvarna Construction 542 19 05-95

DECAL

$51.99

$

Usually ships in 3-10 days

0

504 61 01-02

Husqvarna Construction 504 61 01-02

KIT

$2922.10

$

Usually ships in 3-10 days

0

504 61 10-01

Husqvarna Construction 504 61 10-01

INSTRUCTION

$

$

Not available

504 58 79-01

Husqvarna Construction 504 58 79-01

ROD

$1901.32

$

Usually ships in 3-10 days

0

504 59 22-07

Husqvarna Construction 504 59 22-07

ARM

$836.62

$

Usually ships in 3-10 days

0

504 59 22-06

Husqvarna Construction 504 59 22-06

ARM

$219.99

$

Usually ships in 3-10 days

0

504 59 92-01

Husqvarna Construction 504 59 92-01

LOCK

$47.83

$

Usually ships in 3-10 days

0

539 99 02-09

Husqvarna 539 99 02-09

SCREW

$1.99

$

Usually ships in 3-10 days

0

539 99 01-87

Husqvarna 539 99 01-87

WASHER
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

176223

Husqvarna Construction 176223

DECAL

$10.99

$

In Stock, only 2 left!

0
