FS 7000 DL - Husqvarna Floor Saw (2017-02) BASE PLATE Parts Diagram

Floor Saw

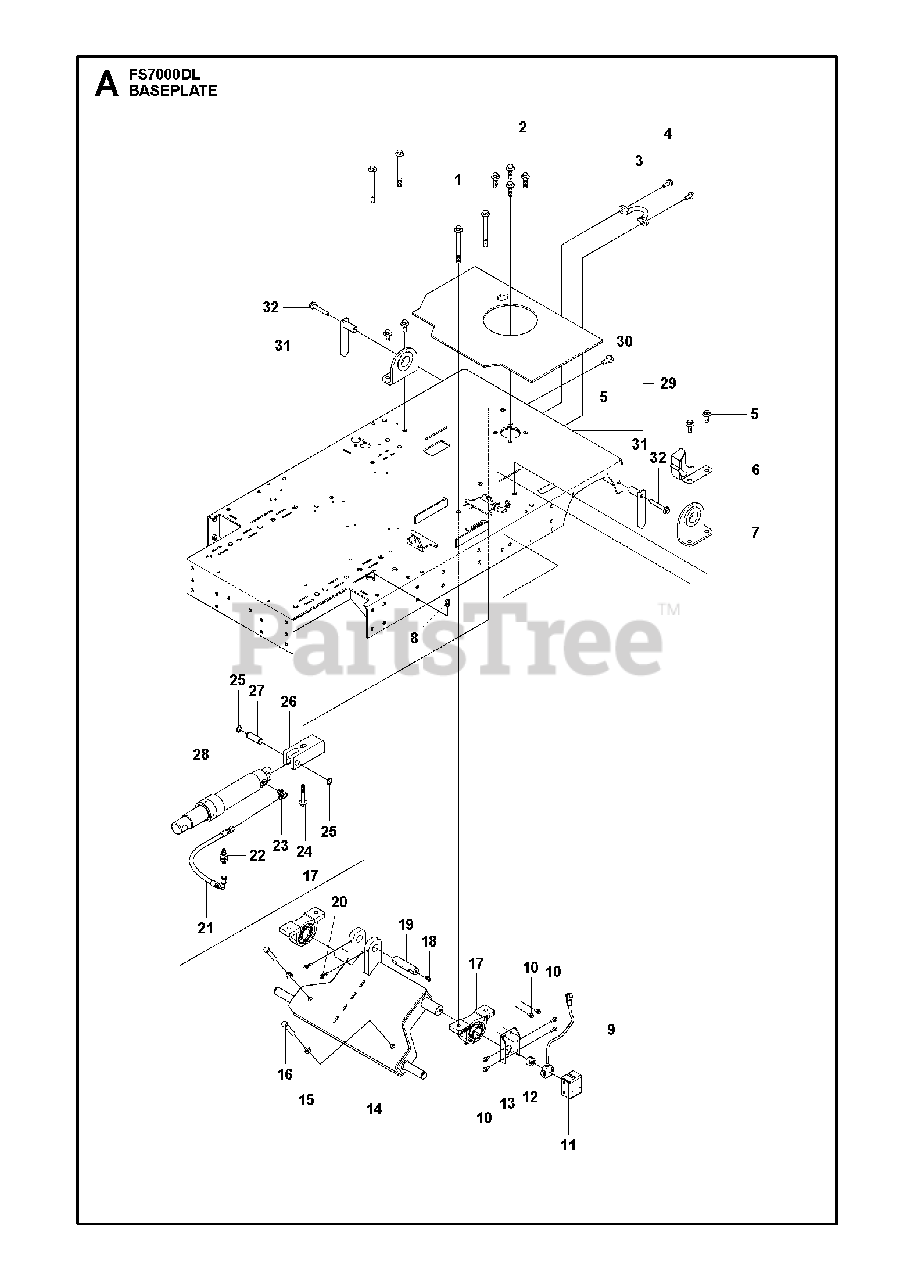

BASE PLATE Parts Diagram

  • Title

1

Husqvarna Construction 576 65 48-13

SCREW EHHFM

$6.99

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 576 65 48-04

SCREW EHHFM

$5.49

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 504 58 03-02

LOOP

$10.99

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 585 97 31-01

SCREW EHHFM

$1.99

$

Usually ships in 3-10 days

0

5

Husqvarna Construction 576 65 48-03

SCREW EHHFM

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 588 56 85-01

BRACKET

$72.99

$

Usually ships in 3-10 days

0

7

Husqvarna Construction 579 23 22-01

MOUNT

$105.99

$

Usually ships in 3-10 days

0

8

Husqvarna Construction 583 95 95-01

CLAMP

$1.99

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 581 14 07-01

SENSOR

$250.33

$

Usually ships in 3-10 days

0

10

Husqvarna Construction 585 98 06-01

SCREW EHHFM

$8.99

$

In Stock, only 2 left!

0

11

Husqvarna Construction 579 33 02-01

BOX

$101.99

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 581 14 06-01

MAGNET

$39.25

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 579 33 03-01

PLATE

$15.99

$

In Stock, only 1 left!

0

14

Husqvarna Construction 589 38 63-01

BRACKET60"

$2500.99

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 587 71 55-01

FRONT AXLE36",42",48"

$1343.99

$

Usually ships in 3-10 days

0

15

Husqvarna 731 23 22-01

HEXAGON NUT

$1.99

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 725 25 46-71

SCREW EHHM

$15.99

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 579 73 54-01

BALL BEARING

$51.80

$

Usually ships in 3-10 days

0

18

Husqvarna Construction 581 06 88-01

GREASE

$15.99

$

Usually ships in 3-10 days

0

19

Husqvarna Construction 590 22 42-01

SHAFT

$149.99

$

Usually ships in 3-10 days

0

20

Husqvarna Construction 542 19 90-53

SCREW

$6.99

$

In Stock, only 3 left!

0

21

Husqvarna Construction 590 62 81-01

HYDRAULIC HOSE

$51.99

$

Usually ships in 3-10 days

0

22

Husqvarna Construction 581 20 55-01

ADAPTER

$8.99

$

Usually ships in 3-10 days

0

23

Husqvarna Construction 590 62 80-01

ADAPTER

$10.99

$

Usually ships in 3-10 days

0

24

Husqvarna Construction 576 65 48-07

SCREW EHHFM

$26.99

$

Usually ships in 3-10 days

0

25

Husqvarna 735 31 22-01

CIRCLIP
(Superseded to 735312200)

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna Construction 579 59 56-01

BLOCK

$74.99

$

Usually ships in 3-10 days

0

27

Husqvarna Construction 579 52 58-01

SHAFT

$15.99

$

In Stock, only 1 left!

0

28

Husqvarna Construction 501 49 32-01

HYDRAULIC CYLINDER

$1449.99

$

Usually ships in 3-10 days

0

29

Husqvarna Construction 590 19 81-01

BASEPLATE

$

$

Currently unavailable

30

Husqvarna Construction 581 16 72-01

INSULATORInsulator included

$67.99

$

Usually ships in 3-10 days

0

31

Husqvarna Construction 581 11 52-01

POINTER

$93.99

$

Usually ships in 3-10 days

0

32

Husqvarna Construction 581 24 33-01

SCREW EHHFM

$6.99

$

Usually ships in 3-10 days

0
