FS 7000 DL - Husqvarna Floor Saw (2017-02) GEAR BOX 3-SPEED Parts Diagram

Floor Saw

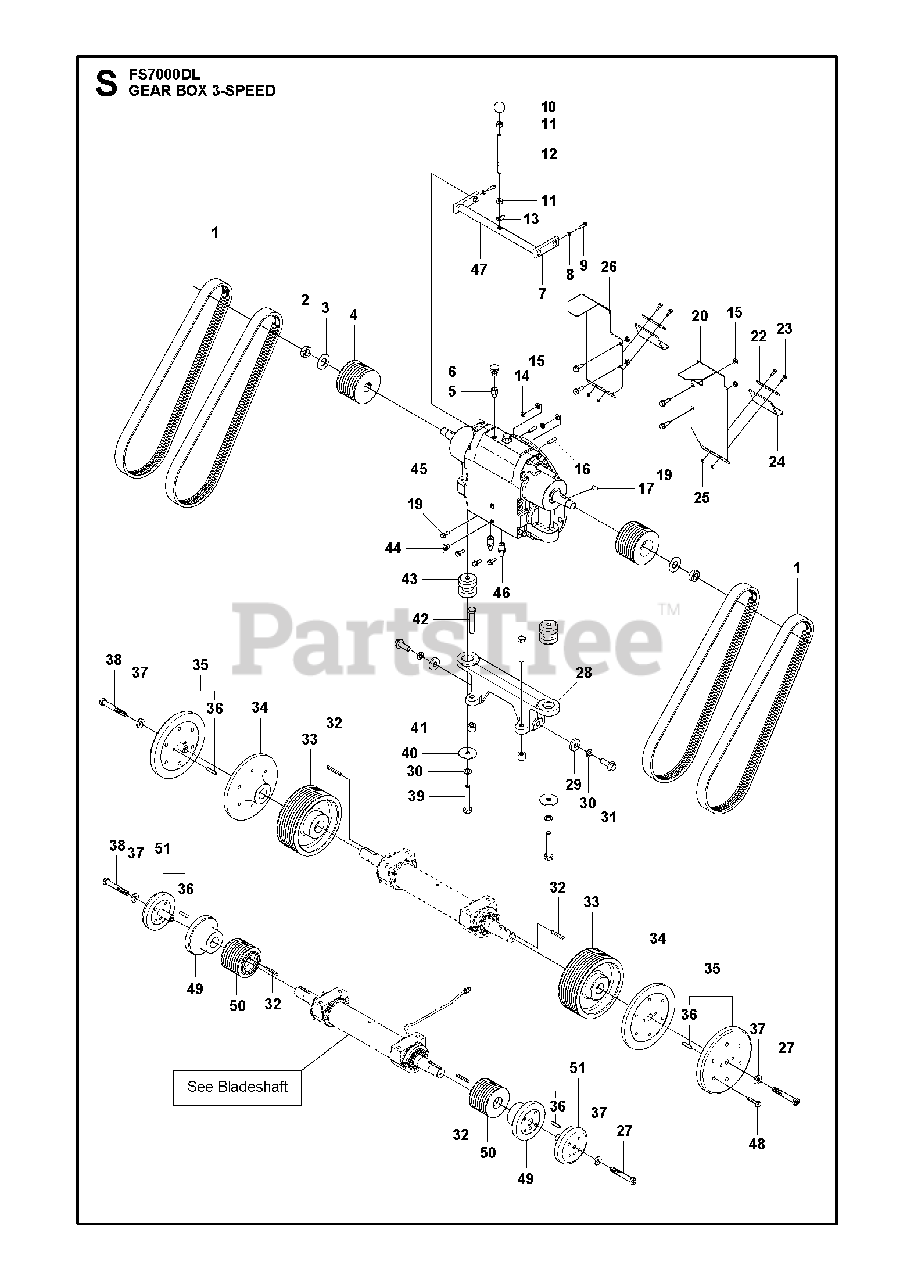

GEAR BOX 3-SPEED Parts Diagram

  • Title

1

Husqvarna Construction 504 11 97-06

V-BELT26"

$108.99

$

In Stock, Qty 5

0

1

Husqvarna Construction 504 11 97-07

V-BELT30"

$123.99

$

Usually ships in 3-10 days

0

1

Husqvarna Construction 504 11 97-01

V-BELT36"

$124.99

$

Usually ships in 3-10 days

0

1

Husqvarna Construction 541 20 09-91

V-BELT42"

$132.99

$

In Stock, only 2 left!

0

1

Husqvarna Construction 504 11 97-01

V-BELT48"

$124.99

$

Usually ships in 3-10 days

0

1

Husqvarna Construction 541 20 08-07

V-BELT60"

$129.99

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 541 20 48-33

NUT

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 542 16 64-80

WASHER

$12.99

$

In Stock, only 1 left!

0

4

Husqvarna Construction 581 09 98-02

PULLEY36", 42", 48"

$348.99

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 581 09 98-03

PULLEY60"

$566.99

$

Usually ships in 3-10 days

0

5

Husqvarna Construction 504 53 75-01

FITTING

$10.99

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 504 53 96-01

FITTING

$88.99

$

Usually ships in 3-10 days

0

7

Husqvarna Construction 586 96 49-01

ARM

$103.99

$

Usually ships in 3-10 days

0

8

Husqvarna Construction 542 02 07-77

WASHER

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 505 77 25-01

SCREW

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna Construction 542 16 32-14

BALL

$24.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539 99 02-58

NUT

$4.99

$

In Stock, Qty 10

0

12

Husqvarna Construction 542 20 63-97

HANDLE

$38.50

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 586 86 52-01

POINTER

$17.99

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 731 43 20-01

HEXAGON THIN NUT

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 734 11 72-01

WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

16

Husqvarna Construction 542 20 64-16

PIN

$8.99

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 542 16 46-32

KEY

$6.99

$

In Stock, only 2 left!

0

19

Husqvarna Construction 585 98 04-01

SCREW EHHFM

$12.99

$

Usually ships in 3-10 days

0

20

Husqvarna Construction 581 02 09-01

BELT GUARD

$103.99

$

Usually ships in 3-10 days

0

22

Husqvarna Construction 581 52 18-01

PLATE

$6.99

$

Usually ships in 3-10 days

0

23

Husqvarna Construction 586 12 02-01

SCREW EHHFM

$8.99

$

Usually ships in 3-10 days

0

24

Husqvarna Construction 581 52 16-01

SPLASH GUARD

$17.99

$

Usually ships in 3-10 days

0

25

Husqvarna 732 25 16-01

HEXAGON LOCKING NUT

$3.49

$

In Stock, only 4 left!

0

26

Husqvarna Construction 581 02 08-01

BELT GUARD

$103.99

$

Usually ships in 3-10 days

0

27

Husqvarna Construction 586 25 57-01

SCREW26”, 30”, 36”

$53.99

$

In Stock, only 2 left!

0

27

Husqvarna Construction 586 25 60-01

SCREW42", 48", 60"

$60.99

$

Usually ships in 3-10 days

0

28

Husqvarna Construction 542 16 64-42

BRACKET

$451.99

$

Usually ships in 3-10 days

0

29

Husqvarna Construction 542 16 03-93

WASHER

$8.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539 99 03-33

WASHER

$1.99

$

In Stock, Qty 6

0

31

Husqvarna Construction 542 16 74-47

SCREW

$17.99

$

Usually ships in 3-10 days

0

32

Husqvarna Construction 542 19 90-45

KEY

$15.99

$

Usually ships in 3-10 days

0

33

Husqvarna Construction 582 41 14-01

PULLEY60"

$2419.99

$

Usually ships in 3-10 days

0

34

Husqvarna Construction 582 48 74-01

FLANGE60"

$1869.99

$

Usually ships in 3-10 days

0

35

Husqvarna Construction 522 96 59-41

FLANGE60" Including Pin"

$1043.99

$

Usually ships in 3-10 days

0

36

Husqvarna Construction 539 30 00-10

PIN36", 42", 48"

$3.49

$

In Stock, Qty 20+

0

36

Husqvarna Construction 539 30 00-10

PIN60"

$3.49

$

In Stock, Qty 20+

0

37

Husqvarna Construction 522 96 59-42

WASHER

$12.99

$

In Stock, only 2 left!

0

38

Husqvarna Construction 586 25 59-01

SCREW26”, 30”, 36”

$51.99

$

In Stock, only 2 left!

0

38

Husqvarna Construction 586 25 61-01

SCREW42", 48", 60"

$63.99

$

In Stock, only 3 left!

0

39

Husqvarna Construction 542 16 63-56

SCREW

$8.99

$

Usually ships in 3-10 days

0

40

Husqvarna Construction 542 20 63-56

WASHER

$24.99

$

Usually ships in 3-10 days

0

41

Husqvarna Construction 539 30 04-40

BOLT

$10.99

$

In Stock, only 1 left!

0

42

Husqvarna Construction 542 16 63-68

SCREW

$15.99

$

Usually ships in 3-10 days

0

43

Husqvarna Construction 587 15 01-01

ANTIVIBRATION ELEMENT

$31.99

$

In Stock, only 2 left!

0

44

Husqvarna Construction 542 16 07-04

TAP

$12.99

$

Usually ships in 3-10 days

0

45

Husqvarna Construction 586 87 03-01

GEARBOX

$7443.33

$

Usually ships in 3-10 days

0

46

Husqvarna Construction 541 20 48-70

FITTING

$8.99

$

Usually ships in 3-10 days

0

47

Husqvarna Construction 586 85 75-01

ROD

$240.99

$

Usually ships in 3-10 days

0

48

Husqvarna Construction 725 25 42-71

SCREW EHHM60"

$3.49

$

Usually ships in 3-10 days

0

49

Husqvarna Construction 590 14 60-01

FLANGE26”, 30”

$368.99

$

Usually ships in 3-10 days

0

49

Husqvarna Construction 582 69 72-01

FLANGE36"

$346.99

$

Usually ships in 3-10 days

0

49

Husqvarna Construction 582 48 70-01

FLANGE42"

$718.99

$

Usually ships in 3-10 days

0

49

Husqvarna Construction 582 48 72-01

FLANGE48"

$1270.99

$

Usually ships in 3-10 days

0

50

Husqvarna Construction 582 41 17-01

PULLEY36"

$973.99

$

Usually ships in 3-10 days

0

50

Husqvarna Construction 582 41 18-01

PULLEY42"

$1097.99

$

Usually ships in 3-10 days

0

50

Husqvarna Construction 582 41 16-01

PULLEY48"

$1054.99

$

Usually ships in 3-10 days

0

51

Husqvarna Construction 522 96 59-39

FLANGE36" Including Pin"

$199.99

$

Usually ships in 3-10 days

0

51

Husqvarna Construction 522 96 59-38

FLANGE42" Including Pin"

$328.99

$

Usually ships in 3-10 days

0

51

Husqvarna Construction 522 96 59-40

FLANGE48" Including Pin"

$759.99

$

Usually ships in 3-10 days

0

51

Husqvarna Construction 522 96 59-37

FLANGE

$171.99

$

Usually ships in 3-10 days

0

50

Husqvarna Construction 590 14 61-01

PULLEY26”, 30”

$551.99

$

Usually ships in 3-10 days

0
