FS481V-CS06 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

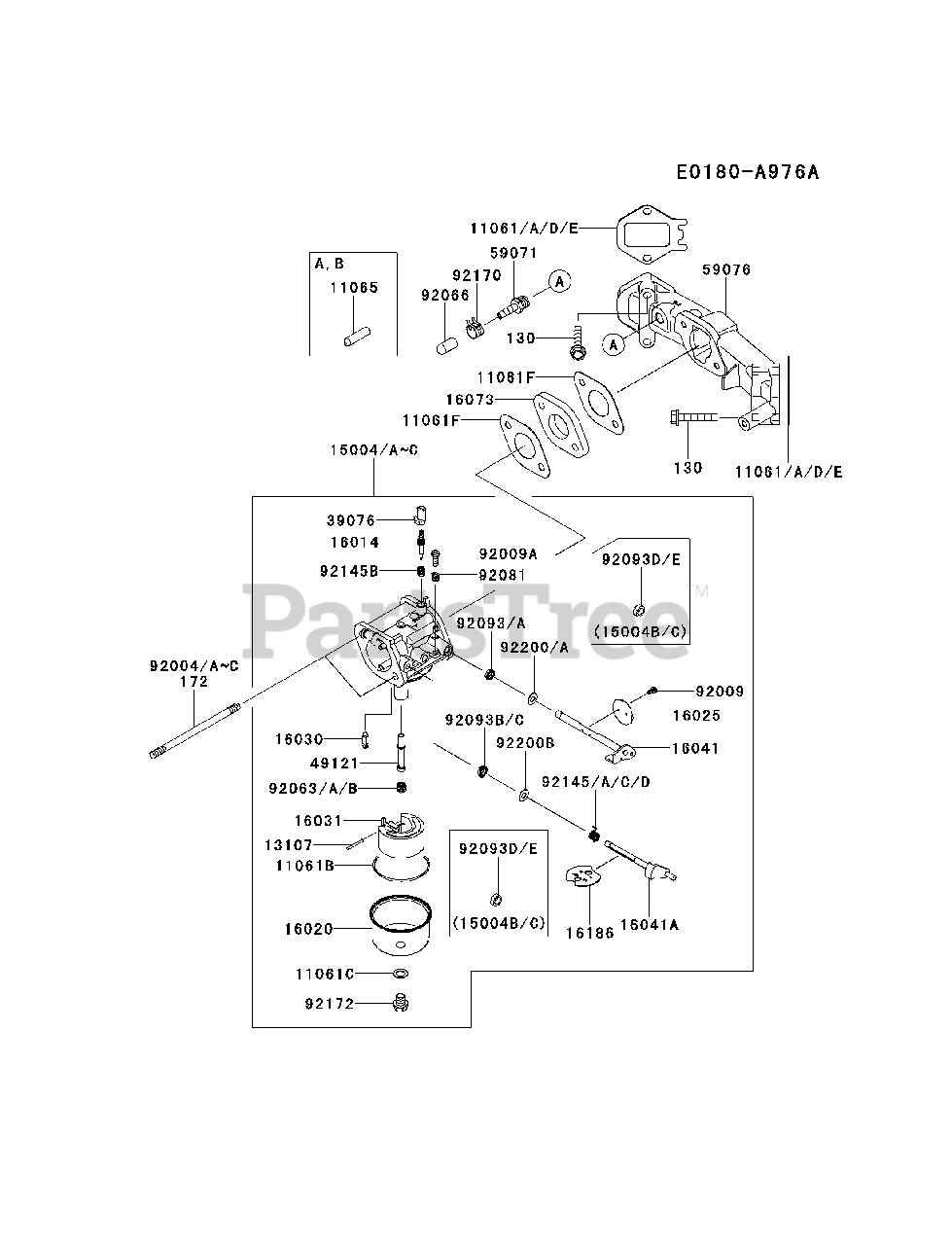

CARBURETOR Parts Diagram

  • Title

11061A

Kawasaki 110610877

GASKET
(Superseded to 11061-7089)

$3.49

$

In Stock, Qty 20+

0

11061B

Kawasaki 110617009

GASKET,CHAMBER

$2.99

$

In Stock, Qty 20+

0

11061C

Kawasaki 110617010

GASKET,SCREW

$3.49

$

Usually ships in 2-5 days

0

11061E

Kawasaki 11061-7089

GASKET,MANIFOLD
(Superseded to 110610877)

Note: Substitute part, supplied until the stock is exhausted.

$3.49

$

In Stock, Qty 20+

0

11061F

Kawasaki 110617096

GASKET,INSULATOR

$2.99

$

In Stock, Qty 8

0

13107

Kawasaki 131077018

SHAFT

$4.49

$

In Stock, Qty 7

0

15004A

Kawasaki 150040823

CARBURETOR-ASSY
(Superseded to 15004-7086)

$

$

Not available

15004C

Kawasaki 15004-7086

CARBURETOR-ASSY
(Superseded to 15004-0823)

Note: Substitute part, supplied until the stock is exhausted.

$

$

Not available

16014

Kawasaki 160147011

SCREW-PILOT AIR

$18.99

$

In Stock, only 2 left!

0

16020

Kawasaki 160207003

CHAMBER-FLOAT

$14.99

$

In Stock, only 1 left!

0

16025

Kawasaki 160257006

VALVE-THROTTLE

$17.99

$

In Stock, Qty 5

0

16030

Kawasaki 160307003

VALVE-FLOAT

$20.99

$

In Stock, Qty 12

0

16031

Kawasaki 160317002

FLOAT

$28.99

$

In Stock, only 4 left!

0

16041

Kawasaki 160417018

SHAFT-CARBURETOR,THROTTLE

$22.99

$

In Stock, Qty 5

0

16041A

Kawasaki 160417049

SHAFT-CARBURETOR,CHOKE

$29.99

$

In Stock, only 1 left!

0

16073

Kawasaki 16073-7007

INSULATOR
(Superseded to 16073-7001)

$

$

Not available

16186

Kawasaki 161867001

VALVE-ASSY-CHOKE

$13.99

$

In Stock, only 2 left!

0

39076

Kawasaki 390767001

LIMITER

$8.49

$

In Stock, only 1 left!

0

49121

Kawasaki 491217021

NOZZLE-MAIN

$34.99

$

In Stock, only 2 left!

0

59071

Kawasaki 59071-7021

JOINT
(Superseded to 59071-0740)

$4.99

$

In Stock, only 3 left!

0

59076

Kawasaki 590767024

MANIFOLD-INTAKE

$131.99

$

Usually ships in 2-5 days

0

92004A

Kawasaki 920042149

STUD,6X98

$2.99

$

Usually ships in 2-5 days

0

92004B

Kawasaki 920047027

STUD,6X95

Note: Substitute part, supplied until the stock is exhausted.

$3.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 920092083

SCREW

$2.49

$

In Stock, Qty 20+

0

92009A

Kawasaki 920092349

SCREW

$1.49

$

In Stock, only 2 left!

0

92063

Kawasaki 920637046

JET-MAIN,#100,3280FT

$12.99

$

In Stock, only 1 left!

0

92063A

Kawasaki 920637047

JET-MAIN,#098,6560FT

$12.99

$

In Stock, only 2 left!

0

92063B

Kawasaki 920637156

JET-MAIN,#102

$13.99

$

In Stock, only 2 left!

0

92066

Kawasaki 920660095

PLUG

$5.49

$

In Stock, Qty 11

0
