FS481V-CS55 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

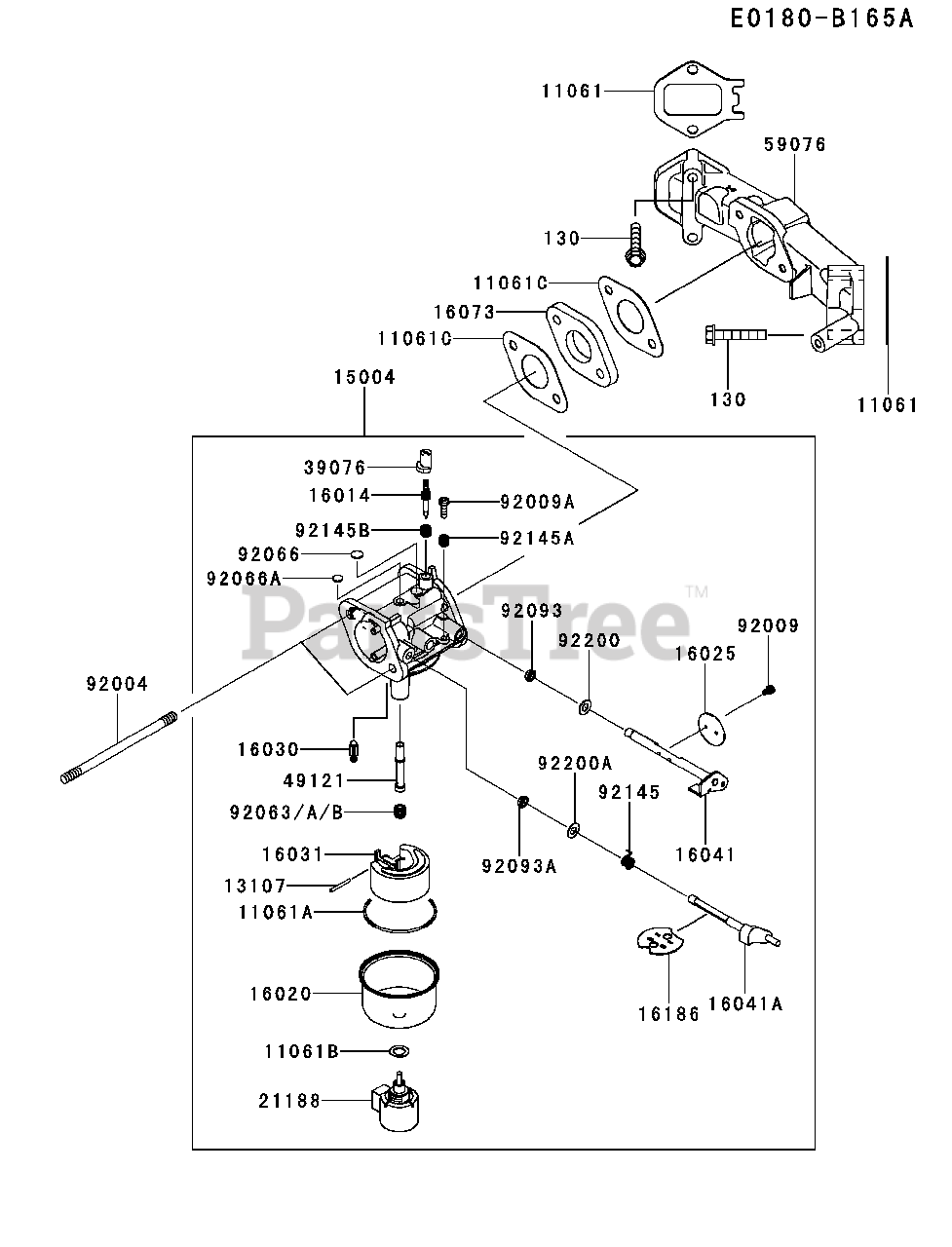

CARBURETOR Parts Diagram

  • Title

11061

Kawasaki 110610877

GASKET,MANIFOLD
(Superseded to 11061-7089)

$3.49

$

In Stock, only 2 left!

0

11061A

Kawasaki 110617009

GASKET,CHAMBER

$2.99

$

In Stock, Qty 20+

0

11061B

Kawasaki 110617010

GASKET

$3.49

$

In Stock, Qty 20+

0

11061C

Kawasaki 110617096

GASKET,INSULATOR

$2.99

$

In Stock, Qty 20+

0

13107

Kawasaki 131077018

SHAFT

$4.49

$

In Stock, Qty 6

0

15004

Kawasaki 150040822

CARBURETOR-ASSY
(Superseded to 15004-7085)

$377.99

$

Usually ships in 2-5 days

0

16014

Kawasaki 160147011

SCREW-PILOT AIR

$18.99

$

Usually ships in 2-5 days

0

16020

Kawasaki 160207003

CHAMBER-FLOAT

$14.99

$

In Stock, only 4 left!

0

16025

Kawasaki 160257006

VALVE-THROTTLE

$17.99

$

In Stock, Qty 5

0

16030

Kawasaki 160307003

VALVE-FLOAT

$20.99

$

In Stock, Qty 10

0

16031

Kawasaki 160317002

FLOAT

$28.99

$

In Stock, Qty 6

0

16041

Kawasaki 160417018

SHAFT-CARBURETOR,THRO

$22.99

$

In Stock, Qty 5

0

16041A

Kawasaki 160417049

SHAFT-CARBURETOR

$29.99

$

In Stock, only 4 left!

0

16073

Kawasaki 16073-7007

INSULATOR
(Superseded to 16073-7001)

$

$

Not available

16186

Kawasaki 161867001

VALVE-ASSY-CHOKE

$13.99

$

In Stock, only 1 left!

0

21188

Kawasaki 211887002

SOLENOID

$171.99

$

In Stock, only 1 left!

0

39076

Kawasaki 390767001

LIMITER

$8.49

$

In Stock, only 4 left!

0

49121

Kawasaki 491217021

NOZZLE-MAIN

$34.99

$

In Stock, only 3 left!

0

59076

Kawasaki 590767020

MANIFOLD-INTAKE

$131.99

$

Usually ships in 2-5 days

0

92004

Kawasaki 920042149

STUD

$2.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 920092083

SCREW

$2.49

$

In Stock, Qty 11

0

92009A

Kawasaki 920092349

SCREW

$1.49

$

In Stock, Qty 5

0

92063

Kawasaki 920637046

JET-MAIN,#100

$12.99

$

Usually ships in 2-5 days

0

92063A

Kawasaki 920637047

JET-MAIN,#098

$12.99

$

Usually ships in 2-5 days

0

92063B

Kawasaki 920637156

JET-MAIN,#102

$13.99

$

In Stock, Qty 5

0

92066

Kawasaki 920662204

PLUG

$3.99

$

In Stock, Qty 8

0

92066A

Kawasaki 920662244

PLUG

$1.99

$

In Stock, only 2 left!

0

92093

Kawasaki 920930593

SEAL

$2.49

$

In Stock, Qty 20+

0

92093A

Kawasaki 920930594

SEAL

$2.49

$

In Stock, only 2 left!

0

92145

Kawasaki 921450931

SPRING

$1.49

$

In Stock, Qty 9

0

92145A

Kawasaki 921451579

SPRING

$2.49

$

Usually ships in 2-5 days

0

92145B

Kawasaki 921457015

SPRING

$2.49

$

In Stock, Qty 10

0

92200

Kawasaki 922000848

WASHER

$1.49

$

In Stock, Qty 20+

0

92200A

Kawasaki 922002061

WASHER,9.8X5.5X1.0

$1.99

$

In Stock, Qty 10

0

130

Kawasaki 130AA0635

BOLT-FLANGED,6X35
(Superseded to 130B0635)

$1.99

$

In Stock, Qty 16

0
