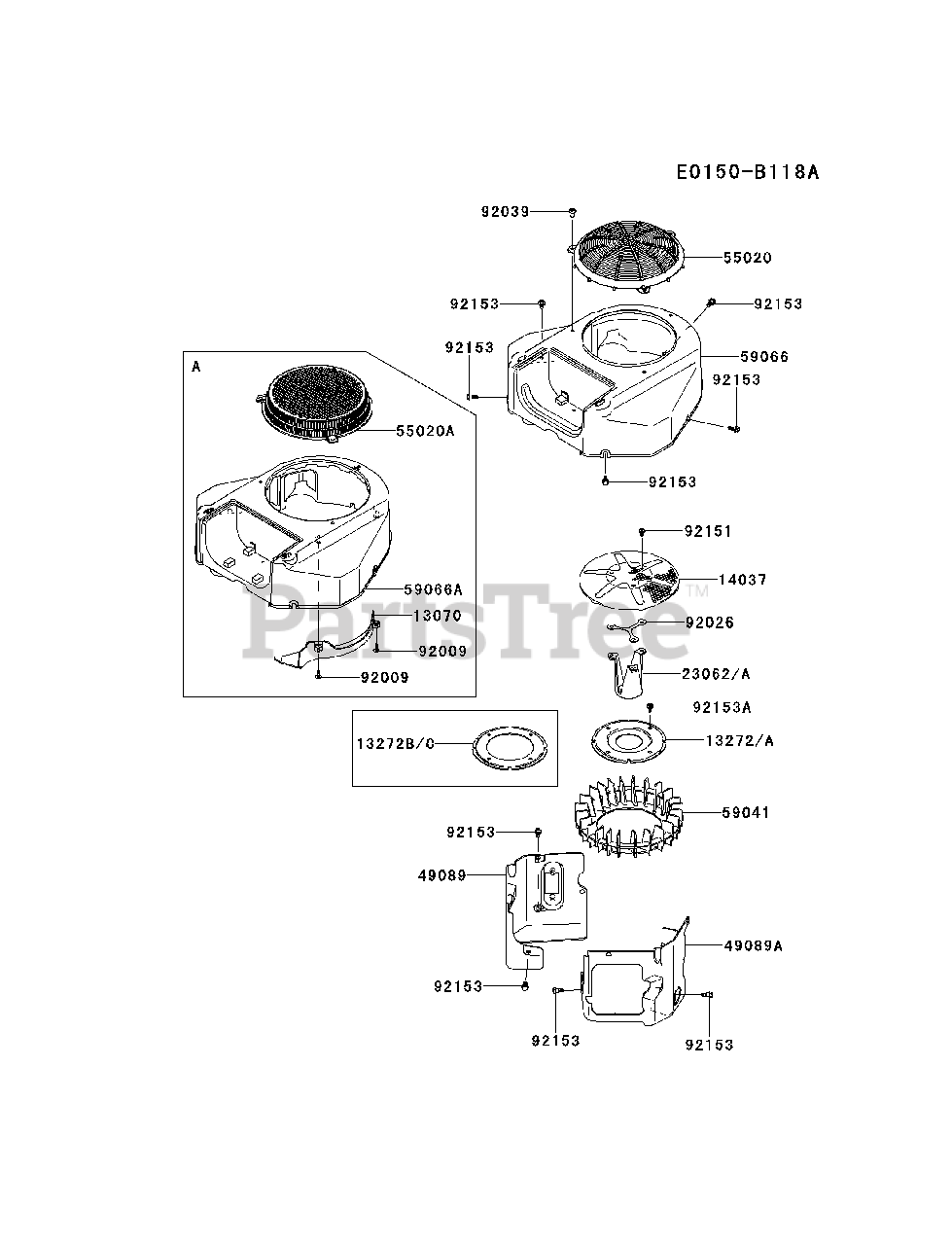

FS691V-AS15 - Kawasaki Engine COOLING-EQUIPMENT Parts Diagram

Engine

COOLING-EQUIPMENT Parts Diagram

  • Title

13070

Kawasaki 13070-7021

GUIDE
(Superseded to 99999-0397)

$244.99

$

Usually ships in 2-5 days

0

13272A

Kawasaki 132721487

PLATE,FAN

$9.99

$

In Stock, only 1 left!

0

13272C

Kawasaki 13272-7006

PLATE,FAN
(Superseded to 132721488)

Note: Substitute part, supplied until the stock is exhausted.

$10.99

$

In Stock, only 2 left!

0

14037

Kawasaki 1403770089H

SCREEN
(Superseded to 14037-7008)

$

$

Currently unavailable

23062

Kawasaki 230627022

BRACKET-COMP

$12.99

$

In Stock, only 2 left!

0

49089

Kawasaki 49089-7077

SHROUD-ENGINE
(Superseded to 49089-0887)

$

$

Not available

49089A

Kawasaki 490897078

SHROUD-ENGINE
(Superseded to 490890992)

$29.99

$

Usually ships in 2-5 days

0

55020A

Kawasaki 550207015

GUARD,SCREEN

$39.99

$

In Stock, only 2 left!

0

59041

Kawasaki 590417014

FAN

$17.99

$

Usually ships in 2-5 days

0

59066A

Kawasaki 59066-7057

HOUSING-FAN
(Superseded to 99999-0397)

$244.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 920092303

SCREW

$2.99

$

Usually ships in 2-5 days

0

92026

Kawasaki 920267007

SPACER

$5.99

$

In Stock, only 4 left!

0

92039

Kawasaki 92039-7004

RIVET,GUARD
(Superseded to 92039-0751)

$0.99

$

In Stock, Qty 13

0

92151

Kawasaki 92151-7012

BOLT,6X12
(Superseded to 92154-2687)

$1.49

$

In Stock, Qty 20+

0

92153

Kawasaki 921537007

BOLT

$4.49

$

In Stock, Qty 11

0

92153A

Kawasaki 92153-7043

BOLT,6X12

$

$

Not available
