FST-15 (135R616G190) - White Outdoor 42" Lawn Tractor (1995) Seat, Fuel Tank & Battery Parts Diagram

42" Lawn Tractor

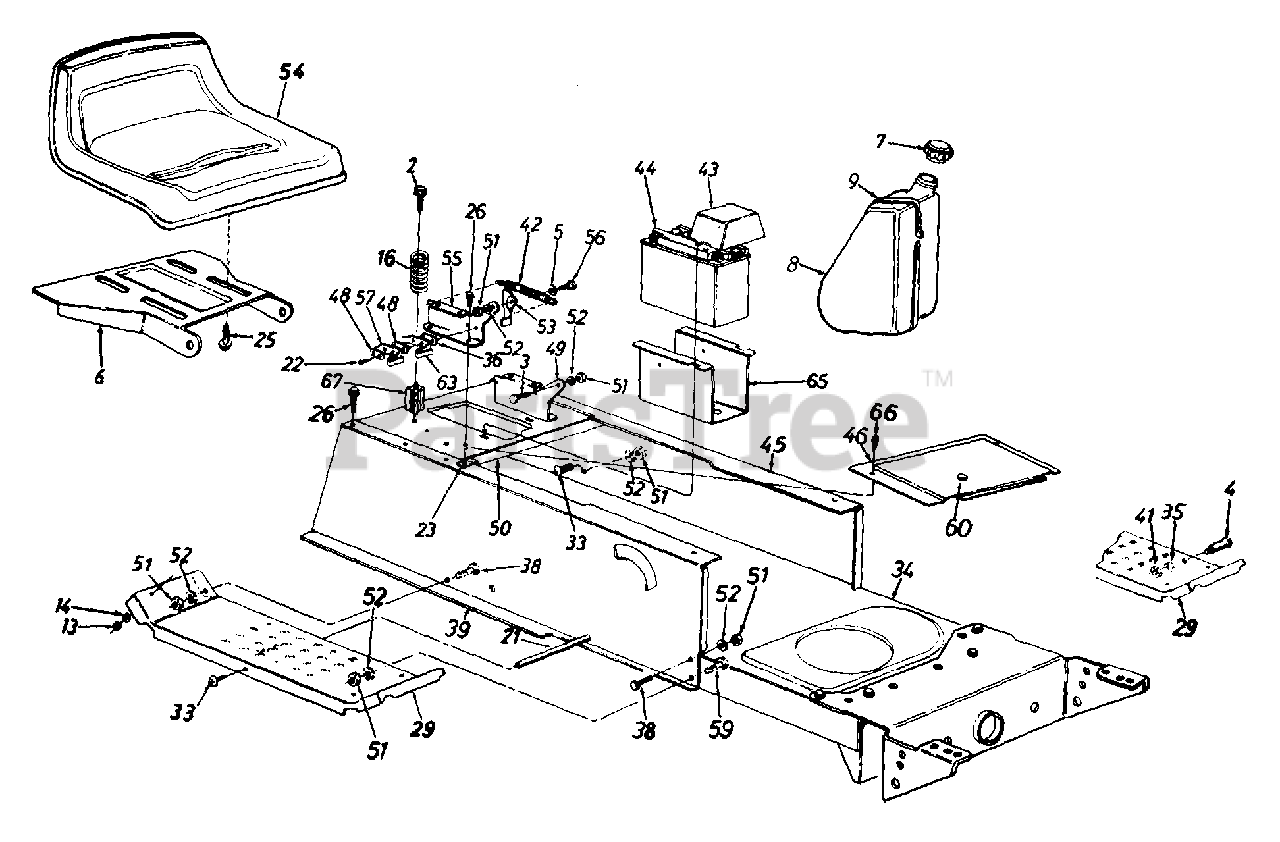

Seat, Fuel Tank & Battery Parts Diagram

  • Title

2

White Outdoor 710-1208

Hex Wash. Hd. Tap Scr. 5/16-18 x 3.25" Lg.

$7.49

$

In Stock, only 2 left!

0

3

White Outdoor 738-0155

Shld. Bolt .437" Dia. x .162"
(Superseded to 938-0155)

$7.49

$

Usually ships in 3-6 days

0

4

White Outdoor 738-0145

Shld. Bolt .50" Dia. x .84"

$7.49

$

In Stock, only 2 left!

0

5

White Outdoor 736-0141

Spr-Wash. .445" I.D. x .75
(Superseded to 936-0141)

$7.49

$

In Stock, only 2 left!

0

6

White Outdoor 783-0039

Seat Pivot Bracket
(Superseded to 783-0039A)

Variations

White Outdoor 783-0039-0637

Seat Pivot Bracket, Black - POWDER BLACK (0637)

$71.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0039-0638

Seat Pivot Bracket, Black - MTD/TROY-BILT RED (0638)

$71.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0039-0662

Seat Pivot Bracket, Black - OYSTER GRAY (0662)

$71.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0039-0667

Seat Pivot Bracket, Black - MIDNIGHT BLUE (0667)

$71.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

7

White Outdoor 751-0603

Fuel Cap
(Superseded to 751-0603B)

$24.99

$

In Stock, Qty 7

0

8

White Outdoor 751-0574

Fuel Tank

$

$

Not available

9

White Outdoor 726-0209

Tie Strap
(Superseded to 726-0230)

$28.99

$

In Stock, only 1 left!

0

?10

White Outdoor 751-0593

Fuel Line

$

$

Not available

?11

White Outdoor 726-0324

Hose Clamp
(Superseded to 926-0324)

$7.99

$

Usually ships in 3-6 days

0

13

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

14

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 16

0

16

White Outdoor 732-0735

Compression Spring
(Superseded to 732-0735A)

$31.99

$

In Stock, Qty 5

0

21

White Outdoor 738-0526

Running Board Rod

$

$

Not available

22

White Outdoor 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 726-0139

Speed Nut #10Z

$7.49

$

In Stock, only 2 left!

0

25

White Outdoor 710-0623

Hex Tap Scr. 3/8-16 x .75"

$4.49

$

In Stock, Qty 16

0

26

White Outdoor 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 17770A

Running Board (R.H. & L.H.)
(Superseded to 17770H)

Variations

White Outdoor 17770A-0480

BOARD-RUNNING - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 17770A-0483

BOARD-RUNNING - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 17770A-0499

BOARD-RUNNING - CUB BEIGE (0499)

$

$

Not available

White Outdoor 17770A-0629

BOARD-RUNNING - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 17770A-0637

BOARD-RUNNING - POWDER BLACK (0637)

$

$

Not available

White Outdoor 17770A-0660

BOARD-RUNNING - TEAL (0660)

$

$

Not available

White Outdoor 17770A-0662

BOARD-RUNNING - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 17770A-0665

BOARD-RUNNING - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 17770A-0667

BOARD-RUNNING - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 17770A-0692

BOARD-RUNNING - AGWAY BLUE (0692)

$

$

Not available

White Outdoor 17770A-0638

BOARD-RUNNING - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17770A-0648

BOARD-RUNNING - TECH GRAY (0648)

$

$

Not available

White Outdoor 17770A-0650

BOARD-RUNNING - RED METALLIC (0650)

$

$

Not available

White Outdoor 17770A-0663

BOARD-RUNNING - CAYMEN GREEN (0663)

$

$

Not available

White Outdoor 17770A-0691

BOARD-RUNNING - BLACK JACK (0691)

$

$

Not available

$

$

33

White Outdoor 710-1221

Pan Hd. Cutting Scr. 5/16-18 x .75" Lg.

$

$

Not available

34

White Outdoor 683-0065

Lower Frame
(Superseded to 683-0065-0637)

Variations

White Outdoor 683-0065-0637

FRAME-LOWER ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

35

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

36

White Outdoor 726-0278

Insulator Boss Plate

$7.49

$

In Stock, Qty 10

0

38

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

39

17830A

Upper Frame - R.H.

$

$

Not available

41

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 1 left!

0

42

White Outdoor 732-0581B

Extension Spring 5.31" Lg.
(Superseded to 932-0581B)

$15.99

$

In Stock, only 1 left!

0

43

White Outdoor 731-1200

Battery Cover

$

$

Not available

44

White Outdoor 725-1635

12-V Battery
(Superseded to 753-0608)

$

$

Not available

45

17831A

Upper Frame - L.H.

$

$

Not available

46

White Outdoor 783-0133

Shift Cover
(Superseded to 783-0133B)

Variations

White Outdoor 783-0133-0637

COVER-SHIFT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0133-0638

COVER-SHIFT - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0133-0648

COVER-SHIFT - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0133-0662

COVER-SHIFT - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-0133-0665

COVER-SHIFT - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0133-0667

COVER-SHIFT - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

48

White Outdoor 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

49

White Outdoor 17951

Seat Pivot Brkt. Support - L.H.
(Superseded to 17951A-0637)

Variations

White Outdoor 17951-0637

Seat Support Bracket, LH - POWDER BLACK (0637)

$28.99

$

In Stock, only 1 left!

0

$28.99

$

In Stock, only 1 left!

0

50

White Outdoor 17953

Hitch Plate

Variations

White Outdoor 17953-0637

No Longer Available PLATE-HITCH - POWDER BLACK (0637)

$

$

Not available

$

$

51

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

52

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

53

White Outdoor 17239A

Seat Lift Brkt.
(Superseded to 17239C)

$

$

Not available

54

White Outdoor 757-0370

Seat
(Superseded to 957-0370A)

$

$

Not available

55

White Outdoor 17950

Seat Pivot Brkt. Support - R.H.
(Superseded to 17950A-0637)

Variations

White Outdoor 17950-0637

Seat Support Bracket, RH - POWDER BLACK (0637)

$24.99

$

In Stock, only 1 left!

0

$24.99

$

In Stock, only 1 left!

0

56

White Outdoor 738-0296

Shld. Bolt .437" Dia. x .268"

$4.49

$

In Stock, Qty 20+

0

57

White Outdoor 725-1303

Spring Switch
(Superseded to 925-1303)

$6.99

$

In Stock, Qty 6

0

59

White Outdoor 710-0650

Hex Wash. TT-Tap Scr. 5/16-18 x 7/8" Lg.

$4.49

$

In Stock, Qty 20+

0

60

White Outdoor 731-0405

Snap Bushing

$

$

Not available

63

White Outdoor 725-1439

Safety Switch (Seat)

$8.99

$

In Stock, Qty 9

0

65

White Outdoor 17952

Battery Tray
(Superseded to 17952A-0637)

$

$

Not available

66

White Outdoor 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.99

$

In Stock, Qty 20+

0

67

White Outdoor 748-0347

Spring Spacer
(Superseded to 748-0347A)

$

$

Not available
