FST-16 (136R616G190) - White Outdoor 42" Lawn Tractor (1996) Electrical System Parts Diagram

42" Lawn Tractor

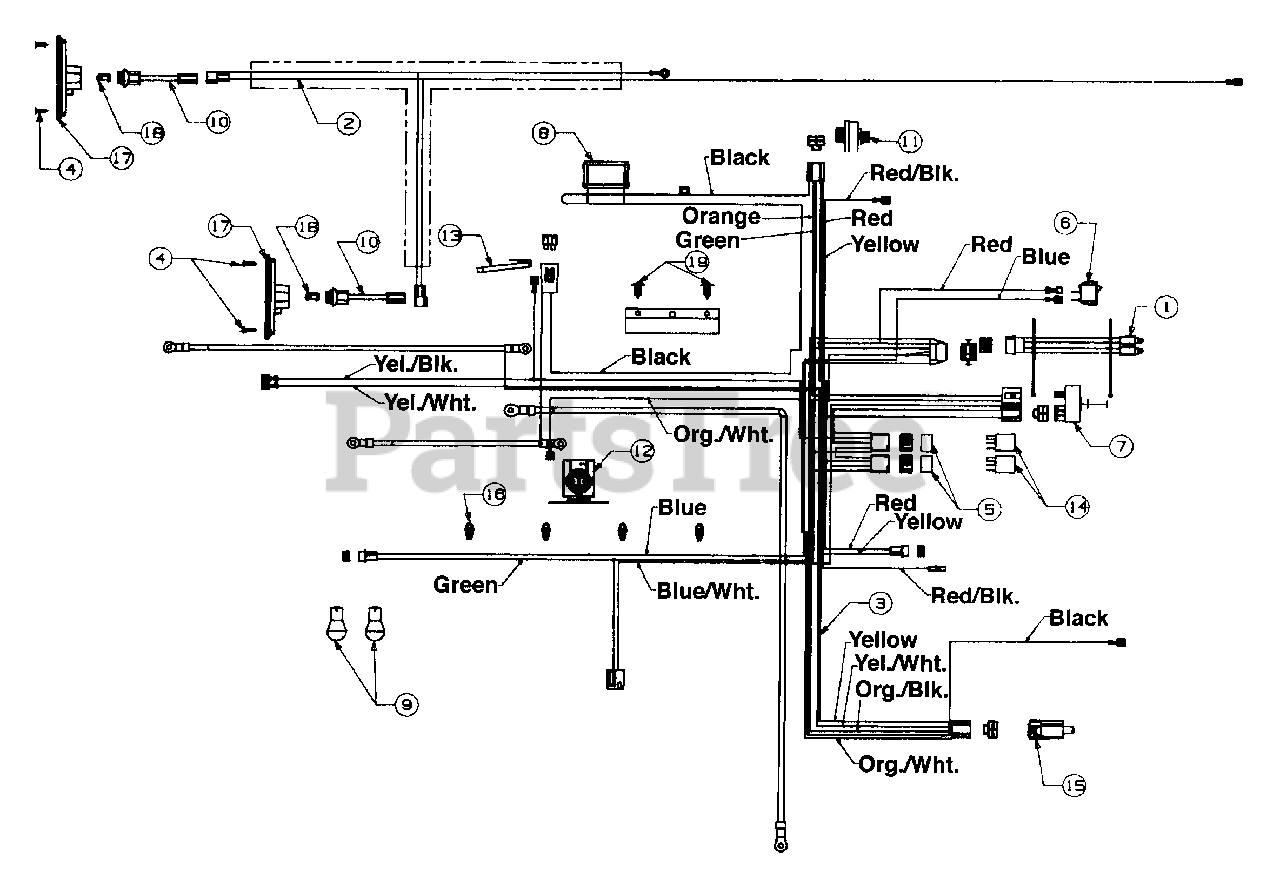

Electrical System Parts Diagram

  • Title

1

White Outdoor 629-0132

Wire Harness (Monitor)

$

$

Not available

2

White Outdoor 629-0134

Wire Harness (Tail light)

$

$

Not available

3

White Outdoor 629-0307

Wire Harness
(Superseded to 929-0307B)

$

$

Not available

4

White Outdoor 710-0936

Truss Mach. Scr. #6-32 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

5

White Outdoor 721-0342

Gasket - Relay
(Superseded to 921-0342)

$7.49

$

In Stock, only 3 left!

0

6

625-0634

Light Switch

$

$

Not available

7

White Outdoor 725-0893

PTO Switch
(Superseded to 925-0893)

$76.99

$

In Stock, Qty 15

0

8

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$28.99

$

In Stock, only 2 left!

0

9

White Outdoor 725-0963

Bulb (Headlight)
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

10

White Outdoor 725-1380

Tail light Harness

$

$

Not available

11

White Outdoor 725-1396

Ignition Switch
(Superseded to 925-1396A)

$40.99

$

In Stock, Qty 14

0

12

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$24.99

$

In Stock, Qty 20+

0

13

White Outdoor 725-1643

Safety Switch (Reverse)

$9.99

$

In Stock, only 1 left!

0

14

White Outdoor 725-1648

Relay
(Superseded to 925-1648A)

$43.99

$

In Stock, Qty 19

0

15

White Outdoor 725-1657A

Safety Switch
(Superseded to 925-1657A)

$22.99

$

In Stock, Qty 14

0

16

White Outdoor 725-1711

Wire Retainer Clip

$

$

Not available

17

725-3018

Tail light

$

$

Not available

18

White Outdoor 725-3020

Bulb (Tail light)
(Superseded to 925-3020)

$

$

Not available

19

White Outdoor 726-3046

Ratchet

$3.99

$

In Stock, Qty 20+

0

White Outdoor 725-1365

Bulb (Monitor - Not shown)
(Superseded to 925-1365)

$9.99

$

In Stock, only 4 left!

0
