FST-16 (13AR616G190) - White Outdoor 42" Lawn Tractor (1997) Hood, Grille And Controls Parts Diagram

42" Lawn Tractor

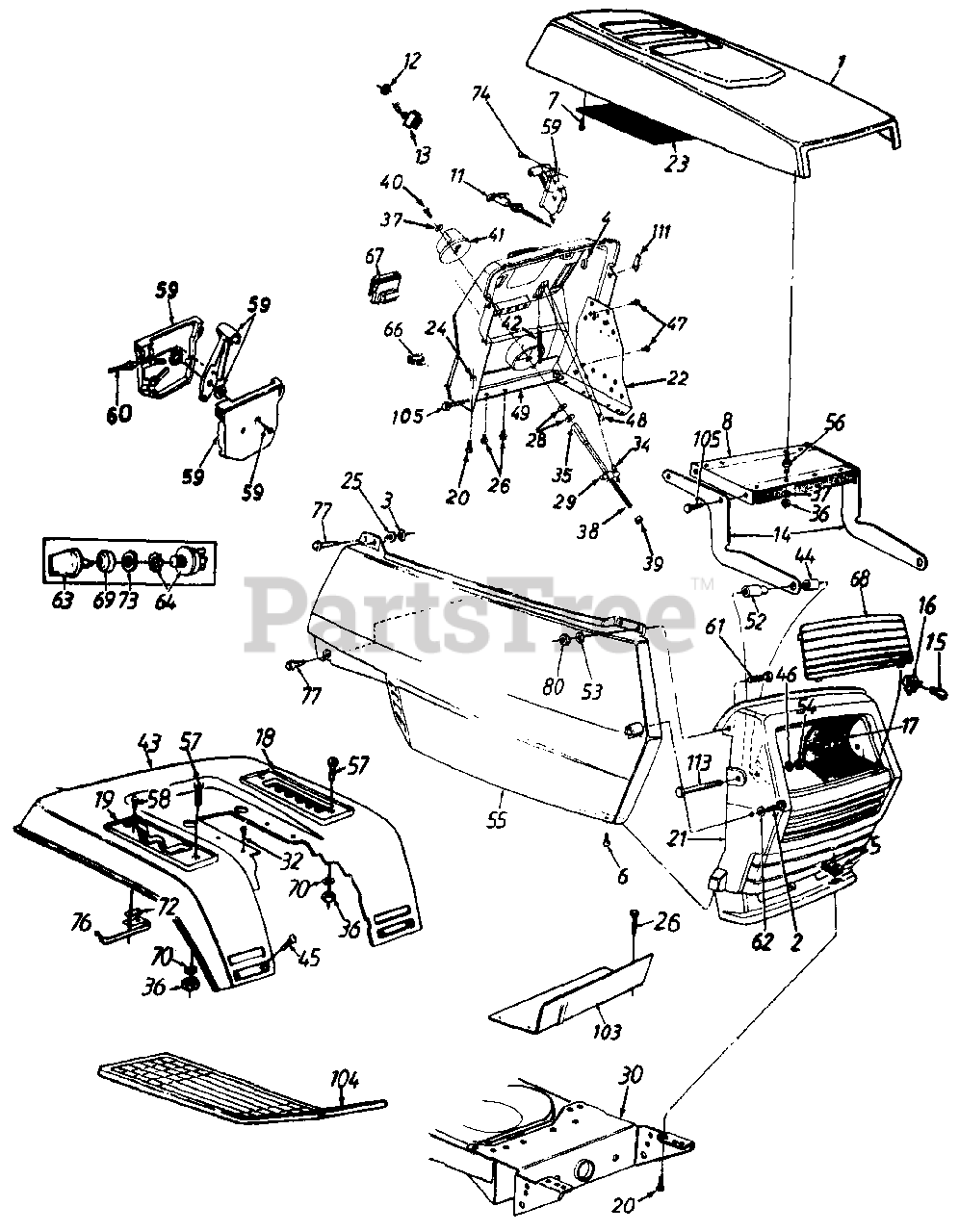

Hood, Grille And Controls Parts Diagram

  • Title

1

White Outdoor 731-1429

Hood
(Superseded to 931-1429)

$

$

Not available

2

White Outdoor 710-0896

Hex Wash. B-Tap Scr. 1/4 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 726-0233

Bolt Retainer 1/4" I.D.

$3.99

$

In Stock, Qty 7

0

4

White Outdoor 17782

Retainer Clip

$4.99

$

In Stock, only 3 left!

0

5

White Outdoor 726-0211

U-Nut 5/16-18 Thd.

$3.99

$

Usually ships in 3-6 days

0

6

White Outdoor 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, only 4 left!

0

7

White Outdoor 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 16903A

Hood Plate

Variations

White Outdoor 16903A-0637

PLATE-HOOD - POWDER BLACK (0637)

$

$

Not available

$

$

11

White Outdoor 746-3021

Choke Control

$26.99

$

In Stock, only 1 left!

0

12

White Outdoor 712-3014

Hex Nut 1/2-27 Thd.

$

$

Not available

13

White Outdoor 725-0893

Toggle Switch
(Superseded to 925-0893)

$76.99

$

In Stock, Qty 18

0

14

White Outdoor 16902A

Hood Hinge

Variations

White Outdoor 16902A-0637

No Longer Available HINGE-HOOD - POWDER BLACK (0637)

$

$

Not available

$

$

15

White Outdoor 725-0963

Lamp
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

16

White Outdoor 725-1649

Twist Lock - Lamp Socket
(Superseded to 925-1649A)

$10.99

$

In Stock, Qty 20+

0

17

777-8516

Reflector - Headlight

$

$

Not available

18

White Outdoor 731-1147

Forward/Reverse Index Brkt.
(Superseded to 931-1147)

$28.99

$

Usually ships in 3-6 days

0

19

White Outdoor 731-1746

7-Speed Selector Plate
(Superseded to 931-1746)

$

$

Not available

20

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 731-1430B

Grille
(Superseded to 931-1430B)

$

$

Not available

22

White Outdoor 17300D

Dash Support Bracket

Variations

White Outdoor 17300D-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

23

White Outdoor 723-0416

Screen

$

$

Not available

24

White Outdoor 712-0265

Hex Sems Nut 5/16-18 Thd.

$3.49

$

Usually ships in 3-6 days

0

25

UNKNOWN

$

$

Not available

26

White Outdoor 710-0607

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg.

$6.49

$

In Stock, Qty 20+

0

?27

White Outdoor 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.49

$

Usually ships in 3-6 days

0

28

White Outdoor 736-0267

Fl-Wash. 3 8" I.D. x .875" O.D.

$4.49

$

Usually ships in 3-6 days

0

29

White Outdoor 711-1002

Adj. Ferrule 3/8-8 Thd.

$

$

Not available

30

White Outdoor 783-0041A

Pivot Bar Brkt.
(Superseded to 783-0041C)

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 783-0041A-0483

Pivot Bar Bracket - CHARCOAL GRAY (0483)

$89.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0041A-0637

BRACKET-PIVOT BAR - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0041A-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0041A-0638

BRACKET-PIVOT BAR - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0041A-0648

BRACKET-PIVOT BAR - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0041A-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

$77.99

$

Usually ships in 3-6 days

0

32

White Outdoor 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

34

White Outdoor 714-0101

Hairpin Clip

$4.49

$

In Stock, only 4 left!

0

35

White Outdoor 716-0125

"E"-Ring .375" Dia.
(Superseded to 916-0125)

$

$

Not available

36

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

37

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 15

0

38

White Outdoor 747-0898

Adjustment Rod

$

$

Not available

39

White Outdoor 712-0449

Hex Nut 3/8-8 Twin Thd.

$

$

Not available

40

White Outdoor 710-3015

Hex Bolt 1/4-20 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

41

White Outdoor 720-0236

Plastic Knob
(Superseded to 920-0236)

$17.99

$

Usually ships in 3-6 days

0

42

White Outdoor 732-0732

Ext. Spring 3.21" Lg.

$

$

Not available

43

White Outdoor 783-0370

Rear Fender

Variations

White Outdoor 783-0370-0483

No Longer Available FENDER-4WS - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0370-0629

No Longer Available FENDER-4WS - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 783-0370-0638

No Longer Available FENDER-4WS - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0370-0648

No Longer Available FENDER-4WS - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0370-0662

No Longer Available FENDER-4WS - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-0370-0665

No Longer Available FENDER-4WS - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0370-0667

No Longer Available FENDER-4WS - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 783-0370-0674

No Longer Available FENDER-4WS - YARDMAN YELLOW (0674)

$

$

Not available

$

$

44

White Outdoor 750-0755

Spacer .33" I.D. x .625" O.D.

$3.99

$

Usually ships in 3-6 days

0

45

White Outdoor 710-0167

Carriage Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

46

White Outdoor 736-0278

Fl-Wash. .328" I.D. x .68" O.D.

$5.49

$

Usually ships in 3-6 days

0

47

White Outdoor 710-0599

Hex Wash. Hd. Scr. 1/4-20 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

48

White Outdoor 727-0460

indicator Strip
(Superseded to 927-0460A)

$

$

Not available

49

White Outdoor 783-0120

Indicator Bracket

Variations

White Outdoor 783-0120-0637

BRACKET-INDICATOR - POWDER BLACK (0637)

$

$

Not available

$

$

?50

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

52

White Outdoor 750-0754

Shld. Spacer .33" I.D.

$

$

Not available

53

White Outdoor 736-0142

Fl-Wash. .281" I.D. x .5" O.D.

$4.49

$

Usually ships in 3-6 days

0

54

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

55

White Outdoor 731-1890

Side Cover - R.H.

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

White Outdoor 731-1891

Side Cover - L.H.

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

56

White Outdoor 710-1034

Double Ended Stud 1/4-20 Thd.

$

$

Not available

57

White Outdoor 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

58

White Outdoor 710-0227

Hex Wash Hd. AB-Tap Scr. #8 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

59

White Outdoor 831-0823A

Throttle Control Box Ass'y.

$30.99

$

In Stock, Qty 20+

0

60

White Outdoor 746-0775

Throttle Control Wire 22" Lg.

$15.99

$

Usually ships in 3-6 days

0

61

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

62

White Outdoor 736-0173

Fl-Wash. .281" I.D. x .73" O.D.

$3.99

$

In Stock, Qty 10

0

63

White Outdoor 725-1341B

Ignition Key

$9.99

$

In Stock, only 3 left!

0

64

White Outdoor 725-1396

Ignition Switch
(Superseded to 925-1396A)

$40.99

$

In Stock, Qty 15

0

?65

White Outdoor 731-1510

Dash Panel
(Superseded to 931-1510)

$

$

Not available

66

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$16.99

$

In Stock, Qty 5

0

67

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$28.99

$

Usually ships in 3-6 days

0

68

White Outdoor 731-1038

Lens
(Superseded to 931-1038A)

$

$

Not available

69

White Outdoor 725-1347

Ignition Switch Cap

$4.49

$

In Stock, only 4 left!

0

70

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

72

White Outdoor 726-0320

insulator Nut Plate
(Superseded to 926-0320)

$6.49

$

In Stock, Qty 11

0

73

White Outdoor 725-1346

Ignition Switch Nut
(Superseded to 925-1346)

$

$

Not available

74

White Outdoor 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

76

White Outdoor 725-1643

Reverse Safety Switch

$9.99

$

In Stock, only 1 left!

0

77

White Outdoor 710-0642

Hex Wash. Hd. Tap Scr. 1/4 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

80

White Outdoor 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 9

0

?94

White Outdoor 712-0147

Speed Nut #10-24 Thd.

$6.49

$

Usually ships in 3-6 days

0

103

White Outdoor 17633A

Gasoline Tank Support

Variations

White Outdoor 17633A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

104

White Outdoor 731-0909

Rubber Foot Pad - L.H.
(Superseded to 735-04009)

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

White Outdoor 731-0910

Rubber Foot Pad - R.H.
(Superseded to 735-0689A)

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

105

White Outdoor 710-0599

Hex Tap Scr. 1/4-20 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

111

White Outdoor 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

113

White Outdoor 710-0176

Hex Bolt 5/16-18 x 2.75"

$4.49

$

In Stock, only 3 left!

0

White Outdoor 629-0309

Headlight Harness
(Superseded to 929-0469B)

Note: (Not shown)

$55.99

$

Usually ships in 3-6 days

0
