FT-24 (21A-395A756) - Cub Cadet Front-Tine Tiller (2007) Carburetor Parts Diagram

Front-Tine Tiller

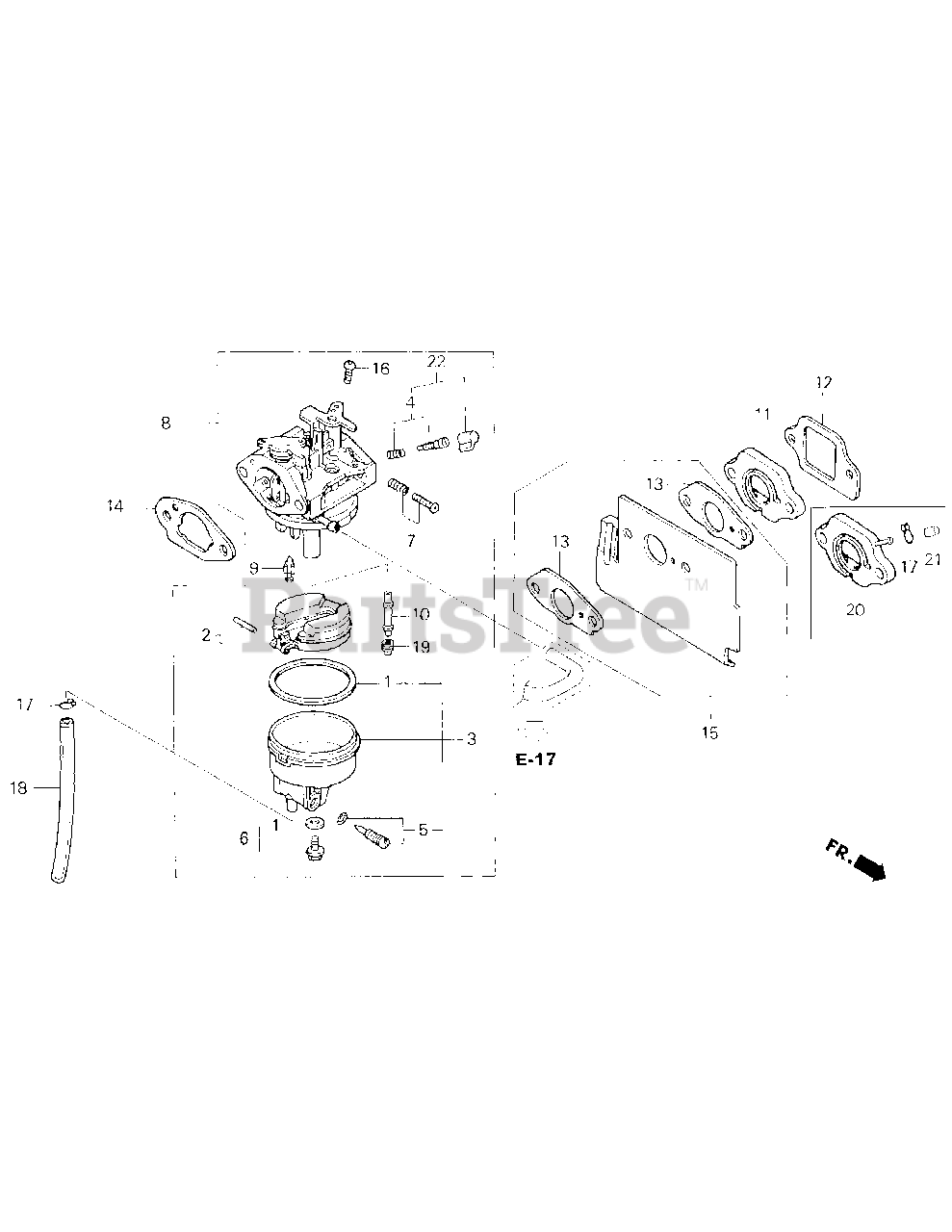

Carburetor Parts Diagram

  • Title

1

Honda 16010-883-015

GASKET SET

$12.99

$

In Stock, Qty 20+

0

2

Honda 16013-ZL1-003

FLOAT SET

$31.99

$

Usually ships in 3-6 days

0

3

Honda 16015-ZL8-003

CHAMBER SET, FLOAT

$34.99

$

Usually ships in 3-6 days

0

5

Honda 16024-124-760

SCREW SET, DRAIN

$14.99

$

Usually ships in 3-6 days

0

6

Honda 16028-ZE0-005

SCREW SET B
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

7

Honda 16029-ZG0-901

SCREW SET

$11.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 16100-ZL8-802

CARBURETOR ASSY.
(Superseded to 16100-Z0J-013)

Note: Carb No.(BB61B C)

$43.99

$

Usually ships in 3-6 days

0

8

Honda 16100-ZL8-803

CARBURETOR ASSY.
(Superseded to 16100-Z0J-013)

Note: Carb No (BB61B D)

$43.99

$

Usually ships in 3-6 days

0

9

Honda 16155-ZL8-003

VALVE, FLOAT

Note: (BB61B C)

$38.99

$

Usually ships in 3-6 days

0

9

Honda 16155-ZL8-013

VALVE, FLOAT

Note: (BB61B D)

$28.99

$

Usually ships in 3-6 days

0

10

Honda 16166-ZL8-003

NOZZLE, MAIN

$23.99

$

Usually ships in 3-6 days

0

11

Honda 16211-ZL8-000

INSULATOR, CARBURETOR

$4.49

$

In Stock, Qty 20+

0

12

Honda 16212-ZL8-000

GASKET, INSULATOR

$7.99

$

In Stock, Qty 20+

0

13

Honda 16221-883-800

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

14

Honda 16228-ZL8-000

GASKET, CARBURETOR (CHOKE SIDE)

$2.49

$

In Stock, Qty 20+

0

15

Honda 19650-ZL8-000

GUIDE, AIR

$11.99

$

In Stock, only 1 left!

0

16

Honda 93500-05006-0H

SCREW, PAN (5X6)

$0.99

$

In Stock, Qty 10

0

17

Honda 95002-02650

CLIP, TUBE (B6.5)

$1.99

$

In Stock, only 2 left!

0

18

Honda 95003-07008-60M

BULK HOSE, VINYL (4X7X8000) (4X7X150)

$36.99

$

In Stock, only 1 left!

0

19

Honda 99101-124-0600

JET, MAIN (#60)

$12.99

$

In Stock, Qty 7

0

19

Honda 99101-124-0620

JET, MAIN (#62)

$11.99

$

In Stock, only 1 left!

0

19

Honda 99101-124-0650

JET, MAIN (#65)

$12.99

$

In Stock, only 1 left!

0

22

Honda 16016-ZG0-W00

SCREW SET (CARBURETOR NO.)

$12.99

$

In Stock, only 1 left!

0
