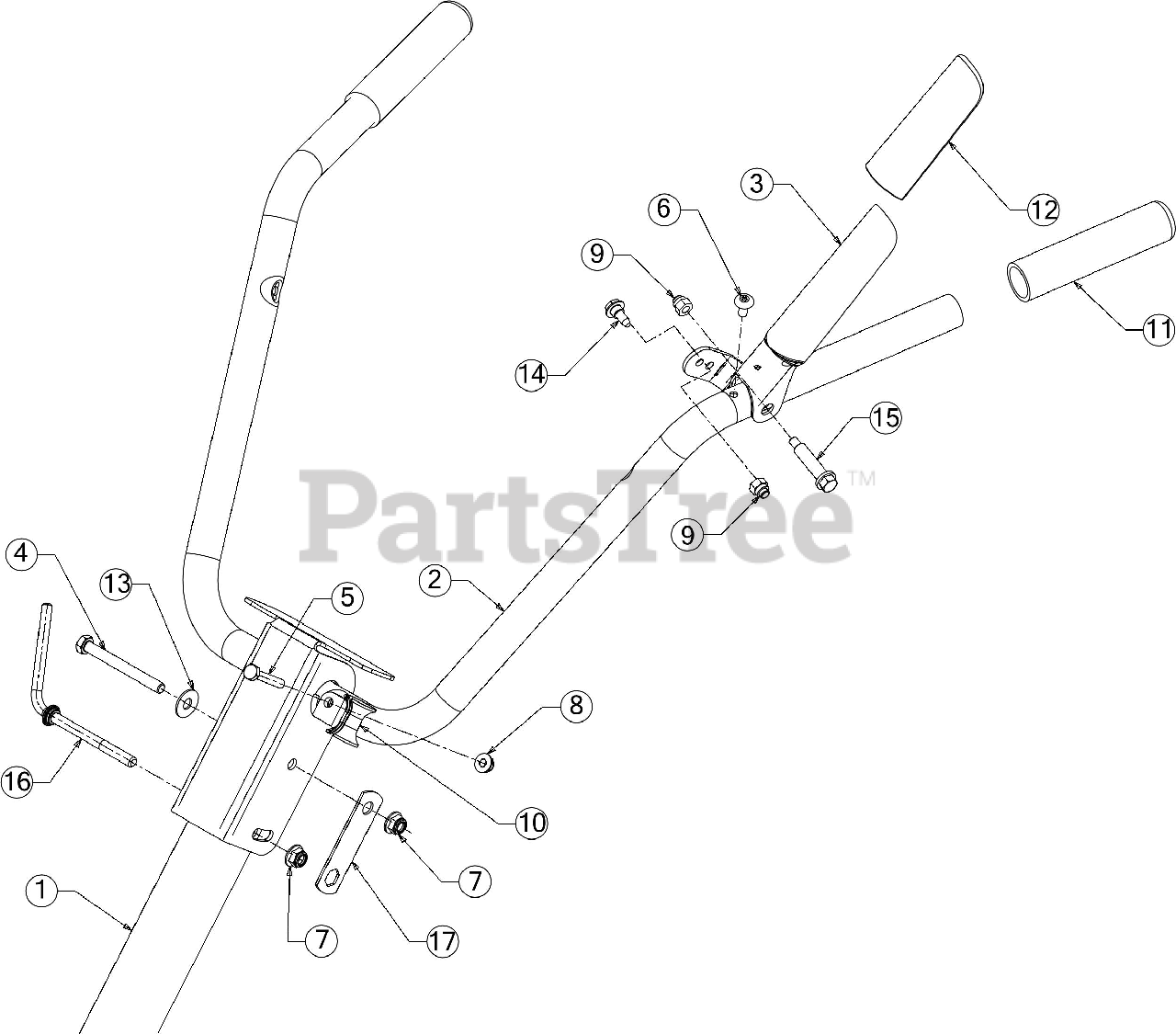

FT-24 (21B-34M8756) - Cub Cadet Front-Tine Tiller (2016) Handle Assembly Parts Diagram

Front-Tine Tiller

Handle Assembly Parts Diagram

  • Title

1

Cub Cadet 649-04023-4021

HANDLE TUBE ASSEMBLY

$54.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 649-04038A-4021

HANDLE ASSEMBLY

$73.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 686-0002-0637

CLUTCH LEVER ASSEMBLY

$43.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0189

HEX SCREW 5/16-18 X 3.00

$6.49

$

In Stock, Qty 5

0

5

Cub Cadet 710-0606

SCREW 1/4-20 X 1.50 GR.5

$5.99

$

In Stock, Qty 7

0

6

Cub Cadet 710-1017

SCREW 1/4-14 X .625

$8.99

$

In Stock, Qty 14

0

7

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04064

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 912-0442

HEX ACORN NUT
(Superseded to 712-0442)

$

$

Not available

10

Cub Cadet 719-0279

ROPE GUIDE

$16.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 720-0274

GRIP

$12.99

$

In Stock, only 2 left!

0

12

Cub Cadet 731-0473

GRIP

$4.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 736-0242

BELL WASHER .337 X.867 X .057

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 938-1225

SHOULDER SCREW
(Superseded to 738-1225)

$

$

Not available

15

Cub Cadet 938-1226

SHOULDER SCREW
(Superseded to 738-1226)

$8.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 786-0340B

CRANK ADJUST HANDLE

$20.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 786-0341

RETAINING HEX BRACKET

$9.99

$

Usually ships in 3-6 days

0
