FT-24 R (21A-39M8710) - Cub Cadet Front-Tine Tiller (2017) Belt Cover Parts Diagram

Front-Tine Tiller

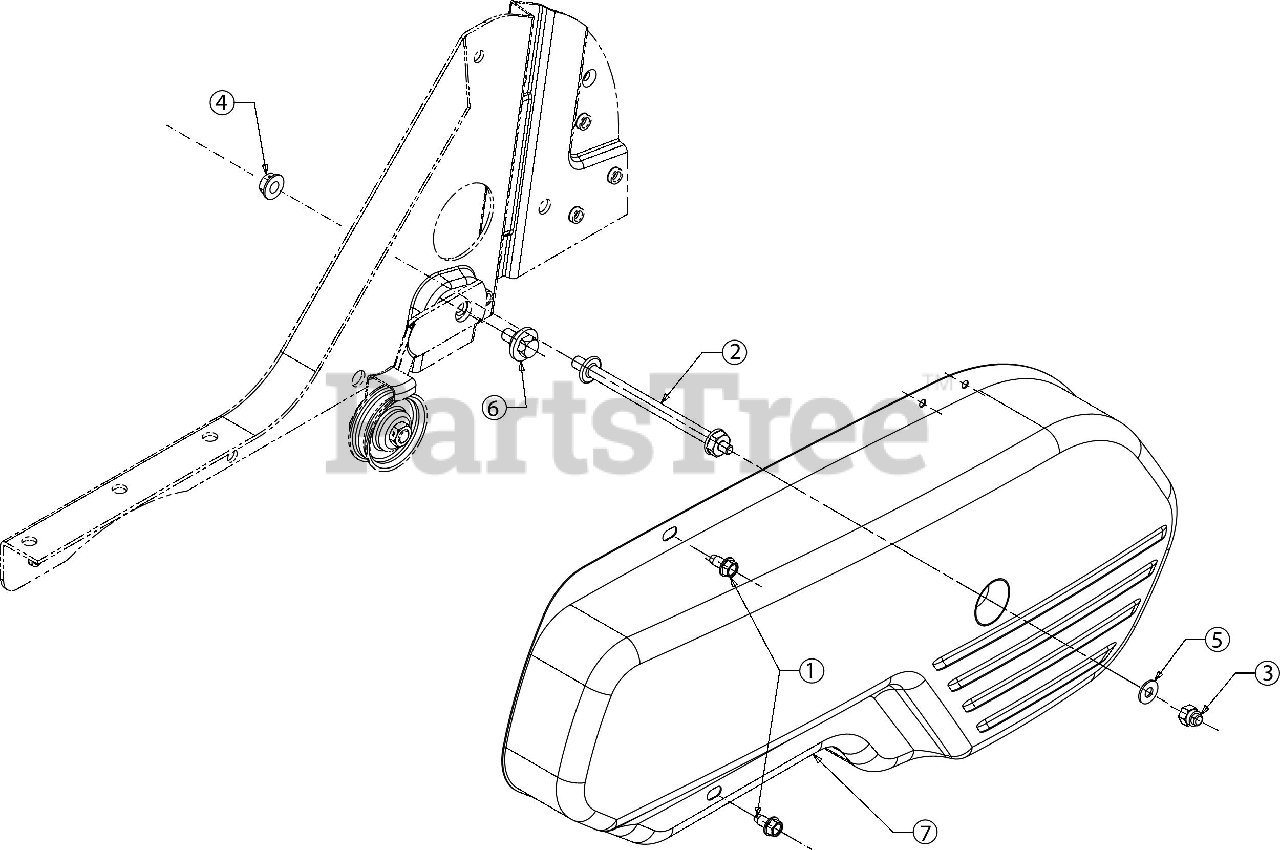

Belt Cover Parts Diagram

  • Title

1

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 711-0920

BELT COVER BOLT

$30.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 912-0442

HEX ACORN NUT
(Superseded to 712-0442)

$

$

Not available

4

Cub Cadet 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 936-3020

FLAT WASHER .271:.630:.065
(Superseded to 736-3020)

$

$

Not available

6

Cub Cadet 738-0930

SHOULDER SCREW .560X.165: 5/16-18

$6.99

$

In Stock, only 1 left!

0

7

Cub Cadet 786-0057

BELT COVER

Note: (Choose Color When Ordering)

Variations

Cub Cadet 786-0057-0483

COVER BELT - CHARCOAL GRAY (0483)

$92.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0057-0498

COVER BELT - OLD CUB YELLOW (0498)

$92.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0057-0606

COVER-BETL - MAJESTIC ORANGE (0606)

$80.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0057-0638

COVER-BELT - MTD/TROY-BILT RED (0638)

$99.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0057-0662

COVER BELT - OYSTER GRAY (0662)

$92.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0057-0665

COVER BELT - YARDMAN GREEN (0665)

$80.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0057-0691

COVER BELT - BLACK JACK (0691)

$92.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0057-0716

COVER BELT - CUB YELLOW-99 (0716)

$92.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0057-4021

COVER BELT - CUB YELLOW 2 (4021)

$92.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0057-4033

COVER-BELT - FLINT MICA (4033)

$92.99

$

Usually ships in 3-6 days

0

$80.99

$

Usually ships in 3-6 days

0
