FT 3 C - Poulan Pro Front-Tine Tiller HANDLE ASSEMBLY Parts Diagram

Front-Tine Tiller

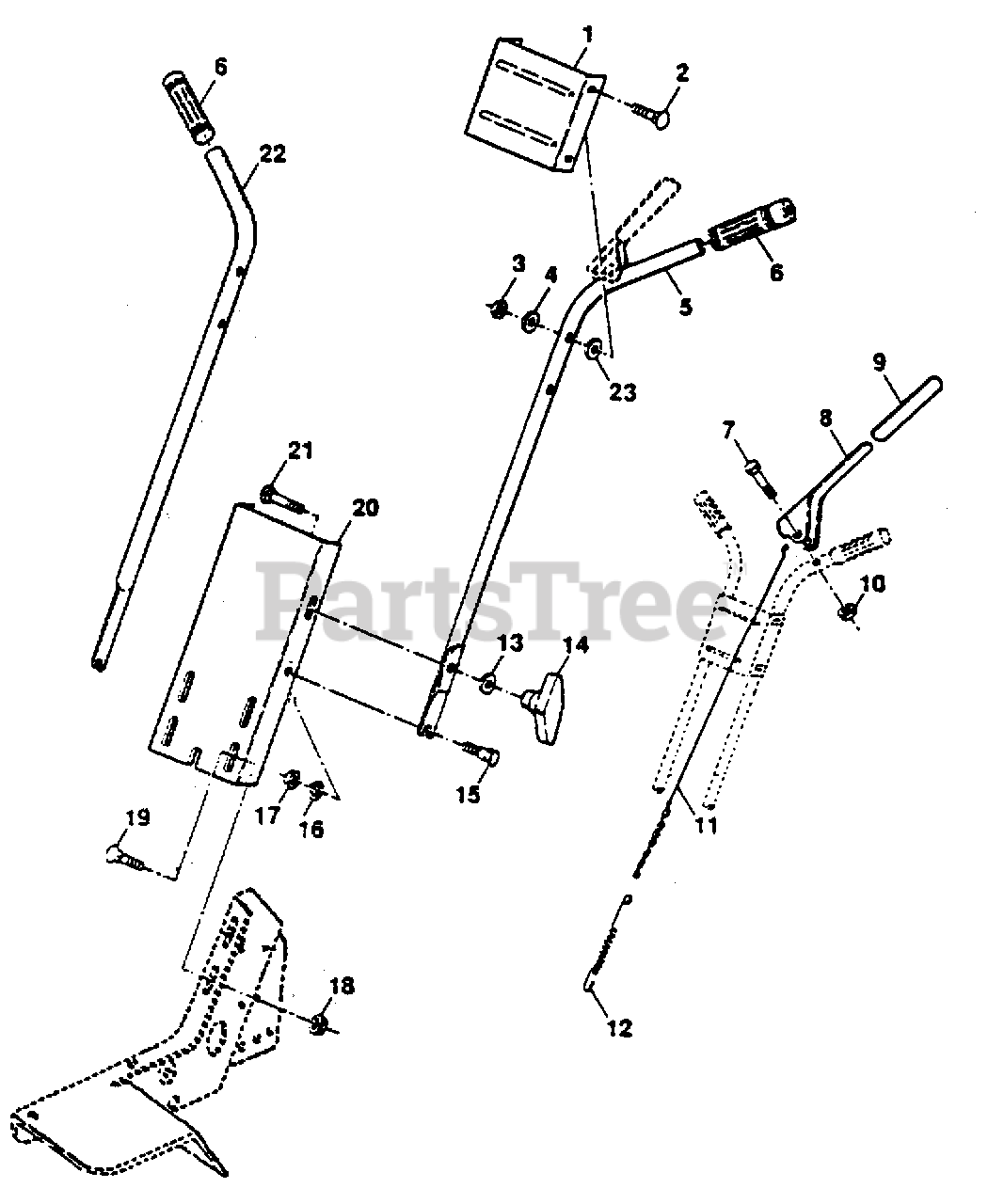

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Poulan 532125461

Bracket, Handle (AYP part number)
(Superseded to 532446249)

$6.49

$

Usually ships in 3-10 days

0

2

Poulan 872140512

Bolt, Carriage 5/16-18 UNC x 1-1/2 (AYP part number)
(Superseded to 582736101)

$

$

Not available

3

Poulan 873680500

Locknut, Crown 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

4

Poulan 819111116

Washer 11/32 x 11/16 x 16 Ga. (AYP part number)
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

5

Poulan 532144539

Handle, L.H. (AYP part number)

$

$

Not available

6

Poulan 532140536

Grip, Handle (AYP part number)

$8.99

$

Usually ships in 3-10 days

0

7

Poulan 874760524

Bolt, Hex 5/16-18 x 1-1/2 (AYP part number)
(Superseded to 74760524)

$2.49

$

Usually ships in 3-10 days

0

8

Poulan 532003069

Lever, Control, Tine (AYP part number)

$

$

Not available

9

Poulan 532124797

Grip, Lever (AYP part number)
(Superseded to 532008206)

$6.49

$

Usually ships in 3-10 days

0

10

Poulan 532124949

Nut, Hex (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 532003067

Cable, Control, Tine (AYP part number)

$

$

Not available

12

Poulan 532003070

Spring, Extension (AYP part number)

$

$

Not available

13

Poulan 819121414

Washer 3/8 x 7/8 x 14 Ga. (AYP part number)
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0

14

Poulan 532136376

Knob, Handle (AYP part number)
(Superseded to 532183724)

$

$

Not available

15

Poulan 532000471

Bolt, Shoulder 5/16-18 x 3/4 (AYP part number)

$

$

Not available

16

Poulan 810040500

Washer, Lock 5/16 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 873220500

Nut, Hex 5/16-18 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

18

Poulan 898000129

Nut, Flanged 5/16-18 (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

19

Poulan 872140506

Bolt, Carriage 5/16-18 x 3/4 Gr. 5
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

20

Poulan 532125462

Panel, Handle (AYP part number)

$27.99

$

Usually ships in 3-10 days

0

21

Poulan 872110510

Bolt, Carriage 5/16-18 x 1-1/4 Gr. 5 (AYP part number)

$7.49

$

In Stock, Qty 20+

0

22

Poulan 532144540

Handle, R.H. (AYP part number)

$

$

Not available

23

Poulan 819131312

Washer 13/32 x 13/16 x 12 Ga. (AYP part number)
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0
