FT 35 A - Poulan Pro Front-Tine Tiller Handle Assembly Parts Diagram

Front-Tine Tiller

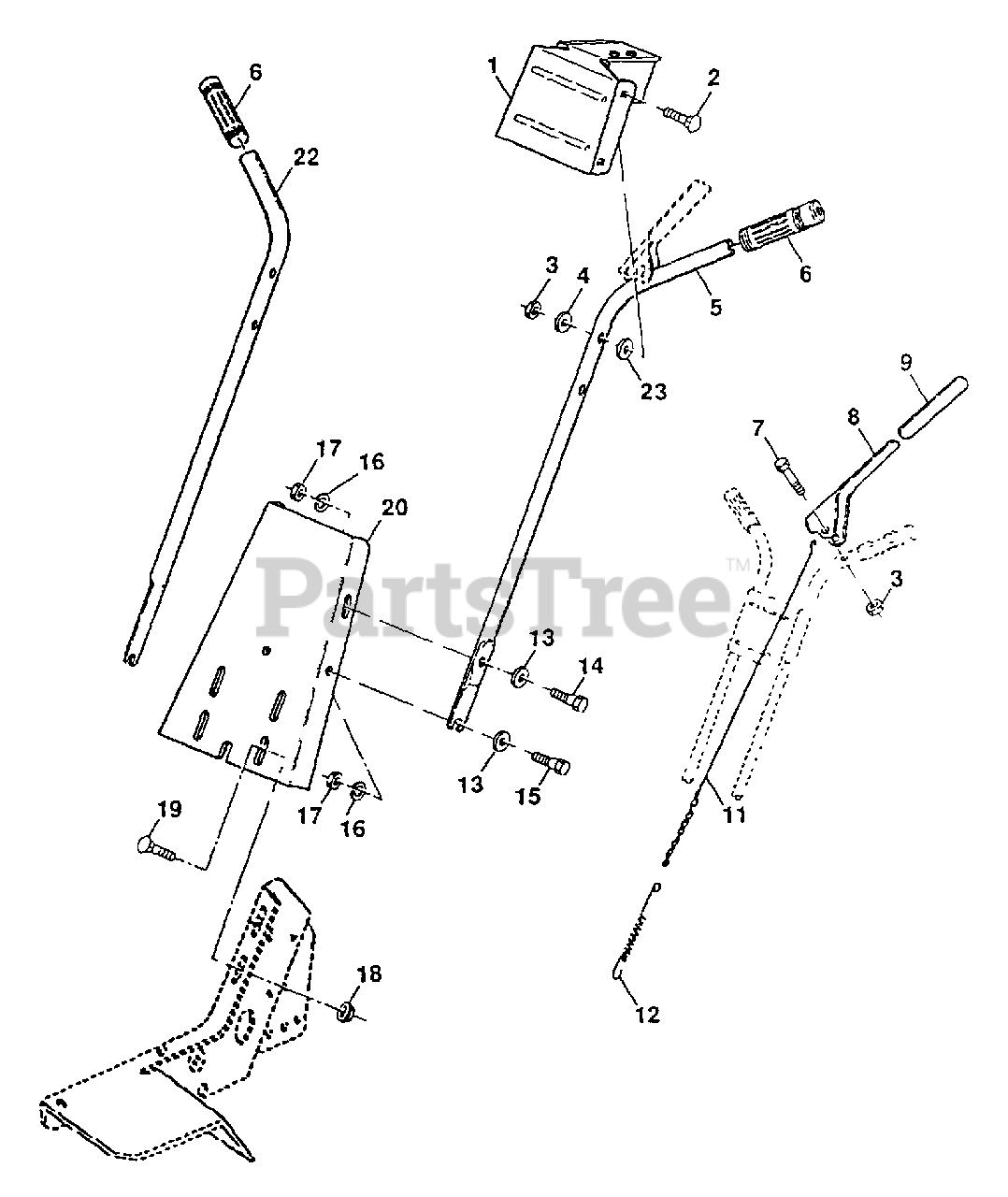

Handle Assembly Parts Diagram

  • Title

1

Poulan 137176X421

Bracket, Handle
(Superseded to 532125461)

$6.49

$

Usually ships in 3-10 days

0

2

Poulan 72140512

Bolt, Carriage 5/16-18 UNC x 1-1/2
(Superseded to 582736101)

$

$

Not available

3

Poulan 73680500

Locknut, Crown 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

4

Poulan 19111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

5

Poulan 151473

Handle, L.H.
(Superseded to 582981601)

$14.99

$

Usually ships in 3-10 days

0

6

Poulan 624A78

Grip, Handle
(Superseded to 532009266)

$

$

Not available

7

Poulan 74760524

Bolt, Hex 5/16-18 x 1-1/2

$2.49

$

Usually ships in 3-10 days

0

8

Poulan 3069J

Lever, Control, Tine
(Superseded to 583014501)

$

$

Not available

9

Poulan 8206H

Grip, Lever
(Superseded to 532008206)

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 100382K

Cable, Control, Tine
(Superseded to 583636801)

$6.99

$

Usually ships in 3-10 days

0

12

Poulan 3070J

Spring, Extension
(Superseded to 583731801)

$

$

Not available

13

Poulan 19121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

14

Poulan 74760516

Bolt, Hex Hd 5/16-18 x 1 (AYP part number)

$

$

Not available

15

Poulan 74760512

Bolt, Hex Hd 5/16-18 x 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

16

Poulan 10040500

Washer, Lock 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 73220500

Nut, Hex 5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

18

Poulan 98000129

Nut, Flanged 5/16-18 (AYP part number)
(Superseded to 532426589)

$6.49

$

In Stock, Qty 18

0

19

Poulan 72140506

Bolt, Carriage 5/16-18 x 3/4 Gr. 5
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

20

Poulan 9209R421

Panel, Handle
(Superseded to 532125462)

$27.99

$

Usually ships in 3-10 days

0

22

Poulan 151474

Handle, R.H.
(Superseded to 584447801)

$14.99

$

Usually ships in 3-10 days

0

23

Poulan 19131312

Washer 13/32 x 13/16 x 12 Ga
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0
