FT 5 (954003311) - Jonsered Front-Tine Tiller (1996-01) WHEEL DEPTH STAKE ASSEMBLY Parts Diagram

Front-Tine Tiller

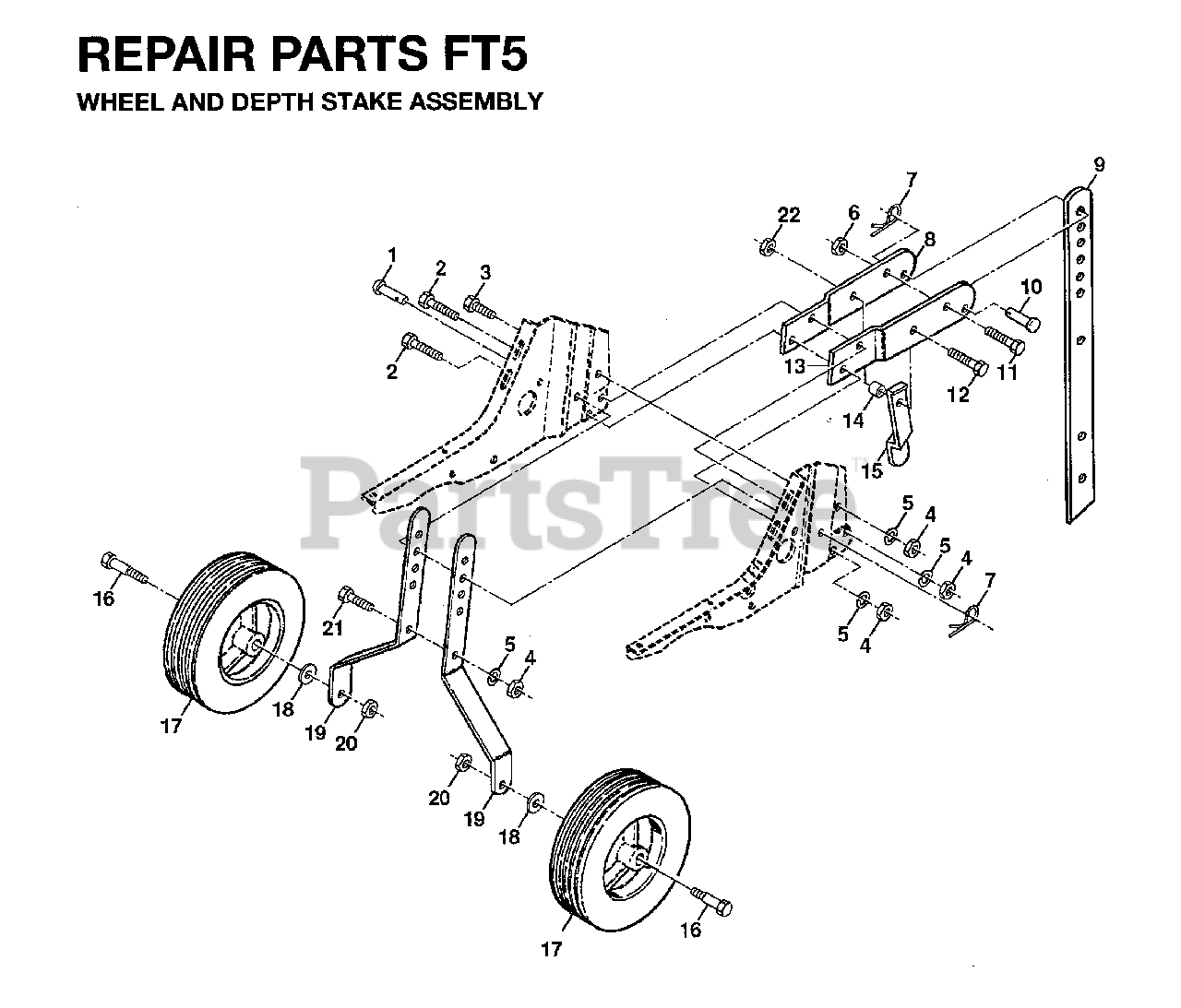

WHEEL DEPTH STAKE ASSEMBLY Parts Diagram

  • Title

1

Jonsered 532009194

PIN
(Superseded to 532443676)

$7.49

$

In Stock, Qty 19

0

2

Jonsered 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

3

Jonsered 874780512

BOLT
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

4

Jonsered 873220500

NUT

$6.49

$

Usually ships in 3-10 days

0

5

Jonsered 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

6

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

7

Jonsered 532004921

SPRING.RETAINER

$6.49

$

In Stock, only 2 left!

0

8

Jonsered 532001952

SUPPORT.STAKE.RH.BLACK

$

$

Not available

9

Jonsered 532122233

RP STAKE.DEPTH.13.25.W/9HOLES
(Superseded to 532446066)

$53.99

$

In Stock, only 1 left!

0

10

Jonsered 532004929

RIVET TI

$7.49

$

In Stock, only 3 left!

0

11

Jonsered 874780628

BOLT
(Superseded to 582740701)

$6.49

$

In Stock, Qty 5

0

12

Jonsered 874780524

HEX BOLT
(Superseded to 596582201)

$3.99

$

In Stock, Qty 18

0

13

Jonsered 532001951

No Description Available
(Superseded to 532149209)

$

$

Not available

14

Jonsered 532120958

WASHER

$

$

Not available

15

Jonsered 532005388

No Description Available
(Superseded to 532124724)

$

$

Not available

16

Jonsered 532121117

BOLT.SHOULDER

$8.99

$

In Stock, Qty 10

0

17

Jonsered 532127832

No Description Available
(Superseded to 148436)

$9.49

$

Usually ships in 3-10 days

0

18

Jonsered 734117201

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

19

Jonsered 532009190

RP BRACKET
(Superseded to 532446011)

$

$

Not available

20

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

21

Jonsered 874780516

BOLT RB

$6.49

$

Usually ships in 3-10 days

0

22

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0
