FT 5 - Jonsered Front-Tine Tiller (1995-01) MAINFRAME LEFT SIDE Parts Diagram

Front-Tine Tiller

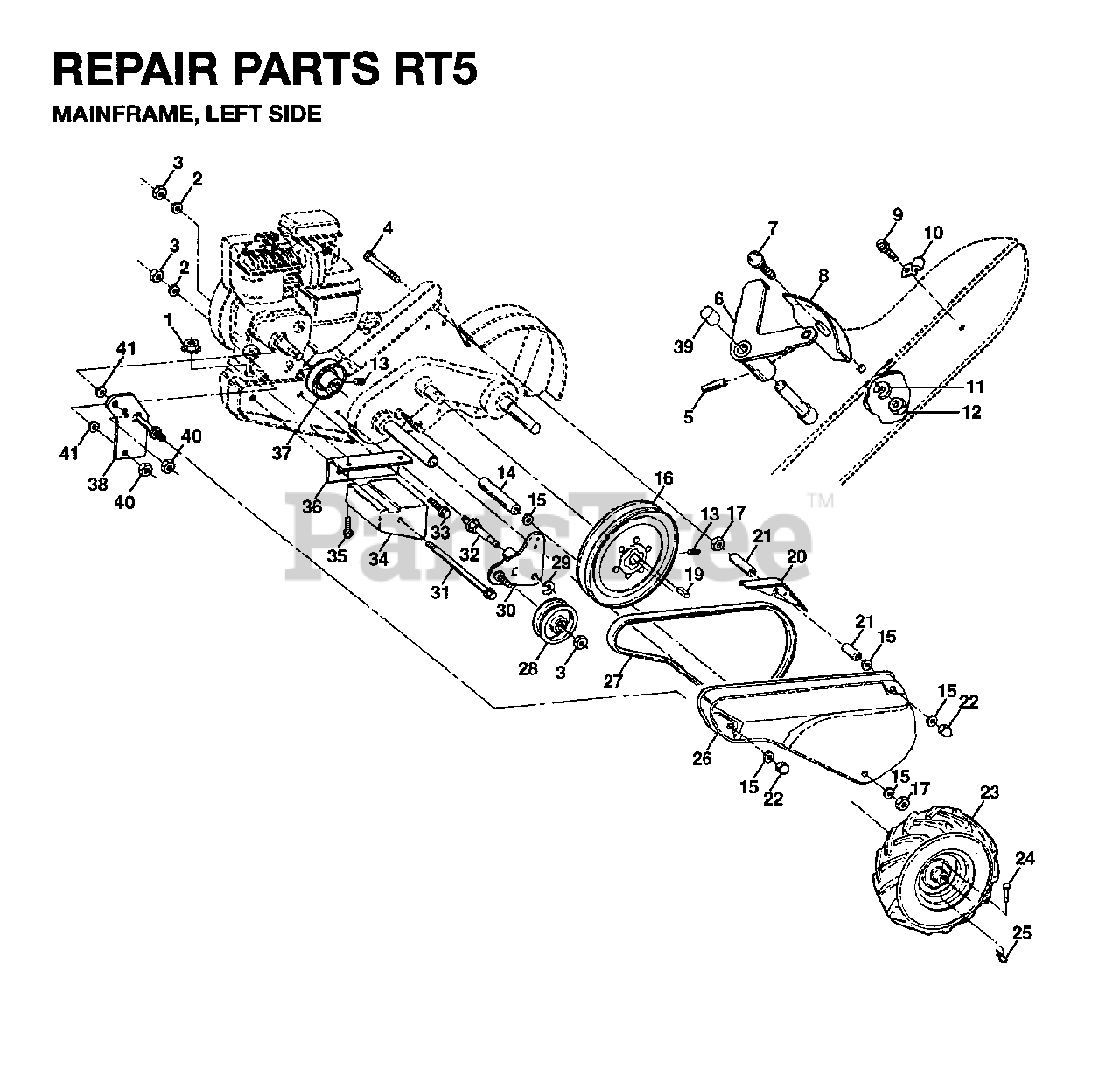

MAINFRAME LEFT SIDE Parts Diagram

  • Title

1

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

2

Jonsered 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$3.49

$

Usually ships in 3-10 days

0

3

Jonsered 873220600

NUT.HEX.3/8-16UNC

$6.49

$

In Stock, only 4 left!

0

4

Jonsered 874930568

BOLT TI

$

$

Not available

5

Jonsered 532002882

DRIVE PIN
(Superseded to 532001572)

$

$

Not available

6

Jonsered 532110111

LEVER ASM CRT

$18.99

$

In Stock, only 1 left!

0

7

Jonsered 872110404

BOLT

$6.49

$

Usually ships in 3-10 days

0

8

Jonsered 532008700

PANEL TI

$4.99

$

In Stock, only 1 left!

0

9

Jonsered 817021008

SCREW

$4.99

$

In Stock, Qty 20+

0

10

Jonsered 532009484

CONDUIT CLIP T

$6.49

$

In Stock, only 4 left!

0

11

Jonsered 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

12

Jonsered 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

13

Jonsered 823230506

SET SCREW **

$4.99

$

In Stock, only 2 left!

0

14

Jonsered 532120938

SPACER
(Superseded to 120938X)

$

$

Not available

15

Jonsered 734116301

WASHER - 15X7.3X1.6
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

16

Jonsered 532100473

SHEAVE 10" CRT

$

$

Not available

17

Jonsered 873220500

NUT

$6.49

$

Usually ships in 3-10 days

0

18

Jonsered 532110651

SPACER CRT

$

$

Not available

19

Jonsered 532002649

KEY T

$4.99

$

In Stock, only 1 left!

0

20

Jonsered 532110653

GUARD CRT

$

$

Not available

21

Jonsered 532131691

SPACER SPLIT

$6.49

$

Usually ships in 3-10 days

0

22

Jonsered 532104214

NUT TI

$4.99

$

Usually ships in 3-10 days

0

23

Jonsered 532005015

TIRE

$145.99

$

In Stock, only 2 left!

0

5321289-52

Jonsered 532128952

WHEEL.8X2-3/4.TILLER /RIM ONLY

$109.99

$

Usually ships in 3-10 days

0

5320651-39

Jonsered 532065139

VALVE STEM LT

$10.99

$

In Stock, Qty 20+

0

24

Jonsered 532126875

RIVET,DRILLED

$6.49

$

In Stock, Qty 20+

0

25

Jonsered 532124788

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

26

Jonsered 532125408

No Description Available

$

$

Not available

27

Jonsered 532132801

V-BELT
(Superseded to 591372401)

$12.99

$

In Stock, Qty 20+

0

28

Jonsered 532104679

PULLEY-IDLER TI

$18.99

$

In Stock, Qty 5

0

29

Jonsered 812000032

KLIP RING

$7.49

$

Usually ships in 3-10 days

0

30

Jonsered 532105611

BRACKET ASSY TI
(Superseded to 532159229)

$

$

Not available

31

Jonsered 532102384

BOLT.FIN.HEX.3/8-16UNC

$6.49

$

Usually ships in 3-10 days

0

32

Jonsered 532102141

SHIFT ARM CRT

$6.49

$

Usually ships in 3-10 days

0

33

Jonsered 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

34

Jonsered 532102383

COUNTERWEIGHT.LH.CRT

$133.99

$

Usually ships in 3-10 days

0

35

Jonsered 874780524

HEX BOLT
(Superseded to 596582201)

$3.99

$

In Stock, Qty 18

0

36

Jonsered 532102331

BRACKET LH CRT
(Superseded to 584366901)

$4.99

$

Usually ships in 3-10 days

0

37

Jonsered 532130812

ENGINE PULLEY
(Superseded to 592642101)

$12.99

$

In Stock, only 1 left!

0

38

Jonsered 532131556

BRACKET

$

$

Not available

39

Jonsered 532140062

CAP.PLUNGER.BLACK

$6.49

$

In Stock, only 1 left!

0

40

Jonsered 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

41

Jonsered 734115301

WASHER

$

$

Not available
