FT 5 - Jonsered Front-Tine Tiller (1995-01) TINE SHIELD Parts Diagram

Front-Tine Tiller

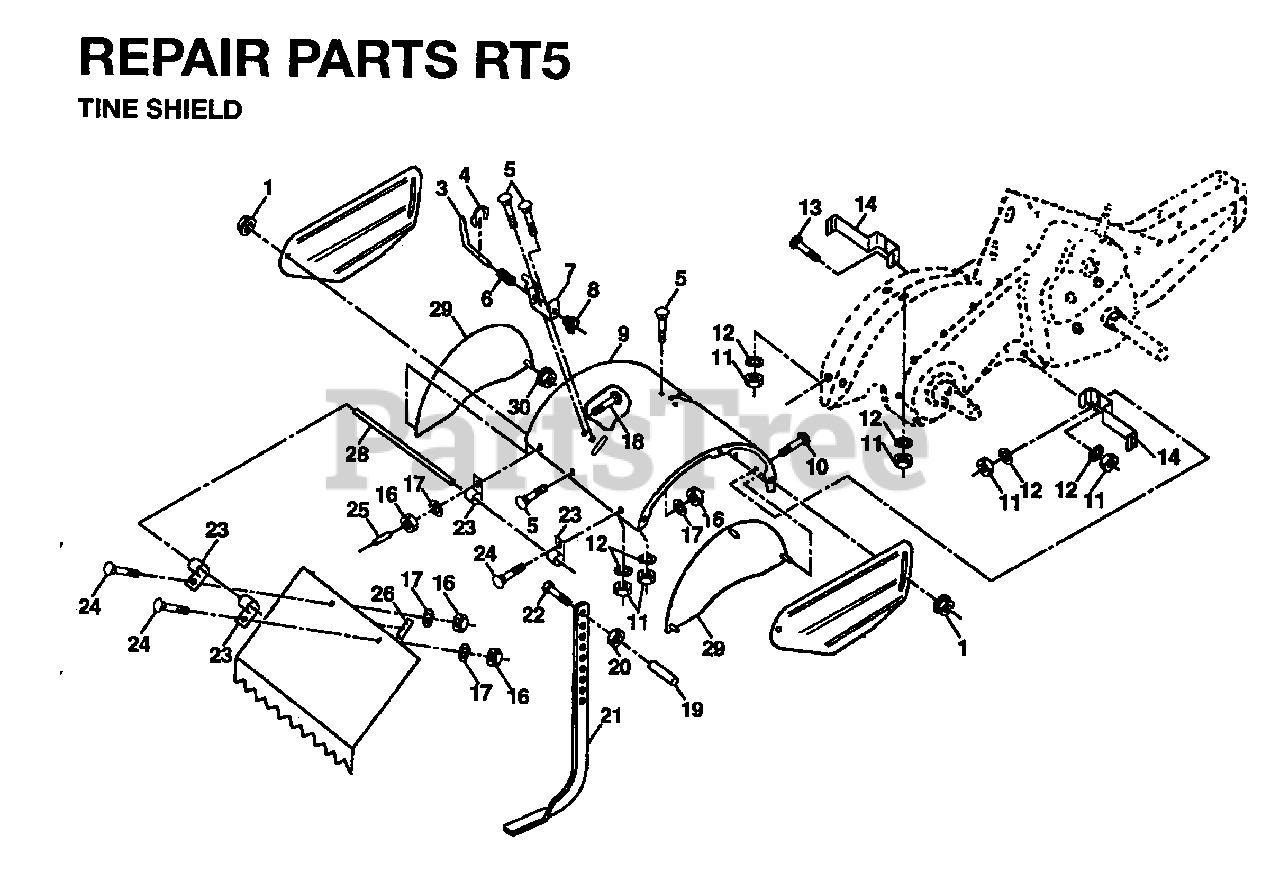

TINE SHIELD Parts Diagram

  • Title

1

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

3

Jonsered 532008393

STAKE PIN TI

$31.99

$

In Stock, only 1 left!

0

4

Jonsered 812000036

KLIP RING TI

$6.49

$

In Stock, only 1 left!

0

5

Jonsered 872140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

6

Jonsered 532008394

SPRING TI

$7.49

$

In Stock, only 1 left!

0

7

Jonsered 532008392

LATCH BRACKET TI

$

$

Not available

8

Jonsered 532109230

SPRING CRT

$6.49

$

In Stock, Qty 13

0

9

Jonsered 532142036

No Description Available
(Superseded to 532442858)

$54.99

$

Usually ships in 3-10 days

0

10

Jonsered 872140508

BOLT
(Superseded to 595901501)

$3.99

$

In Stock, Qty 17

0

11

Jonsered 873220500

NUT

$6.49

$

Usually ships in 3-10 days

0

12

Jonsered 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

13

Jonsered 872110510

BOLT.CARRIAGE.5/16-18

$7.49

$

In Stock, Qty 20+

0

14

Jonsered 532124311

BRACKET.TINE.SHIELD.TILLER
(Superseded to 581813501)

$

$

Not available

16

Jonsered 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

17

Jonsered 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

18

Jonsered 872040410

BOLT

$6.49

$

Usually ships in 3-10 days

0

19

Jonsered 532102701

GRIP CRT

$6.49

$

Usually ships in 3-10 days

0

20

Jonsered 873220600

NUT.HEX.3/8-16UNC

$6.49

$

In Stock, only 4 left!

0

21

Jonsered 532144437

DEPTH STAKE
(Superseded to 532102156)

$21.99

$

Usually ships in 3-10 days

0

22

Jonsered 874930632

BOLT.375-16

$6.49

$

Usually ships in 3-10 days

0

23

Jonsered 532004440

HINGE CRT

$6.49

$

In Stock, only 1 left!

0

24

Jonsered 872140404

BOLT

$6.49

$

Usually ships in 3-10 days

0

25

Jonsered 532124717

VINYL CAP TI
(Superseded to 532006712)

$6.49

$

Usually ships in 3-10 days

0

26

Jonsered 532109227

PAD IDLER TI

$3.99

$

In Stock, Qty 20+

0

28

Jonsered 532120588

PIN.HINGE.TILLER

$6.49

$

Usually ships in 3-10 days

0

29

Jonsered 532142037

No Description Available
(Superseded to 532442868)

$

$

Not available

30

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0
