FT 5 - Jonsered Front-Tine Tiller (1995-01) TRANSMISSION Parts Diagram

Front-Tine Tiller

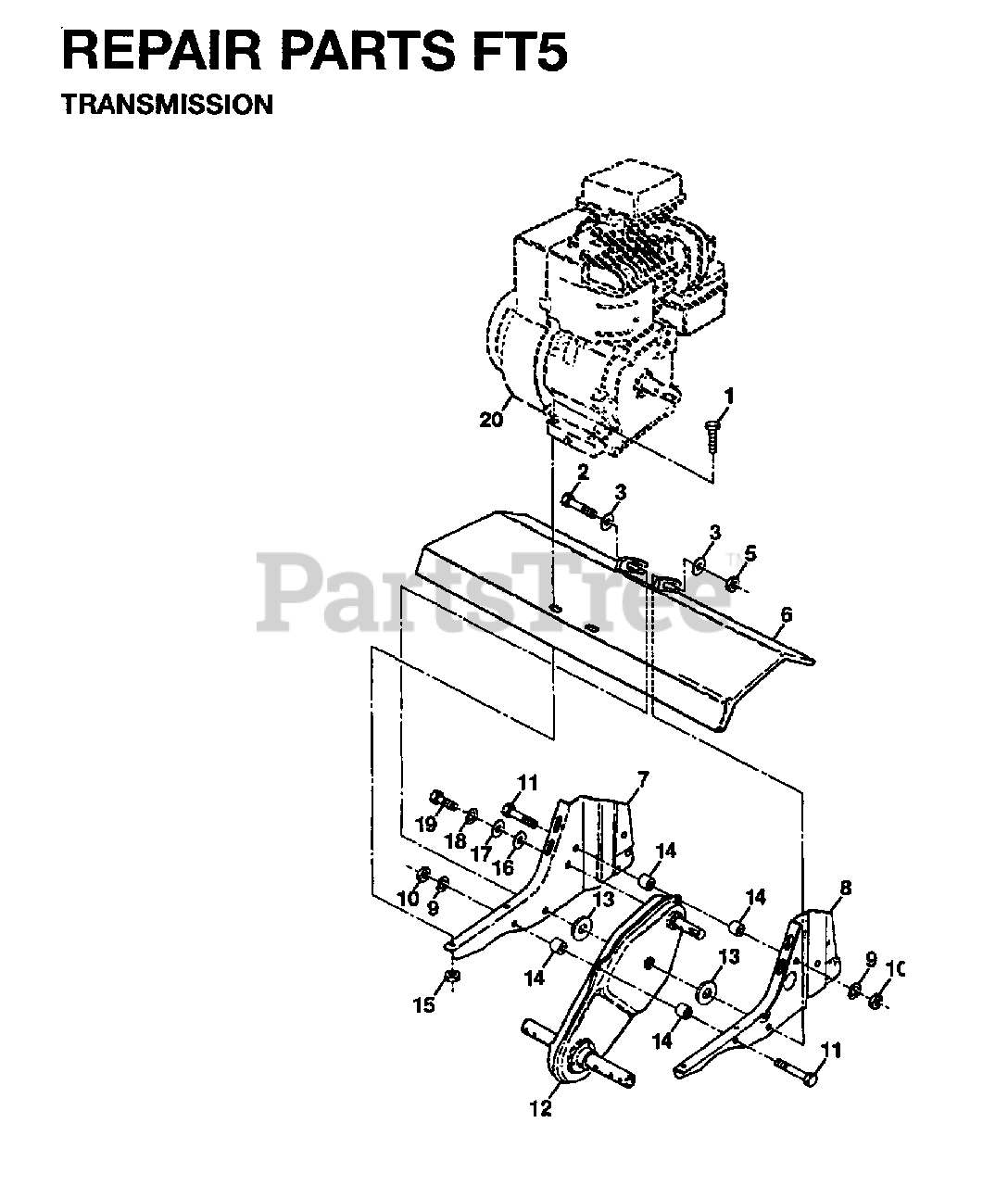

TRANSMISSION Parts Diagram

  • Title

1

Jonsered 874780524

HEX BOLT
(Superseded to 596582201)

$3.99

$

In Stock, Qty 18

0

2

Jonsered 874780652

No Description Available
(Superseded to 583614901)

$2.99

$

Usually ships in 3-10 days

0

3

Jonsered 734117201

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

5

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

6

Jonsered 532138343

No Description Available
(Superseded to 532405110)

$

$

Not available

7

Jonsered 532149207

No Description Available
(Superseded to 532188195)

$

$

Not available

8

Jonsered 532149206

No Description Available
(Superseded to 110519X)

$18.99

$

Usually ships in 3-10 days

0

9

Jonsered 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

10

Jonsered 873220500

NUT

$6.49

$

Usually ships in 3-10 days

0

11

Jonsered 874780544

BOLT HEX**
(Superseded to 596218601)

$3.99

$

Usually ships in 3-10 days

0

12

Jonsered 532126669

TRANSMISSION
(Superseded to 582800901)

$

$

Not available

13

Jonsered 734117801

WASHER - M12
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

14

Jonsered 532009173

SPACER

$

$

Not available

15

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

16

Jonsered 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

17

Jonsered 819092016

WASHER

$4.99

$

In Stock, only 1 left!

0

18

Jonsered 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

19

Jonsered 874610412

No Description Available
(Superseded to 582738901)

$4.99

$

In Stock, only 1 left!

0
