FT-50 (21A-340-100) - Cub Cadet Front-Tine Tiller Engine (1998) Engine, External & Crankshaft Parts Diagram

Front-Tine Tiller Engine

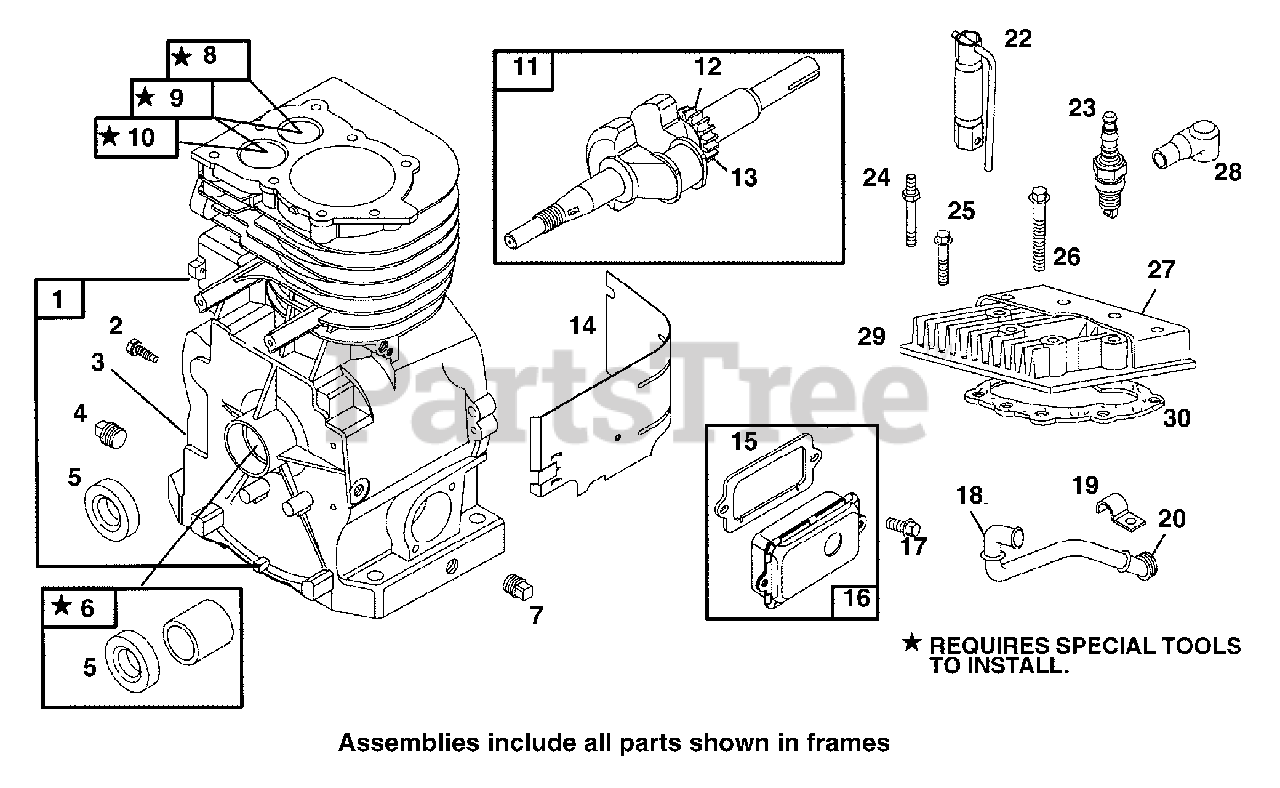

Engine, External & Crankshaft Parts Diagram

  • Title

1

Cub Cadet BS-497144

Cylinder Assembly

$537.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-94680

Hex Screw
(Superseded to BS-691660)

$3.99

$

In Stock, Qty 11

0

3

Cub Cadet BS-231079

Gov. Crank Bushing

$

$

Not available

4

Cub Cadet BS-94916

Oil Drain Plug
(Superseded to BS-691686)

$5.49

$

In Stock, only 1 left!

0

5

Cub Cadet BS-299819

Oil Seal
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 20+

0

6

Cub Cadet BS-399268

Bushing/Seal Kit
(Superseded to BS-399269)

$21.99

$

In Stock, Qty 6

0

7

Cub Cadet BS-94916

Oil Drain Plug
(Superseded to BS-691686)

$5.49

$

In Stock, only 1 left!

0

8

Cub Cadet BS-211172

Valve Seat (Exhaust)

$

$

Not available

9

Cub Cadet BS-262001

Guide Bushing (Exhaust Valve)

$13.99

$

Usually ships in 2-12 days

0

10

Cub Cadet BS-211787

Valve Seat (Intake)

$

$

Not available

11

Cub Cadet BS-397103

Crankshaft

$131.99

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-94388

Timing Key
(Superseded to BS-690979)

$3.49

$

In Stock, only 3 left!

0

13

Cub Cadet BS-262992

Timing Gear

$

$

Not available

14

Cub Cadet BS-224820

Cylinder Shield

$

$

Not available

15

Cub Cadet BS-27549

Breather Gasket

$

$

Not available

16

Cub Cadet BS-495774

Breather Assembly
(Superseded to BS-791779)

$15.99

$

In Stock, only 4 left!

0

17

Cub Cadet BS-94621

Hex Screw
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

18

Cub Cadet BS-67838

Grommet
(Superseded to BS-692189)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet BS-223786

Breath Tube Support
(Superseded to BS-691741)

$4.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-66578

Grommet
(Superseded to BS-692187)

$4.49

$

In Stock, Qty 20+

0

?21

Cub Cadet BS-231550

Breather Tube

$

$

Not available

22

Cub Cadet BS-89838

Spark Plug Wrench
(Superseded to BS-89838S)

$6.49

$

In Stock, Qty 5

0

23

Cub Cadet BS-802592

Spark Plug

$

$

Currently unavailable

24

Cub Cadet BS-94926

Hex Drive Stud
(Superseded to BS-691690)

$

$

Not available

25

Cub Cadet BS-94221

Hex Screw (2-1/16")
(Superseded to BS-691640)

$3.49

$

In Stock, only 2 left!

0

26

Cub Cadet BS-94679

Hex Screw (2-7/8")

$

$

Not available

27

Cub Cadet BS-224738

Cylinder Cover

$

$

Not available

28

Cub Cadet BS-66538

Spark Plug Boot
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 15

0

29

Cub Cadet BS-214040

Cylinder Head

$

$

Not available

30

Cub Cadet BS-272157

Cylinder Head Gasket
(Superseded to BS-272157S)

$6.49

$

In Stock, Qty 13

0
