FT-50 (21A-340-100) - Cub Cadet Front-Tine Tiller Engine (1998) Engine, Internal Parts Diagram

Front-Tine Tiller Engine

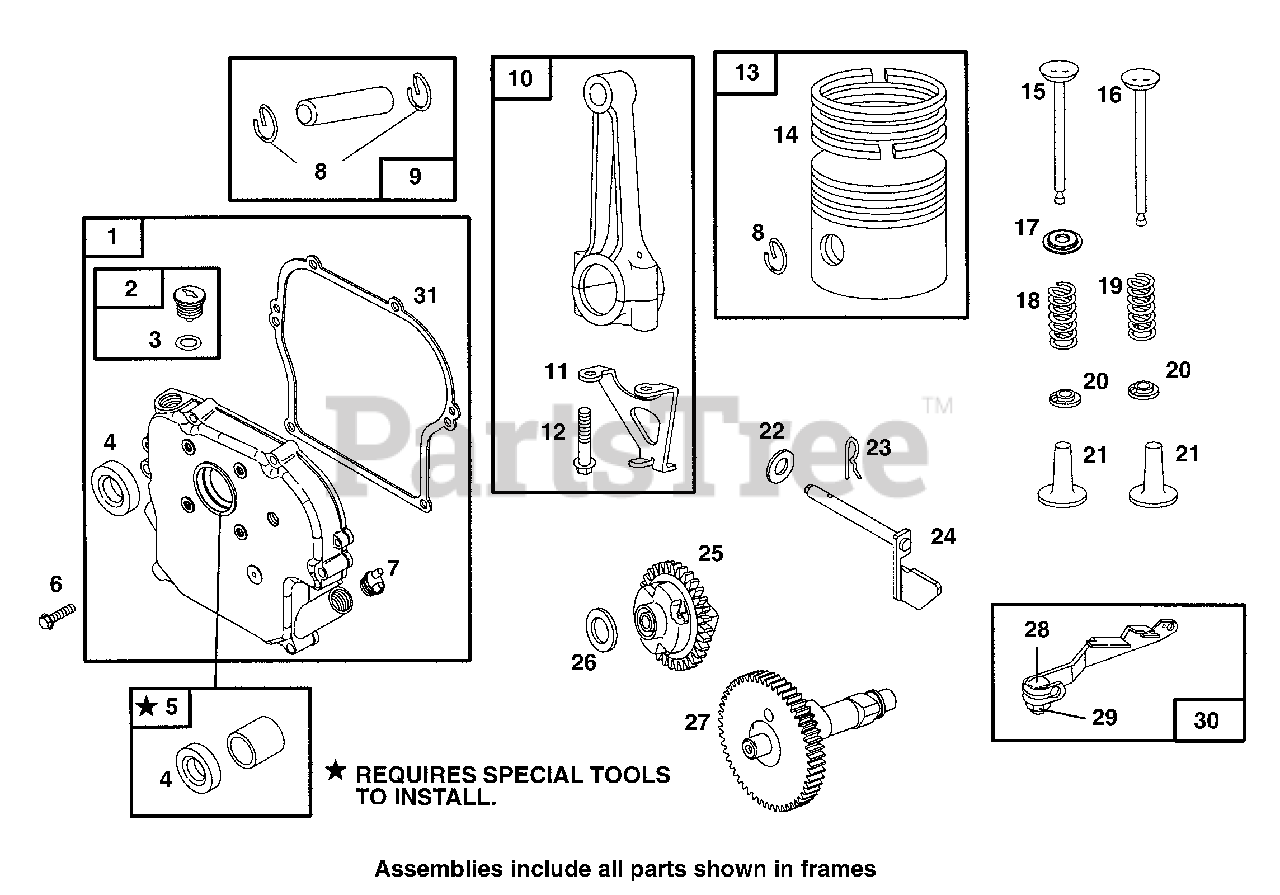

Engine, Internal Parts Diagram

  • Title

1

Cub Cadet BS-494044

Crankcase Cover

$

$

Not available

2

Cub Cadet BS-399195

Oil Fill Cap

$

$

Not available

3

Cub Cadet BS-271485

Seal-O-Ring

$

$

Not available

4

Cub Cadet BS-294606

Oil Seal

$

$

Not available

5

Cub Cadet BS-297603

Bushing/Seal Kit

$

$

Not available

6

Cub Cadet BS-94980

Hex Screw

$

$

Not available

7

Cub Cadet BS-281658

Oil Fill Cap
(Superseded to BS-281658S)

$4.49

$

In Stock, only 2 left!

0

8

Cub Cadet BS-26026

Piston Pin Lock

$

$

Not available

9

Cub Cadet BS-298909

Piston Pin

$8.99

$

In Stock, only 4 left!

0

Cub Cadet BS-298908

Piston Pin (.005" OS)

$4.99

$

Usually ships in 2-12 days

0

10

Cub Cadet BS-299430

Connecting Rod

$40.99

$

In Stock, only 2 left!

0

Cub Cadet BS-390459

Connecting Rod (.020")

$

$

Not available

11

Cub Cadet BS-225183

Connecting Rod Dipper
(Superseded to BS-691759)

$8.49

$

In Stock, only 1 left!

0

12

Cub Cadet BS-94699

Connecting Rod Screw

$

$

Not available

13

Cub Cadet BS-298904

Piston Assembly (Standard)

$82.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298905

Piston Assembly (.010" OS)

$50.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298906

Piston Assembly (.020" OS)

$95.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298907

Piston Assembly (.030" OS)

$

$

Not available

14

Cub Cadet BS-298982

Piston Ring Set (Standard)

$48.99

$

In Stock, Qty 11

0

Cub Cadet BS-298983

Piston Ring Set (.010" OS)

$22.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298984

Piston Ring Set (.020" OS)

$35.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298985

Piston Ring Set (.030" OS)

$23.99

$

Usually ships in 2-12 days

0

15

Cub Cadet BS-211119

Exhaust Valve
(Superseded to BS-211119S)

$

$

Not available

16

Cub Cadet BS-261044

Intake Valve
(Superseded to BS-261044S)

$

$

Not available

17

Cub Cadet BS-225257

Valve Retainer
(Superseded to BS-691760)

$7.49

$

In Stock, only 1 left!

0

18

Cub Cadet BS-26478

Valve Spring

$6.49

$

In Stock, Qty 5

0

19

Cub Cadet BS-260552

Valve Spring

$5.49

$

In Stock, Qty 9

0

20

Cub Cadet BS-93312

Valve Retainer
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 18

0

21

Cub Cadet BS-260642

Valve Tappet

$

$

Not available

22

Cub Cadet BS-94927

Flat Washer
(Superseded to BS-691691)

$3.99

$

In Stock, Qty 5

0

23

Cub Cadet BS-93306

Cotter Pin

$

$

Not available

24

Cub Cadet BS-495243

Governor Crank

$

$

Not available

25

Cub Cadet BS-494845

Governor Gear

$

$

Not available

26

Cub Cadet BS-221551

Thrust Washer
(Superseded to BS-691724)

$5.49

$

In Stock, only 2 left!

0

27

Cub Cadet BS-214726

Cam Gear

$

$

Not available

28

Cub Cadet BS-94907

Carriage Bolt

$

$

Not available

29

Cub Cadet BS-231978

Hex Nut

$

$

Not available

30

Cub Cadet BS-490374

Governor Lever

$

$

Not available

31

Cub Cadet BS-270080

Crankcase Gasket

$

$

Not available

Cub Cadet BS-270125

Crankcase Gasket (.005")

$9.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-270126

Crankcase Gasket (.009")

$8.49

$

In Stock, only 4 left!

0
