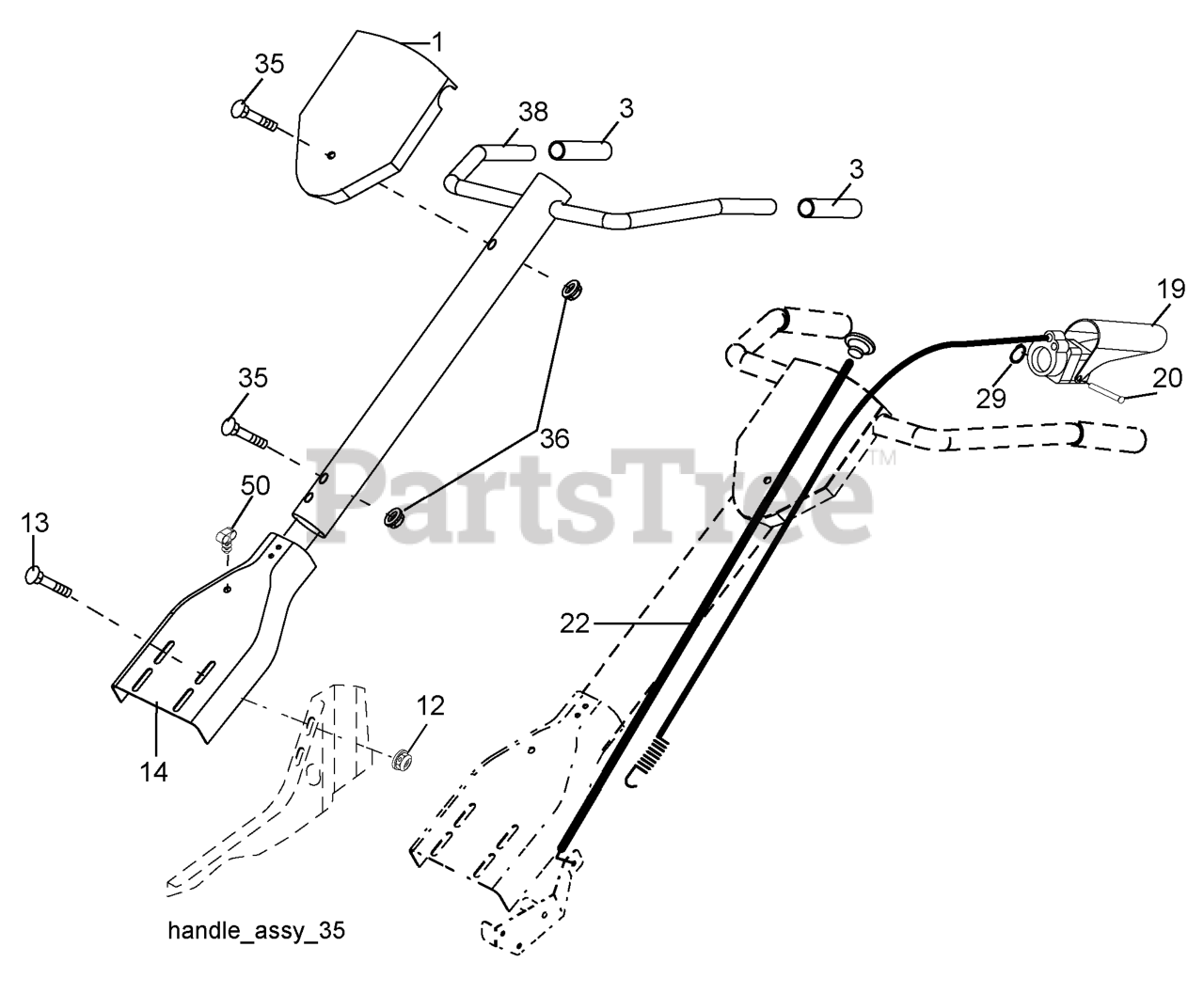

FT 900 (960830005-00) - Husqvarna Front-Tine Tiller (2009-11) Handle Assembly Parts Diagram

Front-Tine Tiller

Handle Assembly Parts Diagram

  • Title

1

Husqvarna 532432709

PANEL.PNT.CONTROL.W/REVERSE

$

$

Not available

3

Husqvarna 532165787

GRIP.HANDLE.BLACK

$6.99

$

In Stock, Qty 11

0

12

Husqvarna 898000129

NUT
(Superseded to 873800500)

$

$

Not available

13

Husqvarna 872010506

BOLT.RH.SQNK.5/16

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532181476

PANEL ASM. POLE
(Superseded to 532446412)

$

$

Not available

19

Husqvarna 532188532

CONTROL.ASM.TINE

$

$

Not available

20

Husqvarna 532188555

PIN, PIVOT

$4.99

$

In Stock, only 1 left!

0

22

Husqvarna 532188171

CABLE ASM REVERSE

$37.99

$

Usually ships in 3-10 days

0

29

Husqvarna 812000059

RETAINING.RING.#5103-25
(Superseded to 582730101)

$

$

Not available

35

Husqvarna 872010520

BOLT.5/16-18X2.5

$5.99

$

Usually ships in 3-10 days

0

36

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$

$

Not available

38

Husqvarna 532417465

RP ASSEMBLY, HANDLE COLUMN
(Superseded to 532431332)

$

$

Not available

50

Husqvarna 532181580

CLIP.ROUTING DUAL

$3.49

$

Usually ships in 3-10 days

0
