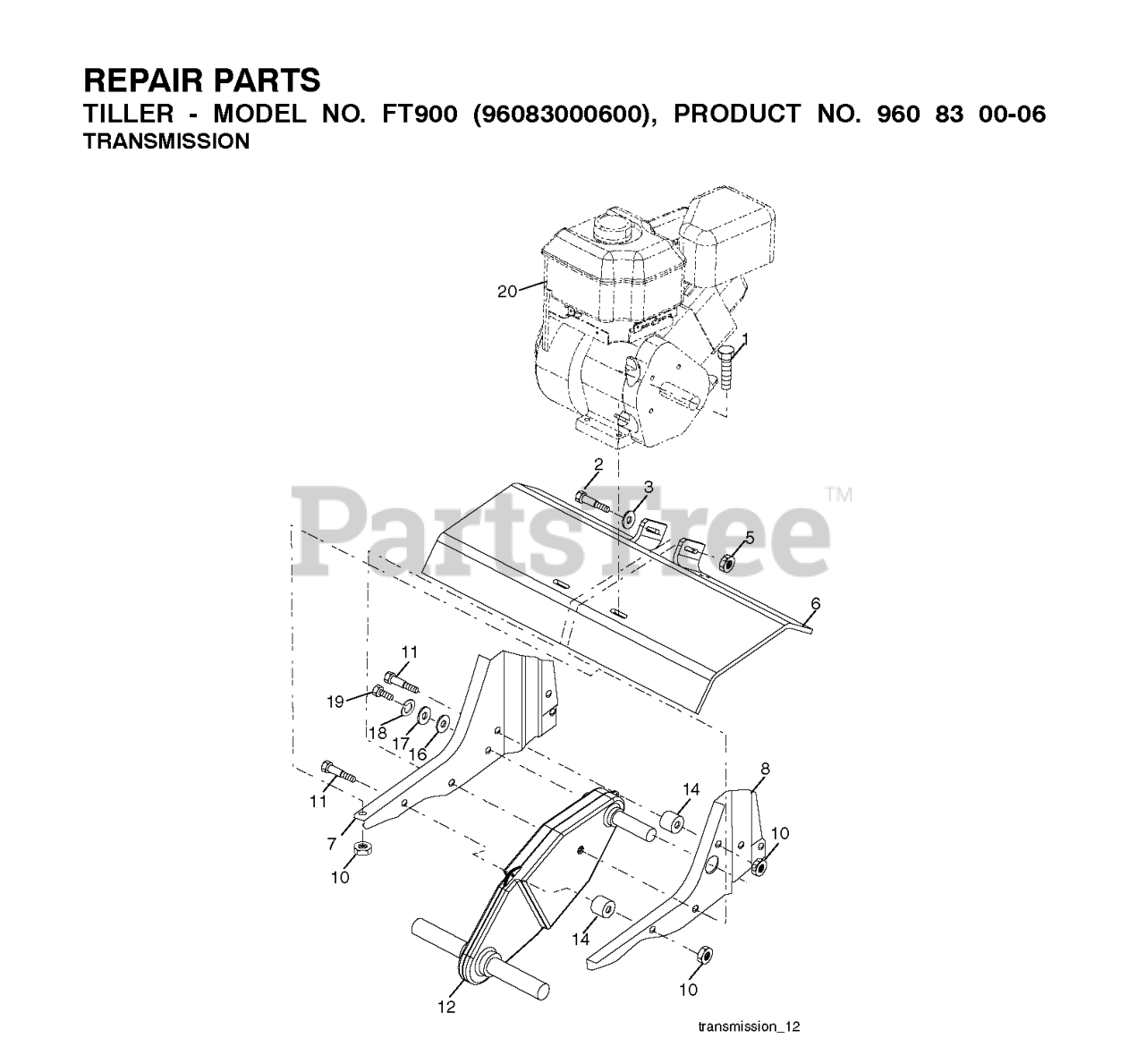

FT 900 (960830006-01) - Husqvarna Front-Tine Tiller (2010-12) TRANSMISSION Parts Diagram

Front-Tine Tiller

TRANSMISSION Parts Diagram

  • Title

1

Husqvarna 874760524

BOLT
(Superseded to 539976935)

$1.99

$

Usually ships in 3-10 days

0

2

Husqvarna 874780652

BOLT

$

$

Not available

3

Husqvarna 819131311

WASHER
(Superseded to 734117201)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

6

Husqvarna 532440704

SHIELD.PNT.TINE.24".ORANGE

$89.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532188195

RP.BRACKET.ENGINE.RH.TILLER.BL
(Superseded to 532446006)

Note: RH

$

$

Not available

8

Husqvarna 532165834

BRACKET.ENGINE.TILLER.LH.BLACK
(Superseded to 584325101)

Note: LH

$

$

Not available

10

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$

$

Not available

11

Husqvarna 532187912

BOLT, HEX HEAD 5/16-18 X 2.5

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532151222

TRANSMISSION.ASM.W/1".D-SHAFT

$

$

Not available

14

Husqvarna 532009173

SPACER

$

$

Not available

16

Husqvarna 819091412

REPL BY 819 09 14-16
(Superseded to 596135301)

$3.99

$

In Stock, Qty 6

0

17

Husqvarna 819092016

WASHER

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 874610412

BOLT

$

$

Not available

20

Husqvarna TBD

Note: ENGINE BRIGGS STRATTON MODEL 12T402-1385-F8

$

$

Not available
