FT 900 (960830007-00) - Husqvarna Front-Tine Tiller (2010-11) BELT GUARD & PULLEY Parts Diagram

Front-Tine Tiller

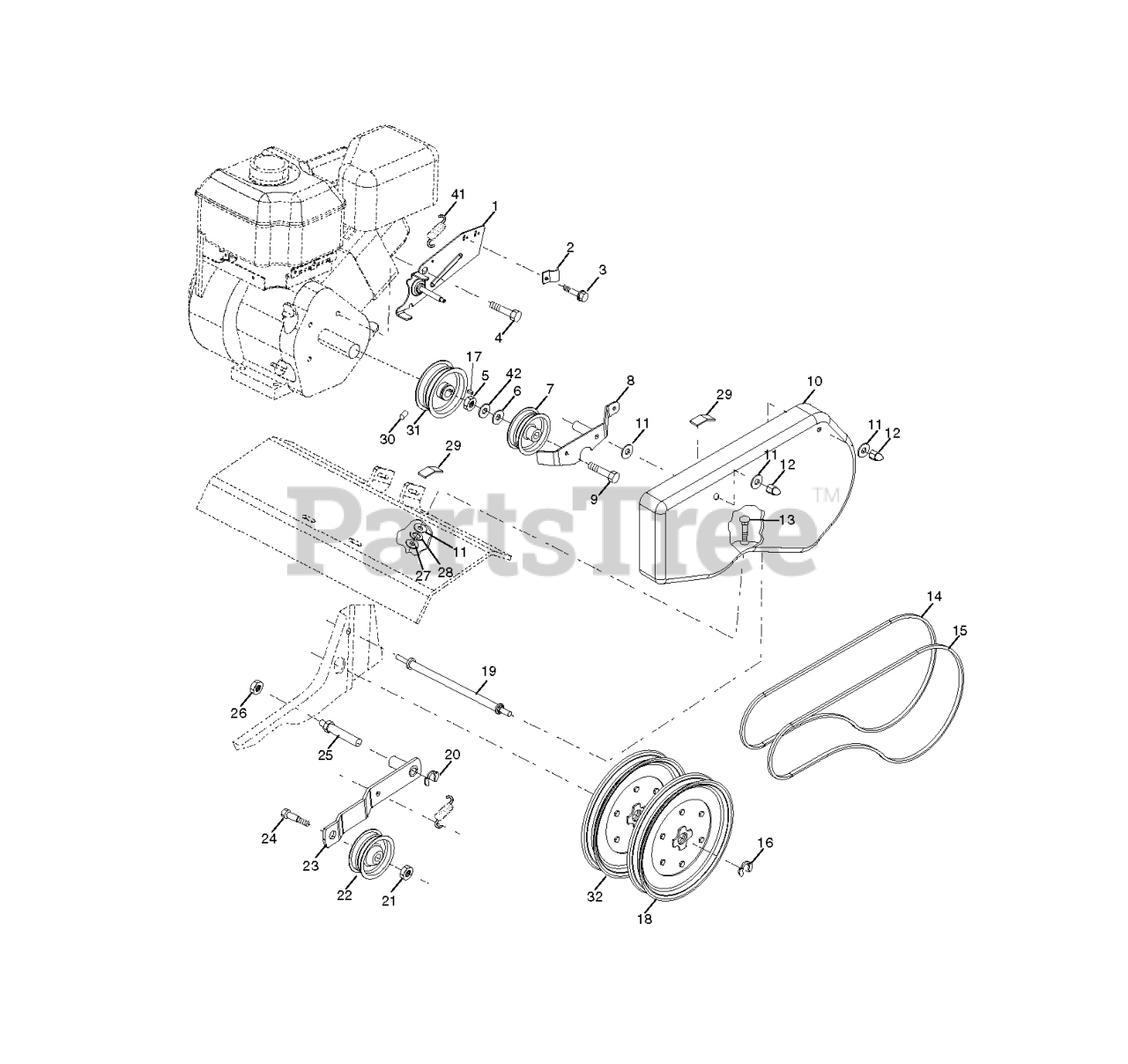

BELT GUARD & PULLEY Parts Diagram

  • Title

16

Husqvarna 812000028

RETAINING RING LT

$2.49

$

In Stock, Qty 7

0

30

Husqvarna 823200404

SCREW

$6.99

$

In Stock, only 1 left!

0

11

Husqvarna 819091016

WASHER
(Superseded to 596582301)

$3.49

$

In Stock, only 2 left!

0

23

Husqvarna 532175377

ARM.ASM.IDLER.BLACK

$39.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532104213

CAP
(Superseded to 583644101)

$5.99

$

In Stock, only 2 left!

0

13

Husqvarna 872140406

BOLT
(Superseded to 872110407)

$

$

Not available

18

Husqvarna 532151236

SHEAVE,TRANS."D"

$

$

Not available

24

Husqvarna 874760620

BOLT

$5.99

$

Usually ships in 3-10 days

0

6

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

29

Husqvarna 532109227

PAD IDLER TI

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 812000036

KLIP RING TI

$3.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532101189

ENGINE.PULLEY.TILLER

$51.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532180307

SPRING.EXTENSION

$

$

Not available

21

Husqvarna 873350600

NUT
(Superseded to 873220600)

$5.99

$

In Stock, only 2 left!

0

32

Husqvarna 532151223

SHEAVE.TRANS

$51.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532439162

BRACKET,BELTGUARD ASM
(Superseded to 532446043)

$

$

Not available

19

Husqvarna 532188502

BOLT.BELT.GUARD

$10.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532440709

GUARD.BELT.TILLER.ORANGE

$56.99

$

Usually ships in 3-10 days

0

28

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.49

$

In Stock, only 1 left!

0

9

Husqvarna 874760628

BOLT
(Superseded to 582740701)

$5.99

$

In Stock, only 2 left!

0

14

Husqvarna 532133035

BELT

$39.99

$

In Stock, Qty 20+

0

42

Husqvarna 532138909

SPACER

$

$

Not available

4

Husqvarna 874770508

BOLT

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 873350500

JAM NUT TI
(Superseded to 873220500)

$

$

Not available

8

Husqvarna 532159238

ARM
(Superseded to 532446051)

$39.99

$

Usually ships in 3-10 days

0

27

Husqvarna 873220400

NUT
(Superseded to 532050675)

$3.49

$

In Stock, only 1 left!

0

5

Husqvarna 873680600

LOCKNUT

$

$

Not available

25

Husqvarna 532106968

SHAFT.IDLER.TILLER

$9.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532002649

KEY T

$7.99

$

In Stock, only 1 left!

0

2

Husqvarna 532009484

CONDUIT.CLIP.PLATED

$5.99

$

In Stock, only 3 left!

0

15

Husqvarna 532002614

BELT.TILLER.DRIVE
(Superseded to 599385301)

$17.99

$

In Stock, Qty 20+

0

22

Husqvarna 532161806

PULLEY, IDLER

$11.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532086777

TAPPING SCREW
(Superseded to 817021008)

$3.99

$

In Stock, only 4 left!

0

7

Husqvarna 532002009

RP PULLEY.IDLER.2.44.TILLER
(Superseded to 583728401)

$

$

Not available
