FT7251 (7800944-00) - Snapper Front-Tine Tiller, 7.25hp Handlebar & Controls Group Parts Diagram

Front-Tine Tiller, 7.25hp

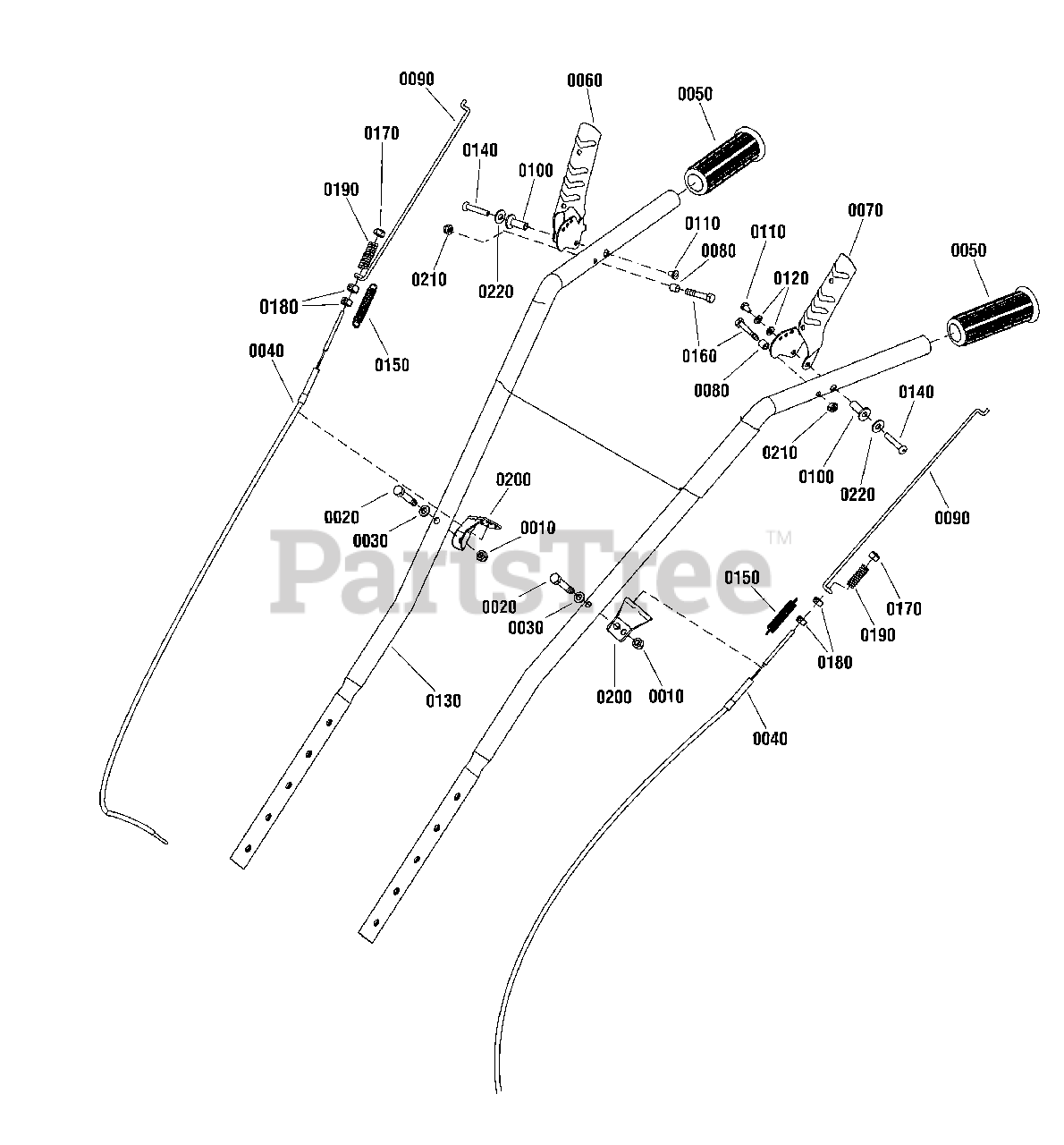

Handlebar & Controls Group Parts Diagram

  • Title

0010

Snapper 5025056

NUT, Nylock 5/16-18
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

0020

Snapper 1919326

BOLT, Hex Head, 5/16-18 X 1 1/2
(Superseded to 703332)

$4.49

$

In Stock, Qty 11

0

0030

Snapper 1916165

LOCKWASHER, Spring 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0040

Snapper 1719037

CABLE, Front Tine
(Superseded to 1719037SM)

$67.99

$

In Stock, Qty 8

0

0050

Snapper 706218

GRIP, Handle

$31.99

$

Usually ships in 2-12 days

0

0060

Snapper 706186

LEVER, Clutch RH Forward

$49.99

$

Usually ships in 2-12 days

0

0070

Snapper 706185

LEVER, Clutch LH Forward

$47.99

$

Usually ships in 2-12 days

0

0080

Snapper 706188

BUSHING, 10.0 X 6.8 X 9.5 MM GR5

$5.99

$

Usually ships in 2-12 days

0

0090

Snapper 706342

LINK, 13 1/4

$11.99

$

Usually ships in 2-12 days

0

0100

Snapper 706322

BUSHING, Flange 9.6 X 6.8 X 27.6 MM

$10.99

$

Usually ships in 2-12 days

0

0110

Snapper 706190

BOLT, Connector M4-6G X 0.7 X 10 GR5

$5.99

$

Usually ships in 2-12 days

0

0120

Snapper 706217

WASHER, 12 OD X 9.3 ID X 1.5 MM GR5

$3.99

$

Usually ships in 2-12 days

0

0130

Snapper 706343

HANDLEBAR, Upper

$205.99

$

Usually ships in 2-12 days

0

0140

Snapper 706191

NUT, Connector M4-6H X 0.7 X 12 GR5

$5.99

$

Usually ships in 2-12 days

0

0150

Snapper 706344

SPRING, Extension, 45 X 11.20 X 1.60 MM

$7.99

$

Usually ships in 2-12 days

0

0160

Snapper 5025010X12

BOLT, Hex Head, 1/4-20 X 1 1/2, GR5
(Superseded to 5025010X12SM)

$2.99

$

Usually ships in 2-12 days

0

0170

Snapper 1933896

NUT, Hex Nylock, 10-24, GR8
(Superseded to 703412)

$4.49

$

In Stock, Qty 10

0

0180

Snapper 2820438

NUT, Hex Jam, 5/16-24
(Superseded to 2820438SM)

$3.49

$

In Stock, only 2 left!

0

0190

Snapper 1738712

SPRING, Compression
(Superseded to 1738712YP)

$11.99

$

Usually ships in 2-12 days

0

0200

Snapper 1738649

BRACKET, Cable
(Superseded to 1738649YP)

$28.99

$

Usually ships in 2-12 days

0

0210

Snapper 722393

NUT, Hex Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0220

Snapper 706195

WASHER, Plastic 8.1MM X 19.0MM X 1.6MM

$3.49

$

Usually ships in 2-12 days

0
