FW 15 (5901736) - Ferris FW15 Series 32" Walk-Behind Mower, 10hp Honda Frame, Spindles, and Blades Group Parts Diagram

FW15 Series 32" Walk-Behind Mower, 10hp Honda

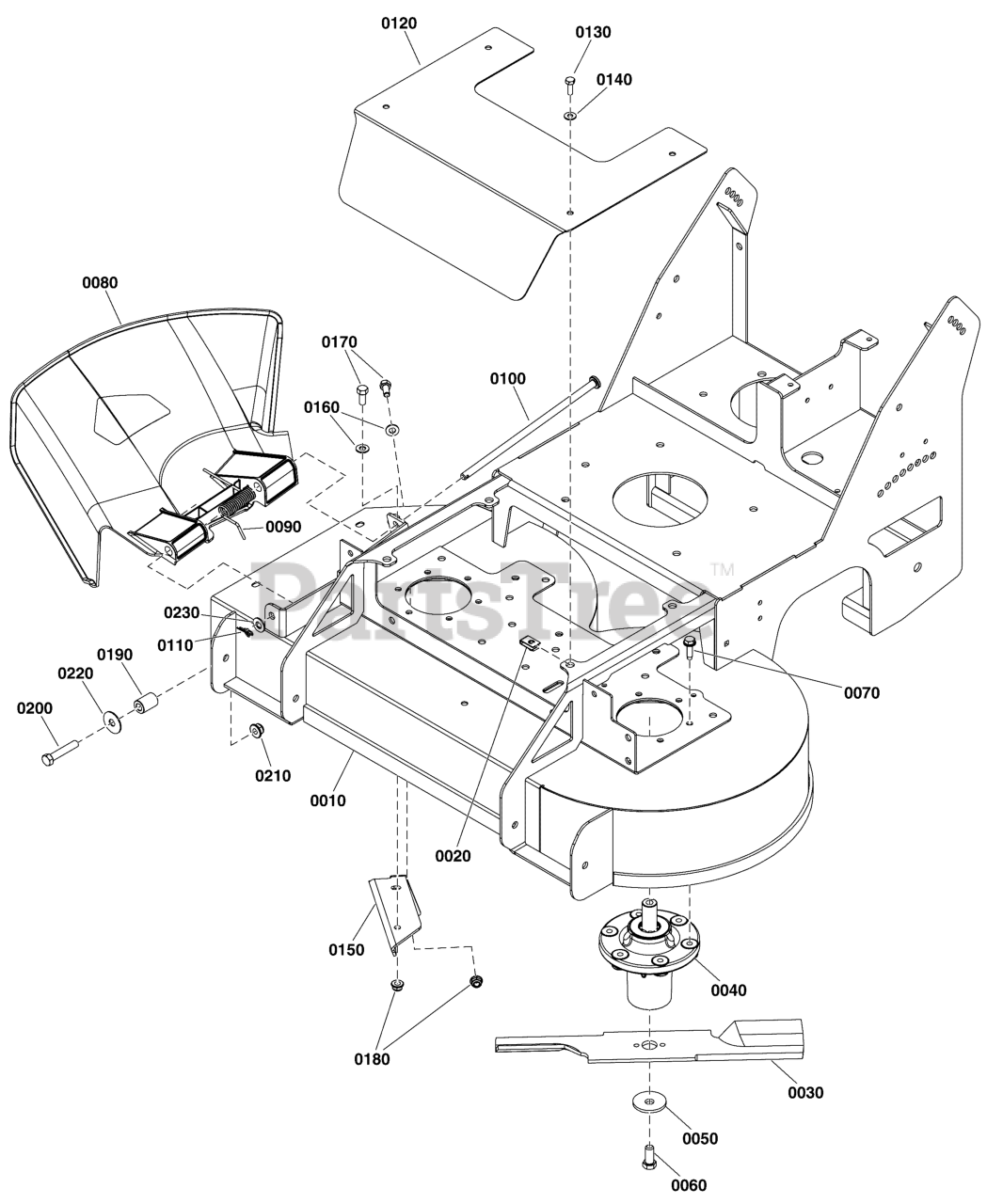

Frame, Spindles, and Blades Group Parts Diagram

  • Title

0010

FRAME AND DECK WELDMENT, RIGID

Note: (Refer to Note: *)

$

$

Not available

0020

Ferris 5022665

BODY CLIP, 1/4-20 X 1/2" DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

0030

Ferris 5106420X2

BLADE SET, 32 DECK (2)

Note: (SET OF 2 BLADES)

$50.99

$

In Stock, only 2 left!

0

0040

Ferris 5417770

ASSY, ALUM. SPINDLE,1761445 HOUSING,FW15
(Superseded to 5417770FS)

$207.99

$

Usually ships in 2-12 days

0

0050

Ferris 1656916

WASHER, .475 ID x 1.75 OD x .156 Thick Spring, Black
(Superseded to 1656916SM)

$7.99

$

In Stock, Qty 20+

0

0060

Ferris 80004484

HHCS, 7/16-14 X 1.250
(Superseded to 703579)

$4.99

$

In Stock, Qty 20+

0

0070

Ferris 80006216

SCREW,5/16-18X1.000,HEX WSHR HD,TT,ZC/CL
(Superseded to 704146)

$3.99

$

In Stock, Qty 14

0

0080

Ferris 5106405

CHUTE, DISCHARGE, FW15
(Superseded to 5106405FS)

$62.99

$

Usually ships in 2-12 days

0

0090

Ferris 5023385

SPRING, TORSION
(Superseded to 5023385SM)

$8.99

$

In Stock, only 2 left!

0

0100

Ferris 5106448

ROD, 3/8 X 9.88, HEADED, CZ
(Superseded to 5106448FS)

$11.99

$

Usually ships in 2-12 days

0

0110

Ferris 80004458

COTTER PIN, 3/8 SELF LOCKING, CLEAR/ZINC
(Superseded to 703355)

$3.99

$

In Stock, Qty 11

0

0120

Ferris 5417773B

GUARD, FRONT, FW15 - RED
(Superseded to 5417773BFS)

$47.99

$

In Stock, only 1 left!

0

0130

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0140

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0150

Ferris 5417819AA

PLATE, DEFECTOR, FW15 - BLK
(Superseded to 5417819AAFS)

$19.99

$

Usually ships in 2-12 days

0

0160

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0170

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

0180

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0190

Ferris 5042658

SPACER, .38 X .75 X 1.06, YZ
(Superseded to 5042658SM)

$7.99

$

In Stock, Qty 8

0

0200

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, Qty 20+

0

0210

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0220

Ferris 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$4.49

$

In Stock, Qty 12

0

0230

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0
