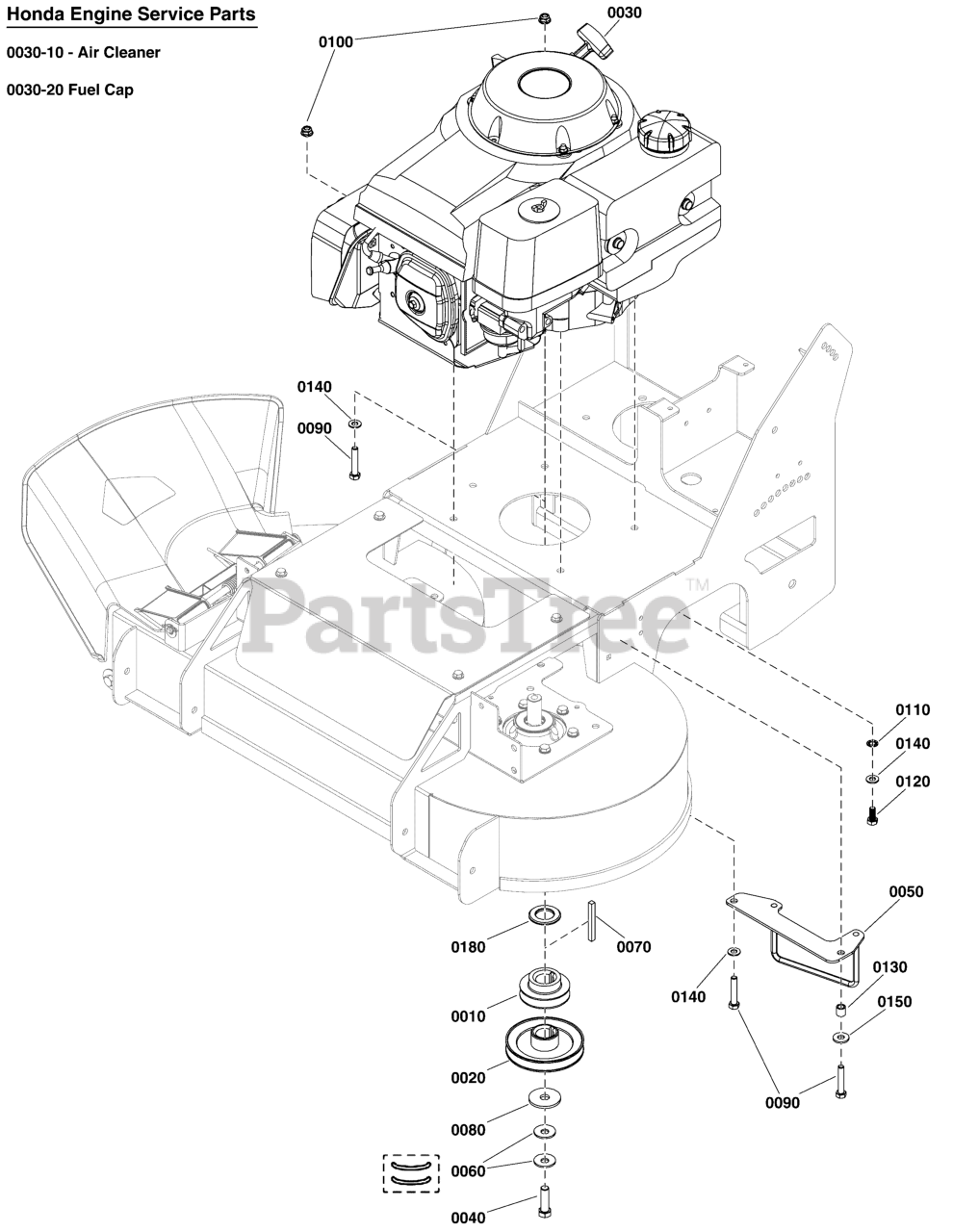

FW 15 (5901737) - Ferris FW15 Series 32" Walk-Behind Mower, 10hp Honda Engine Group Parts Diagram

FW15 Series 32" Walk-Behind Mower, 10hp Honda

Engine Group Parts Diagram

  • Title

0010

Ferris 5021830

PULLEY, Transmission Drive
(Superseded to 5021830FS)

$60.99

$

Usually ships in 2-12 days

0

0020

Ferris 5023252

PULLEY, Crankshaft, 1.0005 ID X 4.275 OD
(Superseded to 5023252SM)

$103.99

$

Usually ships in 2-12 days

0

0030

ENGINE, HONDA GXV390, 10.2 HP

Note: (Refer to Note: *)

$

$

Not available

0030-10

Ferris 5106388X1

AIR CLEANER, HONDA

$45.99

$

Usually ships in 2-12 days

0

0030-20

Ferris 5106388X2

FUEL CAP, HONDA

$23.99

$

Usually ships in 2-12 days

0

0040

Ferris 5102860

BOLT, CRANKSHAFT, 7/16-20 X 1-1/2, GD8
(Superseded to 5102860FS)

$4.99

$

Usually ships in 2-12 days

0

0050

Ferris 5417806AA

WELD, ENGINE BELT KEEP - BLK
(Superseded to 5417806AAFS)

$29.99

$

Usually ships in 2-12 days

0

0060

Ferris 5025585

BELLEVILLE WASHER, 1.1875 X .442 X .098
(Superseded to 5025585YP)

$4.49

$

In Stock, Qty 8

0

0070

Ferris 5050407X20

KEY, 1/4 SQ X 2-1/2
(Superseded to 5050407X20SM)

$6.49

$

In Stock, only 1 left!

0

0080

Ferris 5103282

WASHER, .52 X 1.75 X .14, CZ
(Superseded to 5103282YP)

$3.99

$

Usually ships in 2-12 days

0

0090

Ferris 5025025X14

BOLT, 5/16-24 X 1-3/4, GD8, PHOS
(Superseded to 5025025X14YP)

$4.49

$

Usually ships in 2-12 days

0

0100

Ferris 5025616

NUT, 5/16-24, TOP LOCK FLANGE, GD8 PHOS
(Superseded to 5025616YP)

$3.99

$

In Stock, only 2 left!

0

0110

Ferris 5025188

WASHER, 5/16" Internal Tooth Lock
(Superseded to 5025188SM)

$4.49

$

Usually ships in 2-12 days

0

0120

Ferris 5025012X6

BOLT, 5/16-24 x 3/4
(Superseded to 5025012X6SM)

$3.49

$

Usually ships in 2-12 days

0

0130

Ferris 5102148

SPACER, .33 X .50 X .50, YZ
(Superseded to 5102148YP)

$4.99

$

Usually ships in 2-12 days

0

0140

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0150

Ferris 5025337

WASHER, 5/16" USS
(Superseded to 5025337FS)

$4.49

$

Usually ships in 2-12 days

0

0180

Ferris 5107928

SPACER, 1.0 X .125 X 1.75, CZ
(Superseded to 5107928FS)

$15.99

$

Usually ships in 2-12 days

0
