FW 15 (5901848) - Ferris FW15 Series 32" Walk-Behind Mower, 10hp Honda Spindle Service Parts - 5417770 Parts Diagram

FW15 Series 32" Walk-Behind Mower, 10hp Honda

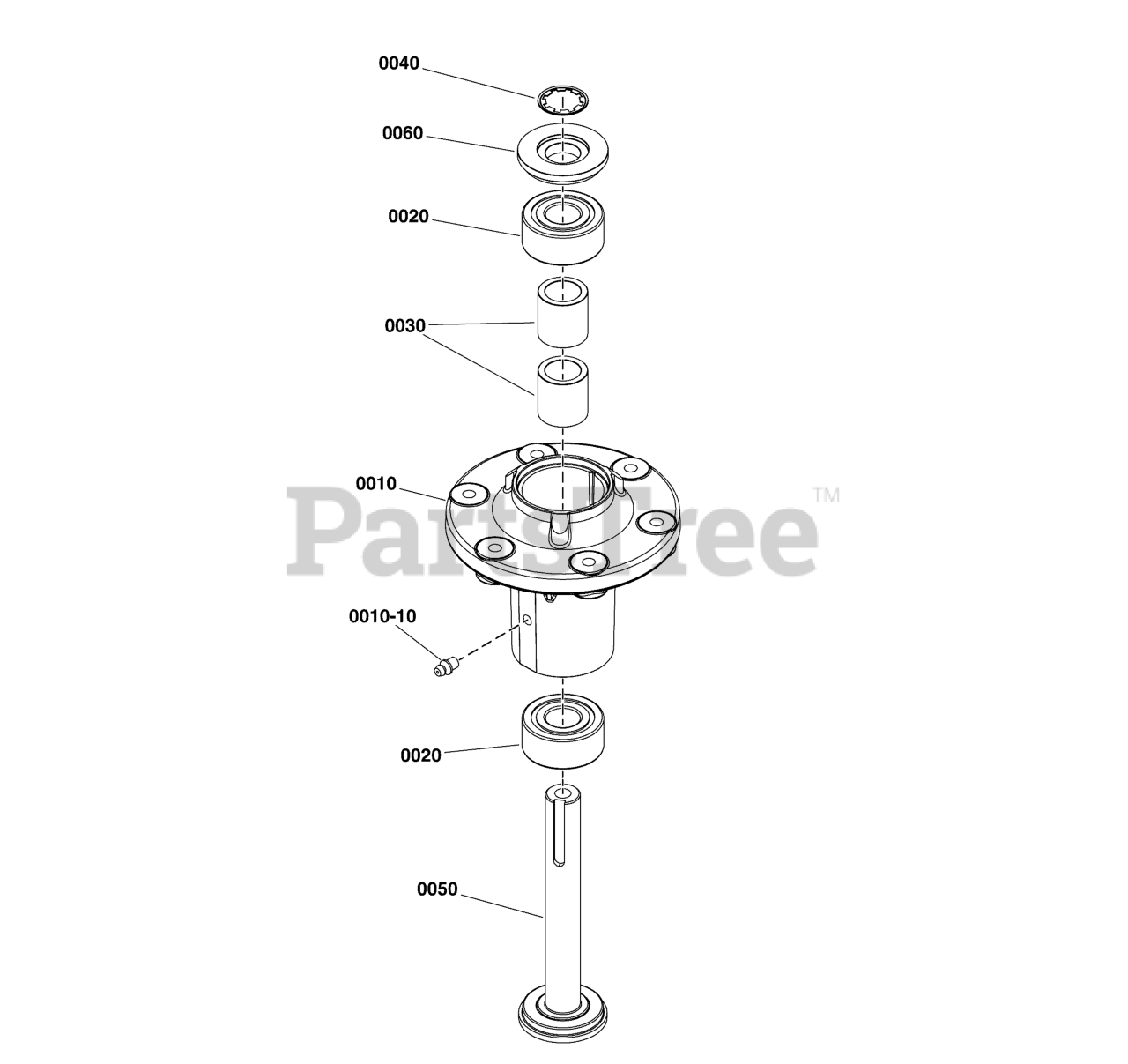

Spindle Service Parts - 5417770 Parts Diagram

  • Title

0010

Ferris 1761445

HOUSING, SPINDLE - CAST ALUM W/ ZERK
(Superseded to 1761445FS)

$55.99

$

In Stock, only 1 left!

0

0010-10

Ferris 1704314

LUBE FITTING, 1/4 Drive , Check Ball
(Superseded to 1704314SM)

$5.49

$

In Stock, Qty 20+

0

0020

Ferris 5105576

BEARING 5204-2RS, DOUBLE ROW
(Superseded to 5105576FS)

$20.99

$

In Stock, only 1 left!

0

0030

Ferris 5105533

SPACER, .81 X 1.13 X 1.18, PM
(Superseded to 5105533FS)

$6.49

$

In Stock, only 4 left!

0

0040

Ferris 1960766

RING, Self-Locking, 46" Mower
(Superseded to 1960766YP)

$4.49

$

In Stock, Qty 20+

0

0050

Ferris 5106416

SHAFT, MOWER SPINDLE, KEYED
(Superseded to 5106416FS)

$43.99

$

In Stock, only 2 left!

0

0060

Ferris 1735323

SHIELD-ARBOR, 2.050OD 46" MWR
(Superseded to 1735323YP)

$7.49

$

In Stock, Qty 20+

0
