FW 35 (5901330) - Ferris FW35 Series 52" Walk-Behind Mower, 21hp Kawasaki, Rear-Discharge Motion Control Group - Forward Speed Control Lever and Spring Assemblies (CE Models) Parts Diagram

FW35 Series 52" Walk-Behind Mower, 21hp Kawasaki, Rear-Discharge

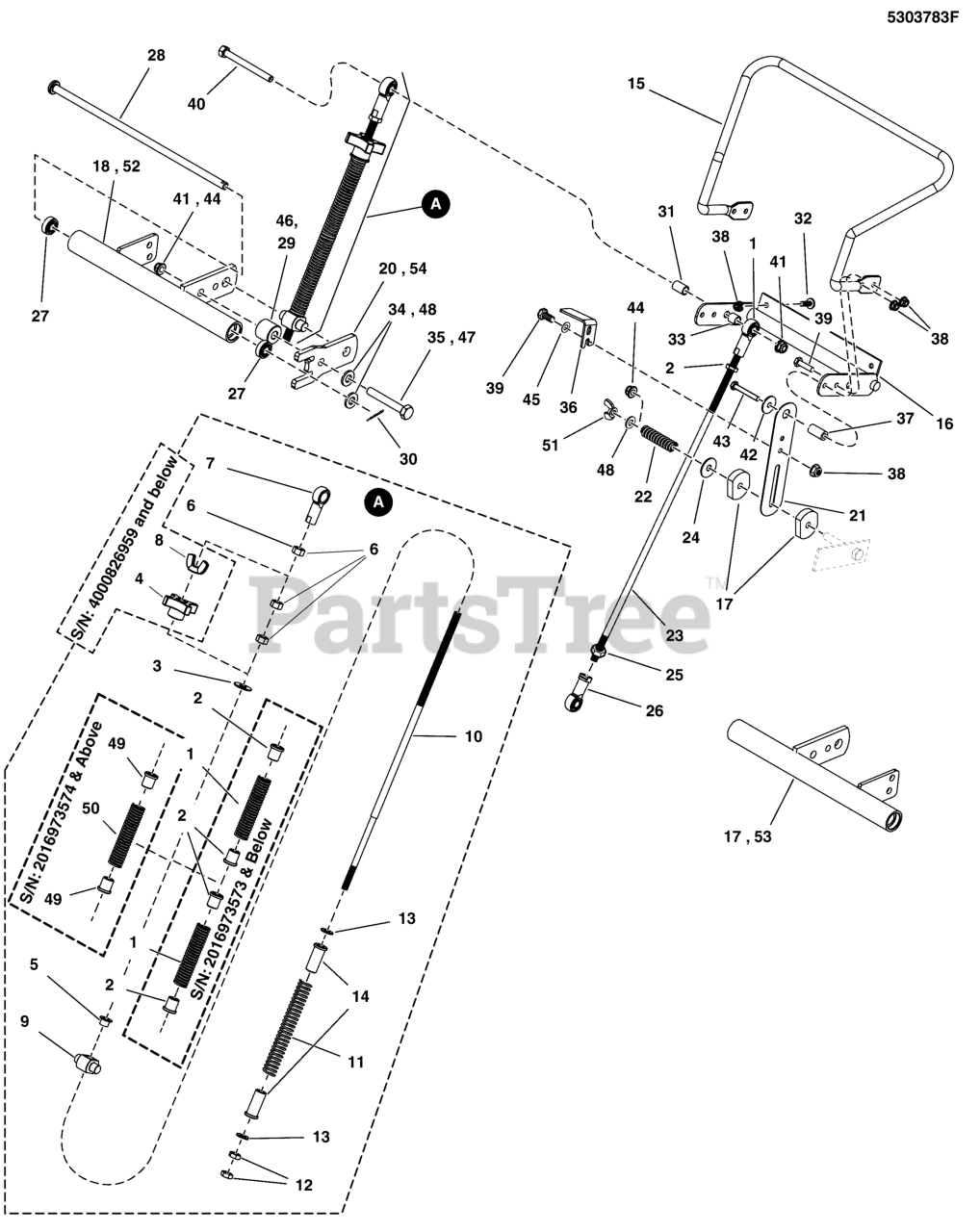

Motion Control Group - Forward Speed Control Lever and Spring Assemblies (CE Models) Parts Diagram

  • Title

1

Ferris 5023320

SPRING-COMP, .615ID X 4.00LG X .080WR
(Superseded to 5023320SM)

Note: (S/N: 2016973573 & Below)

$8.99

$

In Stock, only 1 left!

0

2

Ferris 5102709

BUSHING, .38 X .75 X .75, PLASTIC
(Superseded to 5102709FS)

Note: (S/N: 2016973573 & Below)

$9.49

$

Usually ships in 2-12 days

0

3

Ferris 5025401

WASHER, 3/8 USS
(Superseded to 5025401YP)

$4.49

$

In Stock, Qty 8

0

4

Ferris 5104174

KNOB, 4 ARM, 3/8-24
(Superseded to 5104174FS)

Note: (S/N: 4000826959 and below)

$15.99

$

Usually ships in 2-12 days

0

5

Ferris 5102773

BUSHING, .38ID X .47 OD X .38L, FL
(Superseded to 5102773FS)

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 5025035

NUT, 3/8-24 HEX
(Superseded to 5025035SM)

Note: (Qty: 3 - S/N: 4000826959 and below)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5021683

BALL JOINT, 3/8-24 FEMALE
(Superseded to 5021683FS)

$34.99

$

Usually ships in 2-12 days

0

8

Ferris 5025608

WING NUT, 3/8-24, CZ
(Superseded to 5025608FS)

Note: (S/N: 4000826959 and below)

$3.99

$

Usually ships in 2-12 days

0

9

Ferris 5103022

TRUNION, 1/2" POSTS, STAINLESS
(Superseded to 5103022FS)

$35.99

$

Usually ships in 2-12 days

0

10

Ferris 5104165

ROD, 3/8-24 X 16.50,STEP DOWN TO 5/16
(Superseded to 5104165FS)

$78.99

$

Usually ships in 2-12 days

0

11

Ferris 5104279

SPRING, COMP, .60 ID X 5.50 LG, .080W
(Superseded to 5104279FS)

$10.99

$

Usually ships in 2-12 days

0

12

Ferris 5025032

NUT, 5/16-18 HEX
(Superseded to 5025032SM)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

14

Ferris 5104161

BUSHING, .31IDX.60OD X 1.50L, FL (.75OD)
(Superseded to 5104161FS)

$13.99

$

Usually ships in 2-12 days

0

15

Ferris 5104216A

BAR, SPEED CONTROL - BLK
(Superseded to 5104216AAFS)

$46.99

$

Usually ships in 2-12 days

0

16

Ferris 5412891A

NLA - WELD, SPEED CONTROL, SW35 - BLK
(Superseded to 5412891AAFS)

$64.99

$

Usually ships in 2-12 days

0

17

Ferris 5104176

PAD, T-712 FRICTION MATERIAL
(Superseded to 5104176FS)

$11.99

$

Usually ships in 2-12 days

0

18

Ferris 5412382A

WELD, CENTER PIVOT HUB, RH - WALK - BLK

Note: (S/N: 2017170234 & Below)

$124.99

$

Usually ships in 2-12 days

0

19

Ferris 5411616A

WELD, CENTER PIVOT HUB, LH - WALK - BLK

Note: (S/N: 2017170234 & Below)

$127.99

$

Usually ships in 2-12 days

0

20

Ferris 5411633A

TAB, CONTROL PIVOT - BLK

$8.99

$

Usually ships in 2-12 days

0

21

Ferris 5409272

PLATE, FRICTION CONTROL, SS
(Superseded to 5409272FS)

$30.99

$

Usually ships in 2-12 days

0

22

Ferris 5104221

SPRING, COMP, .40 X .60 X 2.25, BLACK
(Superseded to 5104221FS)

$12.99

$

Usually ships in 2-12 days

0

23

Ferris 5104164

ROD, 3/8-24, 19.00, LH-RH CZ
(Superseded to 5104164FS)

$12.99

$

Usually ships in 2-12 days

0

24

Ferris 5025164

WASHER, 5/16 FENDER
(Superseded to 5025164SM)

$4.49

$

In Stock, only 2 left!

0

25

Ferris 5025317

NUT, 3/8-24 HEX, LH
(Superseded to 5025317FS)

$4.49

$

Usually ships in 2-12 days

0

26

Ferris 5022392

BALL JOINT, 3/8-24 FEMALE, LH
(Superseded to 5022392FS)

$25.99

$

Usually ships in 2-12 days

0

27

Ferris 5102003

BEARING, .375" ID X .875" OD X .341" THK
(Superseded to 5102003YP)

$9.49

$

Usually ships in 2-12 days

0

28

Ferris 5104171

ROD, 3/8 X 12, HEADED - CZ
(Superseded to 5104171FS)

$11.99

$

Usually ships in 2-12 days

0

29

Ferris 5047125

SPACER, .39 X 1.00 X .88, CZ
(Superseded to 5047125SM)

Note: (S/N: 2016861767 & Below)

$8.49

$

In Stock, Qty 6

0

30

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

In Stock, only 1 left!

0

31

Ferris 5047199

SPACER, .38 X .50 X .75
(Superseded to 5047199FS)

$7.99

$

Usually ships in 2-12 days

0

32

Ferris 1960715

SCREW-TRUSS HD TORX DR 1/4-20X0.750 T27
(Superseded to 770135)

$4.49

$

In Stock, Qty 15

0

33

Ferris 5101640

SPACER, .38 X .50 X .50
(Superseded to 5101640YP)

$7.99

$

In Stock, only 2 left!

0

34

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

Note: (Qty: 2 - S/N: 2016861768 & Above)

$3.49

$

Usually ships in 2-12 days

0

35

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

Note: (Qty: 1 - S/N: 2016861768 & Above)

$4.49

$

In Stock, Qty 20+

0

36

Ferris 5412363A

BRACKET, SWITCH ENGAGEMENT - BLK

$6.99

$

Usually ships in 2-12 days

0

37

Ferris 5101274

SPACER, .26 X .50 X 1.00
(Superseded to 5101274FS)

$6.49

$

Usually ships in 2-12 days

0

38

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

39

Ferris 5025010X6

BOLT-1/4-20 X 3/4 GD5 CZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

40

Ferris 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$4.49

$

In Stock, Qty 5

0

41

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

Note: (Qty: 2 - S/N: 2016861768 & Above)

$4.49

$

In Stock, Qty 20+

0

42

Ferris 5025288

WASHER, 1/4 FENDER
(Superseded to 5025288YP)

$3.99

$

In Stock, Qty 11

0

43

Ferris 5025010X16

BOLT, 1/4-20 X 2", GD5
(Superseded to 5025010X16FS)

$3.99

$

Usually ships in 2-12 days

0

44

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

Note: (Qty: 3 - S/N: 2016861768 & Above)

$3.49

$

Usually ships in 2-12 days

0

45

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

46

Ferris 5104351

SPACER, .33 X 1.00 X .88, CZ
(Superseded to 5104351FS)

Note: (S/N: 2016861768 & Above)

$4.99

$

Usually ships in 2-12 days

0

47

Ferris 5025011X16

BOLT, 5/16-18 X 2 GD5
(Superseded to 5025011X16YP)

Note: (S/N: 2016861768 & Above)

$3.99

$

Usually ships in 2-12 days

0

48

Ferris 5025155

WASHER, 5/16" SAE

Note: (S/N: 2016861768 & Above)

$

$

Currently unavailable

49

Ferris 5104375

FLANGED BUSHING, 3/8IDX.63ODX.8125FL
(Superseded to 5104375YP)

Note: (S/N: 2016973574 & Above)

$5.99

$

Usually ships in 2-12 days

0

50

Ferris 5104374

SPRING,COMP,.645IDX8.00LGX.080WR,BLK E-C
(Superseded to 5104374FS)

Note: (S/N: 2016973574 & Above)

$6.49

$

Usually ships in 2-12 days

0

51

Ferris 703429

NUT, Wing, 5/16-18

Note: (S/N: 2017118254 & Above)

$4.49

$

Usually ships in 2-12 days

0

52

Ferris 5414183A

WELD, W35 CONTROL PIVOT, RH - BLK

Note: (S/N: 2017170235 & Above)

$113.99

$

Usually ships in 2-12 days

0

53

Ferris 5414184A

WELD, W35 CONTROL PIVOT, LH - BLK
(Superseded to 5414184AAFS)

Note: (S/N: 2017170235 & Above)

$117.99

$

Usually ships in 2-12 days

0

54

Ferris 5414411A

TAB, PIVOT, W35 - BLK

Note: (S/N: 2017170235 & Above)

$

$

Currently unavailable
