FW 35 (5901827) - Ferris FW35 Series 48" Walk-Behind Mower, 26hp Briggs & Stratton, Side-Discharge 48" Mower Deck - Housing, Covers, Spindles, and Blades Parts Diagram

FW35 Series 48" Walk-Behind Mower, 26hp Briggs & Stratton, Side-Discharge

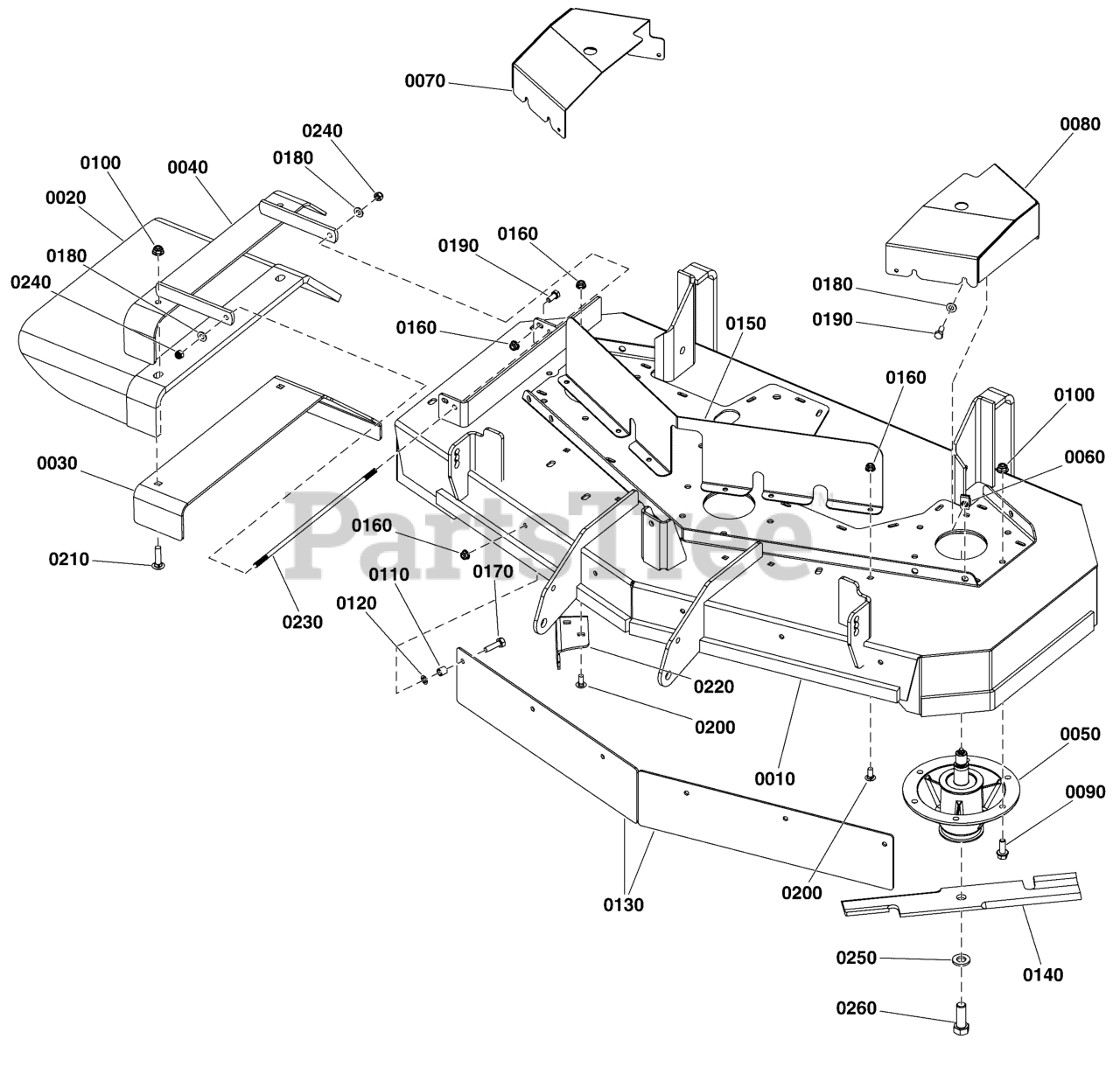

48" Mower Deck - Housing, Covers, Spindles, and Blades Parts Diagram

  • Title

0010

Ferris 5601218

DECK SHELL W/ DECALS, FW35-48SDCE

$1966.99

$

Usually ships in 2-12 days

0

0020

Ferris 5413498

CHUTE, RUBBER DISCHARGE CHUTE (5104441)

$165.99

$

Usually ships in 2-12 days

0

0030

Ferris 5419201A

SUPPORT, DISCHARGE CHUTE, 48, CE - BLK

$

$

Currently unavailable

0040

Ferris 5419051A

WELD, CHUTE MOUNT, 36/48, CE - BLK

$

$

Currently unavailable

0050

Ferris 5100993

SPINDLE ASSM, CAST IRON 8.0 - 6-BOLT
(Superseded to 5100993SM)

$219.99

$

Usually ships in 2-12 days

0

0060

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

0070

Ferris 5412493B

WELD, GUARD, FW35 48, RH - RED
(Superseded to 5412493BFS)

$231.99

$

Usually ships in 2-12 days

0

0080

Ferris 5412494B

WELD, GUARD, FW35 48, LH - RED
(Superseded to 5412494BFS)

$228.99

$

Usually ships in 2-12 days

0

0090

Ferris 5025390X8

BOLT, 3/8-16 X 1, FLANGE, GD 5, CZ
(Superseded to 5025390X8FS)

$3.49

$

Usually ships in 2-12 days

0

0100

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 15

0

0110

Ferris 5102148

SPACER, .33 X .50 X .50, YZ
(Superseded to 5102148YP)

$4.99

$

Usually ships in 2-12 days

0

0120

Ferris 5025498

5/16" PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

0130

Ferris 5412638B

BAFFLE, FRONT, FW35-48, REAR DISCHARGE - RED
(Superseded to 5412638BFS)

$33.99

$

Usually ships in 2-12 days

0

0140

Ferris 5101986S

BLADES, SET OF THREE (3); 16.25 X.25 X 2.5, 1 X 3.5

Note: (Set of 3 blades)

$

$

Currently unavailable

0150

Ferris 5419060B

PLATE, FRONT GUARD, FW35 48",SD CE - RED

$

$

Currently unavailable

0160

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0170

Ferris 5025055X10

BOLT, 5/16-18 X 1-1/4 GD5 TFL, CZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

0180

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0190

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

0200

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

0210

Ferris 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$3.99

$

In Stock, only 1 left!

0

0220

Ferris 5416920A

PLATE, DEFLECTOR - BLK

$

$

Currently unavailable

0230

Ferris 5042555

ROD, 5/16 X 13.75, TBE, CZ
(Superseded to 5042555SM)

$10.99

$

Usually ships in 2-12 days

0

0240

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 6

0

0250

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 12

0

0260

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0
