FW 45 (5901883) - Ferris FW45 Series 52" Walk-Behind Mower, 28hp Briggs & Stratton, Side-Discharge Engine Remote Oil Tank, Hoses, & Mount Group Parts Diagram

FW45 Series 52" Walk-Behind Mower, 28hp Briggs & Stratton, Side-Discharge

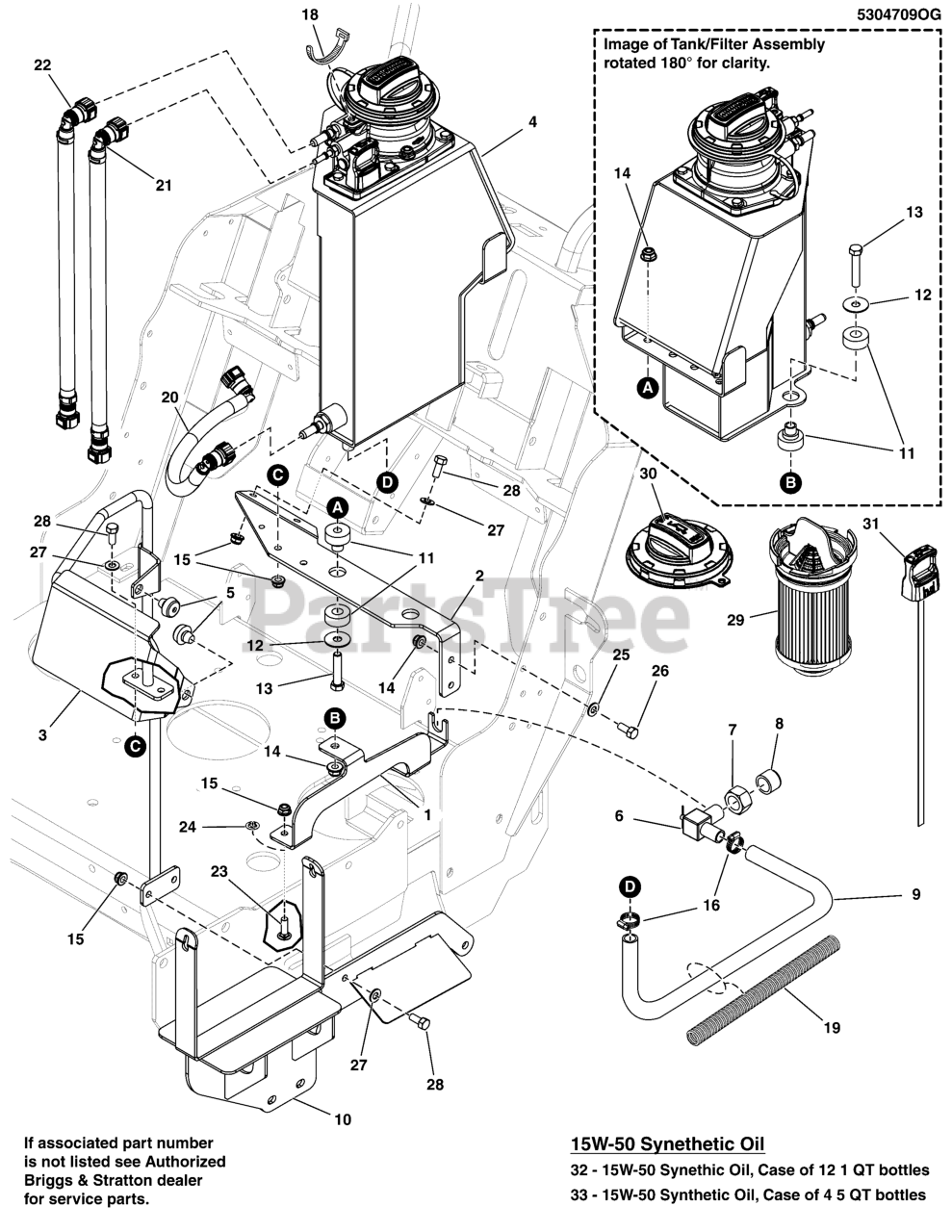

Engine Remote Oil Tank, Hoses, & Mount Group Parts Diagram

  • Title

1

Ferris 5420397AA

PLATE, LOWER TANK MOUNT, W45 - BLK
(Superseded to 5420397AAFS)

$24.99

$

Usually ships in 2-12 days

0

2

Ferris 5415327A

TANK MOUNT, TOP, W35 - BLK

$

$

Currently unavailable

3

Ferris 5415916A

WELD, TANK GUARD, W35 - BLK

$

$

Currently unavailable

4

Ferris 595945

TANK, Oil
(Superseded to 84006647)

Note: (Refer to Note: *)(S/N: 4001858852 and below)

$889.99

$

In Stock, only 1 left!

0

4

Ferris 84006647

TANK, OIL

Note: (Refer to Note: *)(S/N: 4001858853 and above)

$889.99

$

In Stock, only 1 left!

0

5

Ferris 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$8.49

$

In Stock, Qty 5

0

6

Ferris 5105177

VALVE, OIL DRAIN, M16X1.5 TO 1/2"
(Superseded to 84003076)

$48.99

$

Usually ships in 2-12 days

0

7

Ferris 5105318

NUT, HEX, M16-1.5, DAPCO 4071
(Superseded to 84003079)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5105317

OIL DRAIN CAP, OIL GUARD, DAPCO 4692
(Superseded to 84003078)

$9.99

$

Usually ships in 2-12 days

0

9

Ferris 5105492

HOSE, Formed, Oil Guard
(Superseded to 5105492FS)

$25.99

$

Usually ships in 2-12 days

0

10

Refer to: Electrical Group

$

$

Not available

11

Ferris 5023131

MOUNT, ISO, BOTTOM, RAD 5000Z-DIESEL
(Superseded to 84003075)

$28.99

$

In Stock, only 1 left!

0

12

Ferris 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$4.49

$

In Stock, Qty 12

0

13

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$4.49

$

In Stock, Qty 9

0

14

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

15

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5021392

CLAMP, #6 HOSE, STAINLESS
(Superseded to 5021392SM)

$4.99

$

In Stock, only 2 left!

0

18

TIE, Cable, Yellow 7.6"

$

$

Not available

19

Ferris 5050862X8

WIRE LOOM, 3/4 ID X 8.00" LG

$

$

Currently unavailable

20

Ferris 84006650

HOSE, OIL SUPPLY

Note: (Refer to Note: *)(S/N: 4001858852 and below)

$81.99

$

Usually ships in 2-12 days

0

20

Ferris 84006649

HOSE, OIL SUPPLY

Note: (Refer to Note: *)(S/N: 4001858853 and above)

$62.99

$

Usually ships in 2-12 days

0

21

Ferris 595943

HOSE, Oil Vent

Note: (Refer to Note: *)

$66.99

$

Usually ships in 2-12 days

0

22

Ferris 84006661

HOSE, OIL SCAVENGE

Note: (Refer to Note: *)

$61.99

$

Usually ships in 2-12 days

0

23

Ferris 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE, GD5, CZ
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

24

Ferris 5025498

5/16" PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

25

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

26

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$4.49

$

In Stock, only 4 left!

0

27

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

28

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 13

0

29

Ferris 84007094

FILTER, OIL

$34.99

$

In Stock, Qty 11

0

30

Ferris 595931

CAP, Oil Fill

$29.99

$

Usually ships in 2-12 days

0

31

Ferris 595934

DIPSTICK
(Superseded to 595603)

$18.99

$

In Stock, only 1 left!

0

32

Ferris 5105281

OIL, 15W-50, SYNTHETIC, CASE X 12- 1QT

$

$

Not available

33

Ferris 5105282

OIL, 15W-50, SYNTHETIC, CASE X 4- 5QT

$287.99

$

Usually ships in 2-12 days

0
