FW 45 (5901885) - Ferris FW45 Series 61" Walk-Behind Mower, 28hp Briggs & Stratton, Side-Discharge 61" Mower Deck Group - Pulleys, Belt, and Idler Arm S/N: 4001694244 and below Parts Diagram

FW45 Series 61" Walk-Behind Mower, 28hp Briggs & Stratton, Side-Discharge

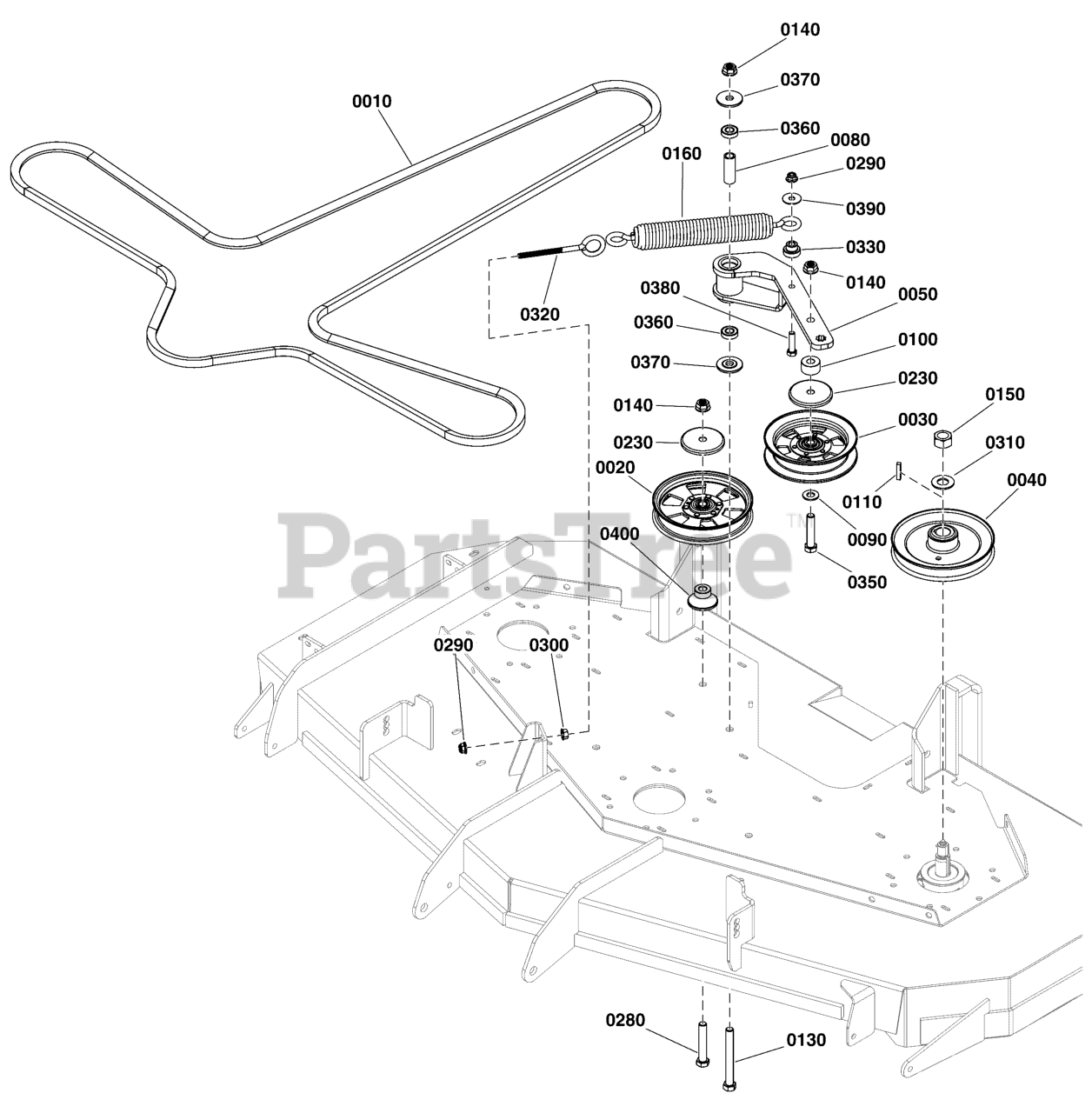

61" Mower Deck Group - Pulleys, Belt, and Idler Arm S/N: 4001694244 and below Parts Diagram

  • Title

0010

Ferris 5103872

BELT, 5V, 163.40EL, LG ARAMID, WRPD, RC
(Superseded to 5103675)

$148.99

$

Usually ships in 2-12 days

0

0020

Ferris 5104717

PULLEY, FLT IDLR, 6.0 X 1.0 X .50, CZ
(Superseded to 5104717YP)

$58.99

$

Usually ships in 2-12 days

0

0030

Ferris 5104716

PULLEY,IDLER,BACKSIDE,NOSEAM 6.25ODX.5ID
(Superseded to 5104716YP)

$59.99

$

In Stock, only 2 left!

0

0040

Ferris 5100700

PULLEY, 6.93 EOD X 25MM, SPLIT
(Superseded to 5100700SM)

$74.99

$

Usually ships in 2-12 days

0

0050

Ferris 5412371A

WELD, TENSION ARM, CUTTER DECK - BLK
(Superseded to 5412371AAFS)

$207.99

$

Usually ships in 2-12 days

0

0080

Ferris 5104172

SPACER, .505 X .75 X 2.085, CZ
(Superseded to 5104172FS)

$8.49

$

Usually ships in 2-12 days

0

0090

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, only 4 left!

0

0100

Ferris 5047142

SPACER, .52 X 1.25 X .70, PM, CZ
(Superseded to 5047142SM)

$8.99

$

Usually ships in 2-12 days

0

0110

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

Usually ships in 2-12 days

0

0130

Ferris 5025017X36

BOLT, 1/2-13 X 4-1/2" GD5 YZ
(Superseded to 5025017X36SM)

$6.49

$

Usually ships in 2-12 days

0

0140

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, only 4 left!

0

0150

Ferris 5025405

NUT, 3/4-16 Hex
(Superseded to 5025405SM)

$3.99

$

Usually ships in 2-12 days

0

0160

Ferris 5104166

SPRING, EXT, 1.5ODX12.25X.234WIRE BLK
(Superseded to 5104166YP)

$74.99

$

Usually ships in 2-12 days

0

0230

Ferris 5105145

SHIELD, BEARING, 1/2 ID X 2-7/8 OD, CZ
(Superseded to 5105145YP)

$4.49

$

Usually ships in 2-12 days

0

0280

Ferris 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 2 left!

0

0290

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, only 3 left!

0

0300

Ferris 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

0310

Ferris 5025406

WASHER, 3/4 BELLEVILLE CL/ZC
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

0320

Ferris 5021812

EYE BOLT, 3/8-16 X 6, 3THRD, 1EYE, CZ
(Superseded to 5021812SM)

$5.99

$

In Stock, only 2 left!

0

0330

Ferris 5102406

SPACER, .38 X 1.13 X .781 STEP, CZ
(Superseded to 5102406FS)

$15.99

$

Usually ships in 2-12 days

0

0350

Ferris 5025017X20

BOLT, 1/2-13 X 2-1/2" GD5 CZ
(Superseded to 5025017X20SM)

$5.49

$

In Stock, only 2 left!

0

0360

Ferris 7078243

BEARING, BALL, AXLE
(Superseded to 7078243YP)

$10.99

$

In Stock, only 2 left!

0

0370

Ferris 5103262

SPACER, IDLER ARM, 1/2, PM
(Superseded to 5103262YP)

$7.99

$

In Stock, only 2 left!

0

0380

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

0390

Ferris 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 1 left!

0

0400

Ferris 5103430

IDLER MOUNT
(Superseded to 5103430YP)

$10.99

$

In Stock, only 1 left!

0
