FW 45 (5901988) - Ferris FW45 Series 48" Walk-Behind Mower, 26hp Briggs & Stratton, Rear-Discharge Electrical Group Parts Diagram

FW45 Series 48" Walk-Behind Mower, 26hp Briggs & Stratton, Rear-Discharge

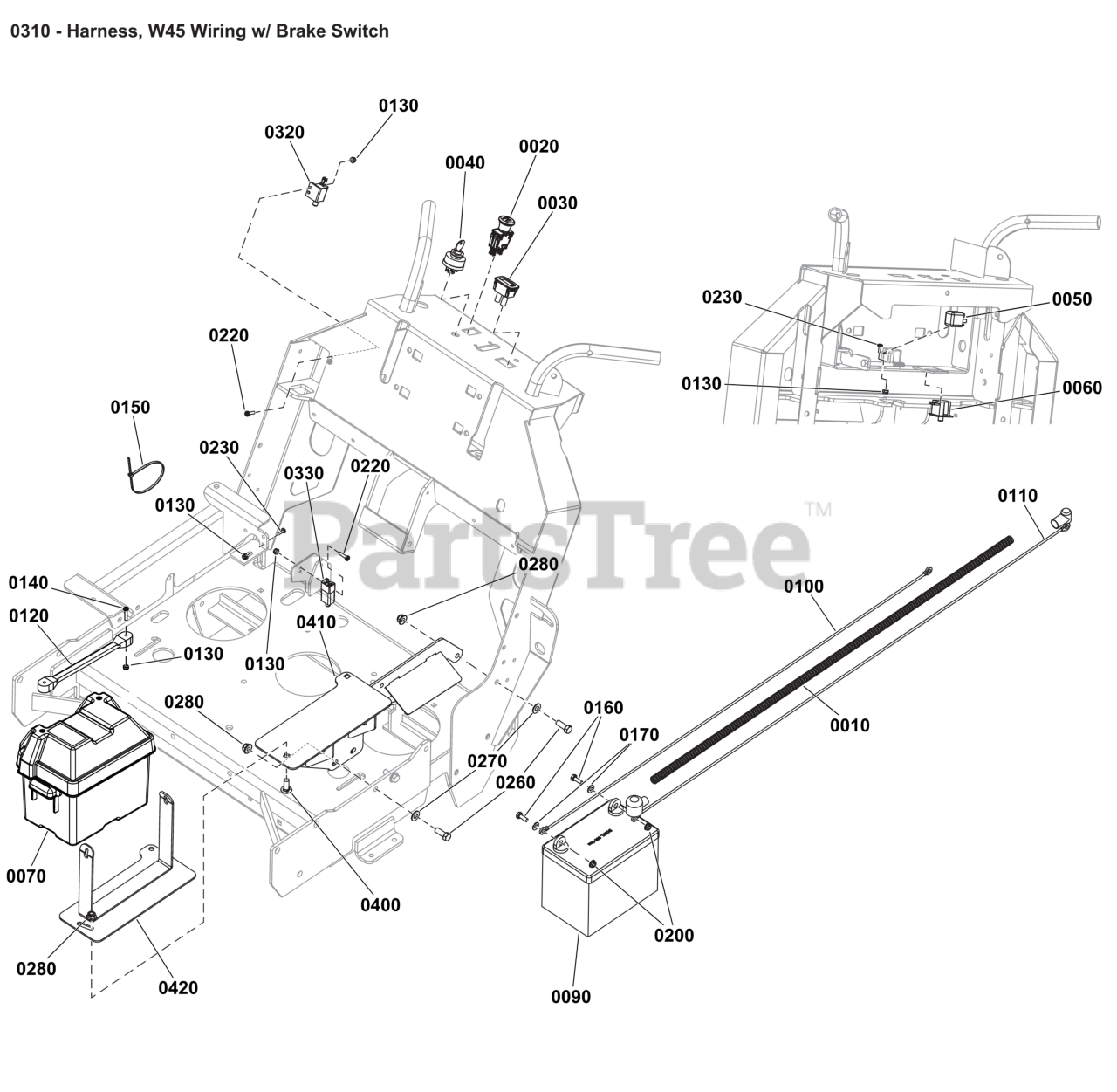

Electrical Group Parts Diagram

  • Title

0010

Ferris 5050927X39FS

WIRE, LOOM

$4.99

$

Usually ships in 2-12 days

0

0020

Ferris 5104697FS

SWITCH, PTO

$32.99

$

In Stock, only 2 left!

0

0030

Ferris 84008510

HOURMETER

$35.99

$

In Stock, only 2 left!

0

0040

Ferris 5020927FS

SWITCH, IGNITION

$34.99

$

In Stock, Qty 11

0

0050

Ferris 5021766SM

RELAY, 12V, 40A

$25.99

$

Usually ships in 2-12 days

0

0060

Ferris 5101280YP

SWITCH, LOW PROF, NC/

$32.99

$

In Stock, only 2 left!

0

0070

Ferris 5100688YP

BATTERY BOX, W/ DRAIN

$69.99

$

Usually ships in 2-12 days

0

0090

BATTERY, 11U1L, 350 CCA

$

$

Not available

0100

Ferris 5105301FS

CABLE, BATTERY, BLACK

$15.99

$

Usually ships in 2-12 days

0

0110

Ferris 5105300FS

CABLE, BATTERY, RED

$25.99

$

Usually ships in 2-12 days

0

0120

Ferris 5021670SM

STRAP, RUBBER

$14.99

$

In Stock, only 2 left!

0

0130

Ferris 5025271FS

NUT

$3.99

$

Usually ships in 2-12 days

0

0140

Ferris 5025270SM

SCREW, #10-24 X 1" RS

$3.49

$

Usually ships in 2-12 days

0

0150

Ferris 5021029SM

TIE WRAP, 11" Long

$

$

Not available

0160

Ferris 5025010X6SM

BOLT, 1/4-20 X 3/4" G

$3.99

$

In Stock, Qty 20+

0

0170

Ferris 84007033

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0200

Ferris 5025126FS

NUT

$4.49

$

Usually ships in 2-12 days

0

0220

Ferris 5025179X6SM

SCREW - #10-24

$7.49

$

Usually ships in 2-12 days

0

0230

Ferris 5025179X4SM

SCREW, #10-24 X 1/2" ROUND PHILLIPS
(Superseded to 1960392SM)

$3.99

$

Usually ships in 2-12 days

0

0260

Ferris 5025013X8SM

BOLT, 3/8-16 X 1" GD5

$3.99

$

In Stock, only 3 left!

0

0270

Ferris 5025156FS

WASHER

$3.49

$

Usually ships in 2-12 days

0

0280

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

0310

Ferris 5108762FS

HARNESS, WIRING

$197.99

$

Usually ships in 2-12 days

0

0320

Ferris 5021451SM

SWITCH, PLUNGER, N.O.

$11.99

$

In Stock, only 4 left!

0

0330

Ferris 1717050SM

SWITCH-PUSH BUTT

$18.99

$

In Stock, only 4 left!

0

0400

Ferris 703815

BOLT, RD SQ 3/8-16X1

$4.49

$

In Stock, Qty 6

0

0410

Ferris 84008373

WELD, MNT BATTERY LOWER, OG, W45 - BLK

$

$

Currently unavailable

0420

Ferris 84008374

WELD, MNT BATTERY UPPER, OG, W45 - BLK

$

$

Currently unavailable
