FW 45 (5901988) - Ferris FW45 Series 48" Walk-Behind Mower, 26hp Briggs & Stratton, Rear-Discharge Engine and PTO Group Parts Diagram

FW45 Series 48" Walk-Behind Mower, 26hp Briggs & Stratton, Rear-Discharge

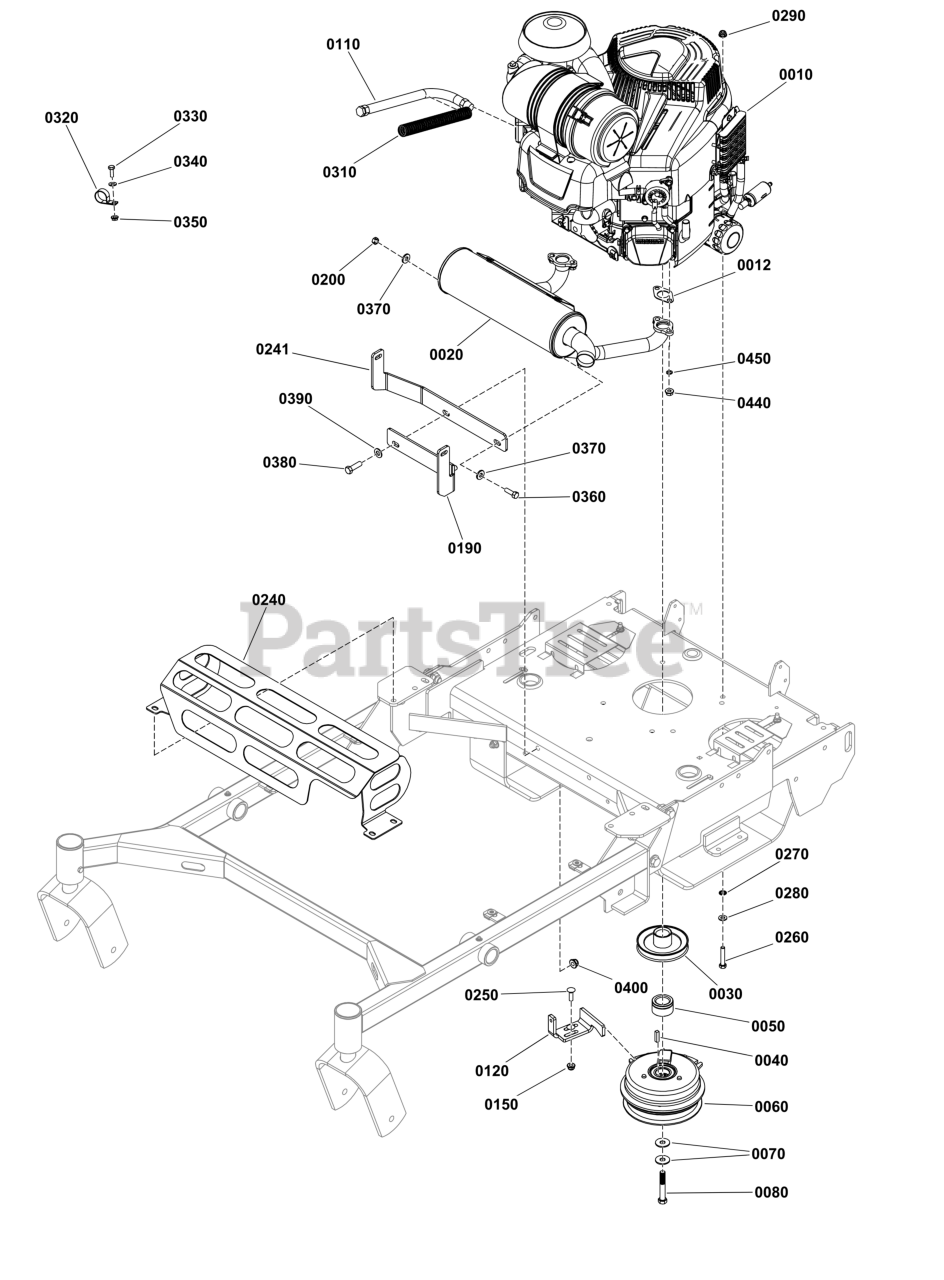

Engine and PTO Group Parts Diagram

  • Title

0010

ENGINE, Briggs & Stratton, 49R977-0001-G1

Note: (Refer to Note:*)

$

$

Not available

0012

Ferris 273485

GASKET, EXHAUST
(Superseded to 690970)

$4.99

$

In Stock, Qty 20+

0

0020

Ferris 5104306

MUFFLER, 26/28, B&S VANG, TWR/WALK
(Superseded to 5104306FS)

$284.99

$

Usually ships in 2-12 days

0

0030

Ferris 5104236

PULLEY, CRANKSHAFT, 1.125ID X 4.50OD, OS
(Superseded to 5104236FS)

$44.99

$

Usually ships in 2-12 days

0

0040

Ferris 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, Qty 8

0

0050

Ferris 5047033

SPACER, 1.13 X 1.75 X 1.03, CZ
(Superseded to 5047033SM)

$13.99

$

Usually ships in 2-12 days

0

0060

Ferris 5105090

CLUTCH WARNER 200 FT-LB 1.13 X 6.323
(Superseded to 5105090YP)

$456.99

$

In Stock, only 1 left!

0

0070

Ferris 5025585

BELLEVILLE WASHER, 1.1875 X .442 X .098
(Superseded to 5025585YP)

$4.49

$

In Stock, only 4 left!

0

0080

Ferris 5102865

BOLT, CRANKSHAFT, 7/16 X 2-3/4, PATCH, CZ
(Superseded to 5102865YP)

$5.49

$

Usually ships in 2-12 days

0

0110

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

0120

Ferris 5412326AA

PLATE, CLUTCH ANCHOR - BLK

$

$

Currently unavailable

0150

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0190

Ferris 5415276AA

PLATE, MUFFLER SUPPORT, LH, W35 - BLKK
(Superseded to 5415276AAFS)

$18.99

$

Usually ships in 2-12 days

0

0200

Ferris 80003675

NUT, 5/16-1/8, HEX, CNTR LK, ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

0240

Ferris 5412407B

WELD, CE MUFFLER GUARD, FW35 - RED
(Superseded to 5412407BFS)

$104.99

$

Usually ships in 2-12 days

0

0241

Ferris 5415277AA

PLATE, MUFFLER SUPPORT, RH, W35 - BLK
(Superseded to 5415277AAFS)

$20.99

$

Usually ships in 2-12 days

0

0250

Ferris 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE, GD5, CZ
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

0260

Ferris 5025025X14

BOLT, 5/16-24 X 1-3/4, GD8, PHOS
(Superseded to 5025025X14YP)

$4.49

$

Usually ships in 2-12 days

0

0270

Ferris 5025188

WASHER, 5/16" Internal Tooth Lock
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

0280

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0290

Ferris 5025616

NUT, 5/16-24, TOP LOCK FLANGE, GD8 PHOS
(Superseded to 5025616YP)

$3.99

$

Usually ships in 2-12 days

0

0310

Ferris 5050862X8

WIRE LOOM, 3/4 ID X 8.00" LG

$

$

Currently unavailable

0320

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

0330

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

0340

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0350

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

0360

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

0370

Ferris 5025292

WASHER, 5/16 GRADE 9, FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, only 3 left!

0

0380

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 2 left!

0

0390

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0400

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0440

Ferris 810086

NUT
(Superseded to 690941)

$4.99

$

In Stock, Qty 7

0

0450

Ferris 5023217

WASHER, Light Lock, 5/16
(Superseded to 5023217SM)

$3.49

$

Usually ships in 2-12 days

0
