FW 45 (5901988) - Ferris FW45 Series 48" Walk-Behind Mower, 26hp Briggs & Stratton, Rear-Discharge Motion Control Group - Steering Levers Parts Diagram

FW45 Series 48" Walk-Behind Mower, 26hp Briggs & Stratton, Rear-Discharge

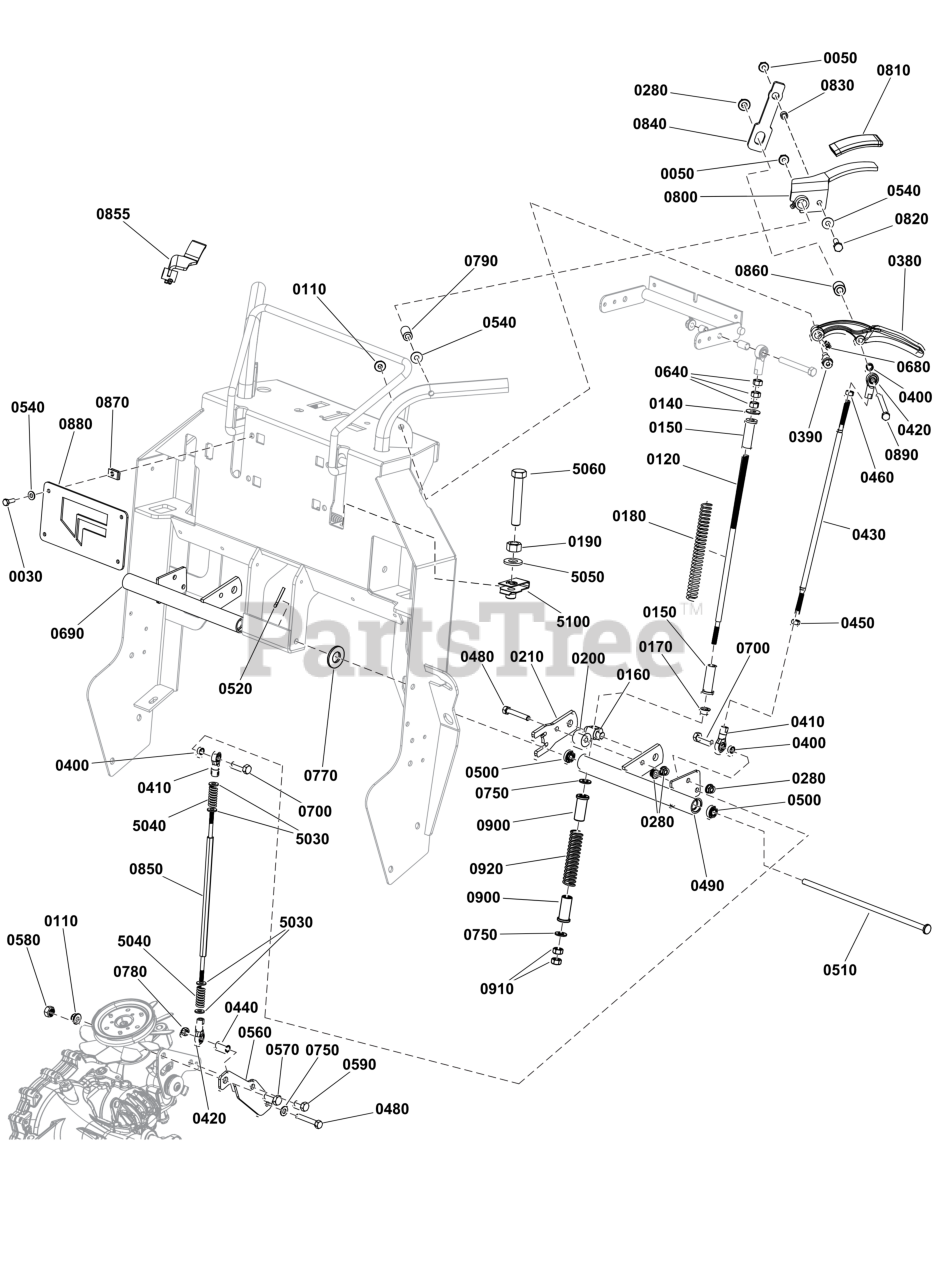

Motion Control Group - Steering Levers Parts Diagram

  • Title

0030

Ferris 5025010X6SM

BOLT, 1/4-20 X 3/4" G

$3.99

$

In Stock, Qty 20+

0

0050

Ferris 5025391FS

NUT

$4.49

$

In Stock, Qty 7

0

0110

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

0120

Ferris 5104165FS

ROD

$78.99

$

Usually ships in 2-12 days

0

0140

Ferris 5025401YP

WASHER, 3/8 USS

$4.49

$

In Stock, Qty 8

0

0150

Ferris 5104375YP

BUSHING, FLANGED, 3/8

$5.99

$

Usually ships in 2-12 days

0

0160

Ferris 5103022FS

TRUNNION

$35.99

$

Usually ships in 2-12 days

0

0170

Ferris 5102773FS

BUSHING

$3.99

$

Usually ships in 2-12 days

0

0180

Ferris 5104374FS

SPRING, Compression

$6.49

$

Usually ships in 2-12 days

0

0190

Ferris 5025034SM

NUT, 3/8-16 HEX
(Superseded to 703577)

$4.49

$

In Stock, Qty 11

0

0200

Ferris 5104351FS

SPACER

$4.99

$

Usually ships in 2-12 days

0

0210

Ferris 5414411AAFS

PIVOT

$7.99

$

Usually ships in 2-12 days

0

0280

Ferris 5025392FS

NUT
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0380

Ferris 5102556AAFS

HANDLE

$40.99

$

Usually ships in 2-12 days

0

0390

Ferris 5109888FS

BOLT

$8.49

$

Usually ships in 2-12 days

0

0400

Ferris 5102463YP

SPACER, .33 X .50X.25

$5.99

$

In Stock, only 4 left!

0

0410

Ferris 5104494YP

BALL JOINT 5/16-24 LH

$19.99

$

In Stock, only 2 left!

0

0420

Ferris 5104493YP

BALL JOINT 5/16-24 RH

$19.99

$

In Stock, only 2 left!

0

0430

Ferris 5104159FS

ROD

$9.99

$

Usually ships in 2-12 days

0

0440

Ferris 84008514

SPACER (.325 X .496 X 1.000)

$

$

Currently unavailable

0450

Ferris 5023212SM

NUT, 5/16-24 HEX, LH

$3.49

$

In Stock, only 3 left!

0

0460

Ferris 5025033FS

NUT

$3.49

$

Usually ships in 2-12 days

0

0480

Ferris 5025011X16YP

BOLT
(Superseded to 703867)

$4.99

$

In Stock, only 3 left!

0

0490

Ferris 5414184AAFS

PIVOT

$117.99

$

Usually ships in 2-12 days

0

0500

Ferris 5102003YP

BEARING, .375ID

$9.49

$

Usually ships in 2-12 days

0

0510

Ferris 5104171FS

ROD

$11.99

$

Usually ships in 2-12 days

0

0520

Ferris 5025203X10SM

PIN, COTTER, 1/8" X 1

$3.99

$

In Stock, only 2 left!

0

0540

Ferris 84007033

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0560

Ferris 84007883

MOUNT

$9.49

$

Usually ships in 2-12 days

0

0570

Ferris 5025015X6SM

BOLT, 7/16-14

$4.49

$

In Stock, only 1 left!

0

0580

Ferris 5025044SM

NUT, 7/16-14 HEX

$4.49

$

In Stock, only 1 left!

0

0590

Ferris 5025013X6SM

BOLT, 3/8-16 X 3/4" G

$3.99

$

Usually ships in 2-12 days

0

0640

Ferris 5025035SM

NUT, 3/8-24 HEX
(Superseded to 703895)

$4.49

$

In Stock, Qty 20+

0

0680

Ferris 5020095SM

GREASE FITTING, 1/4-2

$4.49

$

Usually ships in 2-12 days

0

0690

Ferris 5414183AA

WELD, W35 CONTROL PIVOT, RH - BLK

$

$

Currently unavailable

0700

Ferris 5025055X10YP

BOLT, 5/16-18 X 1-1/4

$3.49

$

In Stock, only 2 left!

0

0750

Ferris 703350

WASHER

$4.49

$

In Stock, Qty 10

0

0770

Ferris 5025156FS

WASHER

$3.49

$

Usually ships in 2-12 days

0

0780

Ferris 5025057FS

NUT

$3.99

$

Usually ships in 2-12 days

0

0790

Ferris 5100832FS

SLEEVE

$6.49

$

Usually ships in 2-12 days

0

0800

Ferris 5408616AA

WELD, THUMB CONTROL, LH - BLK

$

$

Currently unavailable

0810

Ferris 5103457FS

GRIP

$4.49

$

Usually ships in 2-12 days

0

0820

Ferris 5025010X8SM

BOLT, 1/4-20 X 1", GD

$3.99

$

In Stock, Qty 16

0

0830

Ferris 5102813FS

SPACER

$15.99

$

Usually ships in 2-12 days

0

0840

Ferris 5408615AAFS

CONTROL, THUMB

$5.99

$

Usually ships in 2-12 days

0

0850

Ferris 5109457FS

ROD

$15.99

$

Usually ships in 2-12 days

0

0855

Ferris 5408617AAFS

CONTROL, Thumb

$55.99

$

Usually ships in 2-12 days

0

0860

Ferris 5103225FS

SPACER

$10.99

$

Usually ships in 2-12 days

0

0870

Ferris 5022665SM

BODY CLIP, 1/4-20 X 1

$3.49

$

Usually ships in 2-12 days

0

0880

Ferris 5422273AA

PLATE, FRONT CE GUARD - BLK

$

$

Currently unavailable

0890

Ferris 5025011X24SM

BOLT, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

0900

Ferris 5104161FS

BUSHING

$13.99

$

Usually ships in 2-12 days

0

0910

Ferris 5025032SM

NUT, 5/16-18 HEX

$3.49

$

Usually ships in 2-12 days

0

0920

Ferris 5104279FS

SPRING, COMPRESSION

$10.99

$

Usually ships in 2-12 days

0

5030

Ferris 5025292SM

WASHER, 5/16" GD.9 FL

$4.49

$

In Stock, Qty 11

0

5040

Ferris 5021773FS

SPRING, COMPRESSION

$10.99

$

Usually ships in 2-12 days

0

5050

Ferris 5025293SM

WASHER, 3/8"

$4.49

$

In Stock, Qty 8

0

5060

Ferris 5025058X18YP

BOLT

$7.99

$

In Stock, only 1 left!

0

5100

Ferris 5022649FS

CLIP

$4.99

$

Usually ships in 2-12 days

0
